TE Connectivity Solistrand Uninsulated Ring Terminal M12 Stud Size 16 AWG 14 AWG Wire Size 321165

Free Delivery in India | Lowest Global Shipping Charges

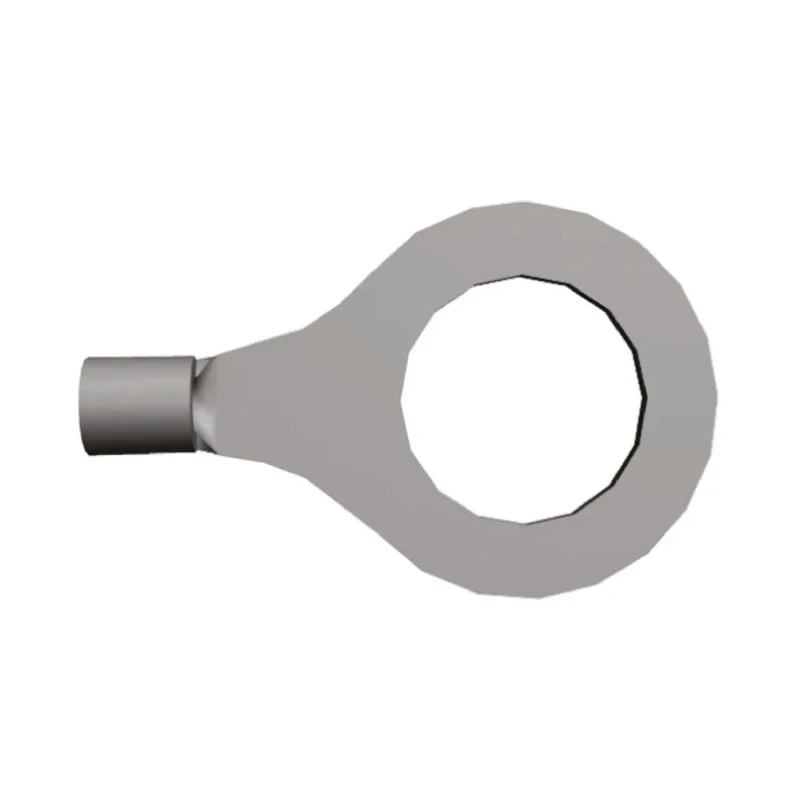

TE Connectivity Solistrand Uninsulated Ring Terminal M12 Stud Size 16 AWG 14 AWG Wire Size 321165

Name: TE Connectivity Solistrand Uninsulated Ring Terminal M12 Stud Size 16 AWG 14 AWG Wire Size 321165
Brand: TE Connectivity
SKU: 205516
Price: 1.64 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
THICKNESS	0.79mm
Model	321165
Insulation	Uninsulated
Overall Length	32.28mm
Contact Material	Copper
Series	Solistrand
Maximum Operating Temperature	170°C
Standards/Approvals	RoHS
Contact Plating	Tin
Minimum Wire Size mm²	1mm²
Maximum Wire Size mm²	2.6mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Outer Ring Diameter	19.05mm
Inner Ring Diameter	13.08mm
Stud Size	M12

Key Features

Constructed of fine grade copper for optimal electrical conductivity and performance.
Electro tin plated finish for enhanced corrosion resistance.
Robust design suitable for harsh industrial environments.
Brazed seams increase mechanical strength and barrel durability.
Dimpled and serrated inner barrel for superior tensile strength and electrical contact.
Bell-shaped barrel entrance allows quick and easy wire insertion, reducing installation time.
Rated for maximum operating temperature of 170°C for standard industrial use.
Compatible with SOLISTRAND crimping tools for optimal mechanical and electrical performance.

Product Description

TE Connectivity 321165 Solistrand uninsulated ring terminal is designed for terminating solid and stranded wires ranging from 16 AWG to 14 AWG. This ring terminal features an M12 stud size and is constructed from fine grade copper with an electro tin plating to ensure excellent electrical conductivity and corrosion resistance.

The robust design of this ring terminal makes it highly suitable for use in demanding industrial and electrical environments. Brazed seams in the closed barrel enhance mechanical strength and durability. The inner surface of the barrel is serrated to maximize tensile strength and electrical contact after crimping. Its bell-shaped barrel entrance facilitates easier wire insertion, accelerating installation processes.

Rated to withstand temperatures up to 170°C, this uninsulated ring terminal can be reliably used in various industrial sectors including materials handling, heavy machinery, switchgear, telecommunications, and appliance manufacturing.

High conductivity copper material with tin plating for corrosion protection. Robust industrial-grade design ideal for harsh environments. Brazed seams provide increased barrel strength and durability. Dimpled and serrated barrel increases tensile strength and electrical performance.

Bell-shaped mouth allows fast wire insertion, saving installation time. Maximum operating temperature rating of 170°C. Compatible with SOLISTRAND crimping tools for reliable crimping. Wide industrial application including motors, transformers, and power supplies.

This TE Connectivity SOLISTRAND uninsulated ring terminal offers a durable and efficient solution for electrical wire termination needs across industrial, manufacturing, and electrical sectors. For related Ring Terminals and power connectors, explore EnvMart's Electronics & Electricals category.
