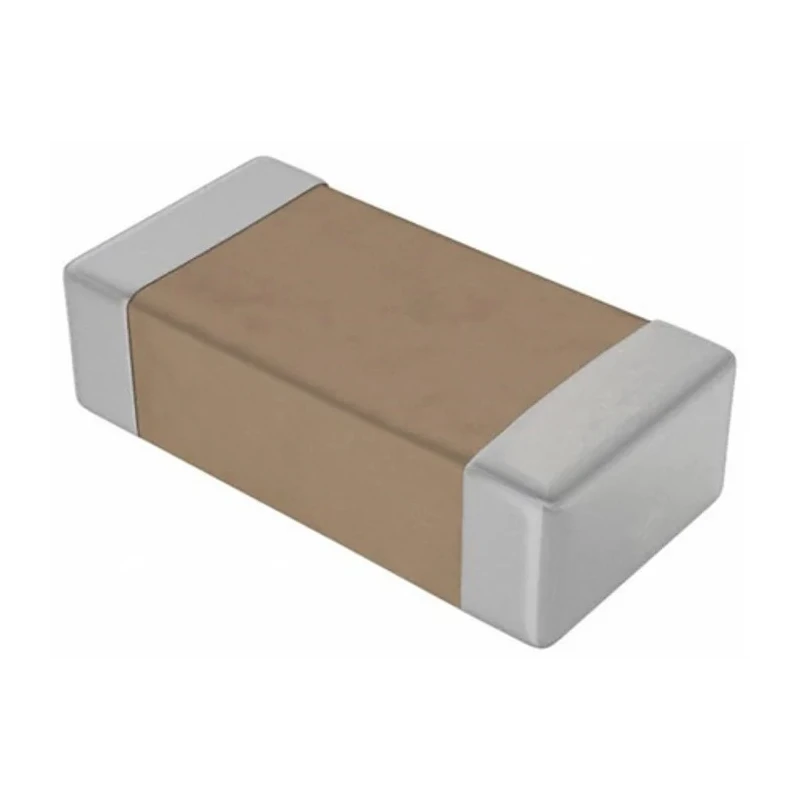

KYOCERA AVX 10 nF 100V DC ±10% Multilayer Ceramic Capacitor, Surface Mount, X7R Dielectric 12061C103KAZ2A

KYOCERA AVX 12061C103KAZ2A is a 10 nF multilayer ceramic capacitor engineered with a stable X7R dielectric material providing reliable operation in various industrial electronics environments. It operates at a voltage rating of 100 V DC with a capacitance tolerance of ±10%, making it suitable for applications where moderate voltage stability and capacitance accuracy are required.

Housed in a 1206 package case, the capacitor’s physical dimensions are 3.2 mm in length, 1.6 mm in width, and 1.8 mm in height, allowing compact integration into surface mount technology (SMT) circuits. The surface mount termination ensures easy placement and soldering on printed circuit boards.

This component supports a wide operating temperature range from -55°C to 125°C, making it suitable for demanding temperature conditions found in industrial, telecommunications, automotive, and consumer electronics applications. Its Class II suppression characteristics are ideal for decoupling, filtering, and bypassing in electronic circuits requiring stable ceramic capacitor performance.

The KGM series capacitors are commercial-grade MLCCs available in standard reel packaging to facilitate automated assembly lines and reduce handling time. The X7R dielectric is recognized for balancing capacitance stability with temperature and voltage variations, widely used in power supply and signal conditioning circuits.

This product complies with general industry standards but does not include specific automotive certification and is intended for general commercial use. Reel packaging supports efficient volume manufacturing and inventory management for electronic component distributors and manufacturers.

Utilizes temperature stable X7R dielectric suitable for industrial electronic use. Compact 1206 case size with dimensions 3.2 mm length, 1.6 mm width, and 1.8 mm height. Capable of operating in temperatures ranging from -55°C to 125°C.

Offers Class II suppression characteristics meeting diverse electronic circuit needs. Packaged on reels for efficient assembly and handling during manufacturing processes. Features surface mount termination type suitable for modern PCB designs.

Series designation is KGM, representing standard commercial grade performance. Designed for broad voltage range applications up to 100 V DC in power and signal circuits.

Ideal for electronic manufacturing, telecommunications equipment, automotive electronics (excluding specific automotive grade applications), consumer devices, and general-purpose industrial circuitry requiring stable ceramic capacitors with moderate voltage and capacitance tolerance specifications.
