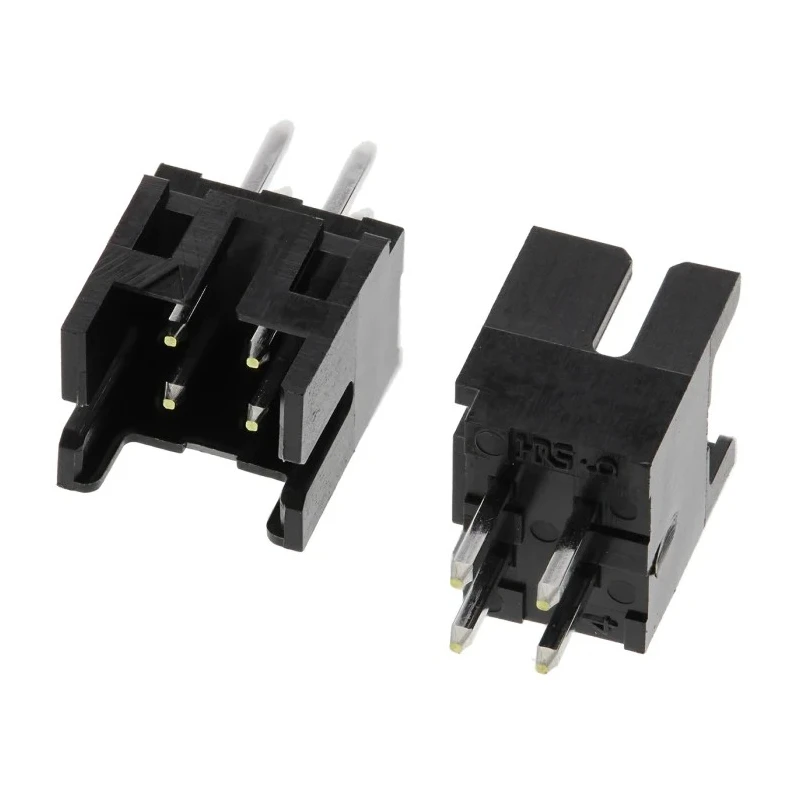

Hirose DF11 Series Straight Through Hole PCB Header, 4 Contacts, 2 mm Pitch, 2 Row, Shrouded DF11

Hirose DF11 series straight through hole PCB header connector, model DF11, provides a compact and reliable 2 mm pitch design with 4 contacts arranged in 2 rows. This shrouded male header connector features a double row configuration in a depth less than 5 mm, enabling significant space savings on PCB layouts. It is ideal for applications that require multiple signals with a small footprint, including digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement instruments.

The robust four-wall shrouded housing is made of polyamide material, which offers excellent mechanical strength and electrical insulation. Guide ribs in the connector housing prevent mismating and twisting during assembly. A locking mechanism secures the header to the mating connector housing, ensuring stable and durable connections in demanding environments. The gold-plated brass contacts provide excellent conductivity and corrosion resistance, while the through hole mounting type ensures strong PCB retention and solder joint reliability.

Rated for a current of 2A and voltage up to 30V, this connector performs reliably within an operating temperature range of -30°C to 85°C. Its compact size and versatile board-to-board or wire-to-board connector system make it suitable for a wide range of industrial, electronic, and commercial applications.

Compact double row design fits in space of single row connector. Shrouded housing with guide ribs prevents incorrect insertion and twisting. Locking mechanism ensures secure mating connection. Gold plated brass contacts provide reliable conductivity.

Suitable for board-to-board and wire-to-board applications. Through hole mount type ensures robust PCB retention. Operating temperature range from -30°C to 85°C. Rated voltage 30V and current 2A for reliable electrical performance.

Polyamide housing provides mechanical stability.
