Hirose DF11 Series Straight Through Hole PCB Header 8 Contacts 2 mm Pitch 2 Row Shrouded DF11

Free Delivery in India | Lowest Global Shipping Charges

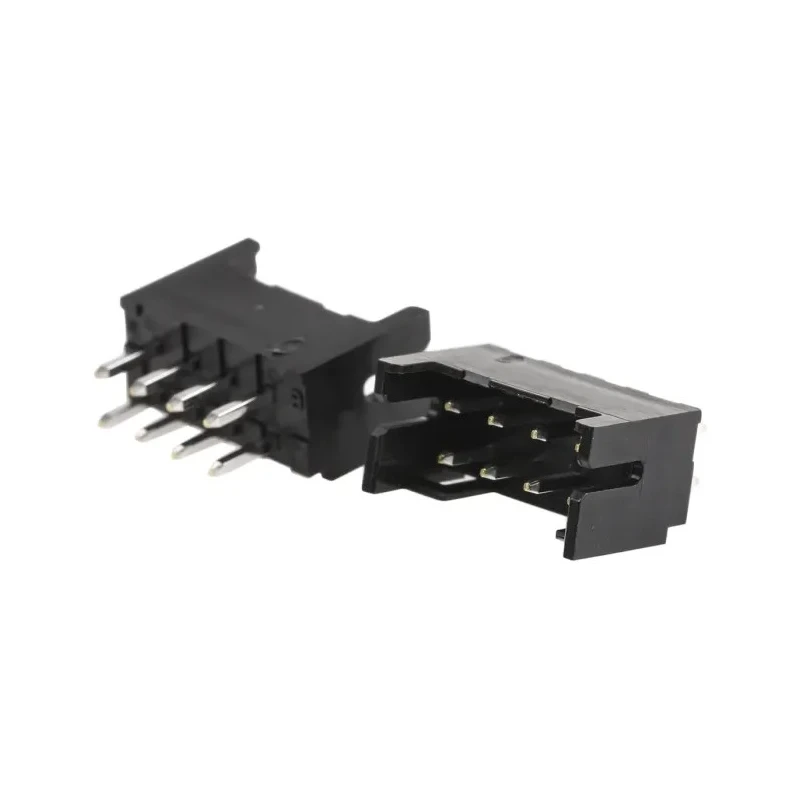

Hirose DF11 Series Straight Through Hole PCB Header 8 Contacts 2 mm Pitch 2 Row Shrouded DF11

Name: Hirose DF11 Series Straight Through Hole PCB Header 8 Contacts 2 mm Pitch 2 Row Shrouded DF11
Brand: Hirose
SKU: 204728
Price: 0.97 USD
Availability: InStock



Category PCB Connectors & Wire Housings Brand Hirose Condition New

Specifications

Country of Origin	India
Voltage	30V
Brand	Hirose
Orientation	Straight
Current	2A
Model	DF11
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	DF11
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board

Key Features

Compact double row design saves space with less than 5 mm depth.
Shrouded housing with guide ribs prevents incorrect insertion and twisting.
Gold-plated brass contacts ensure reliable electrical conductivity.
Suitable for both board-to-board and wire-to-board connector systems.
Through hole mount type ensures strong mechanical connection on PCB.
Operating temperature range from -30°C to 85°C.
Supports 2 A current rating and up to 30 V voltage.
Robust locking mechanism for secure mating connection.

Product Description

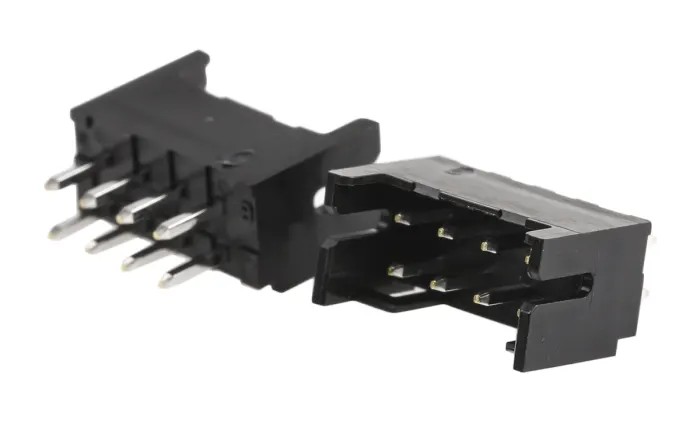

Hirose DF11 Series straight through hole PCB header DF11 is a compact 2.00 mm pitch double row connector with 8 male contacts, designed for space-saving PCB applications.

This connector features a shrouded polyamide housing with guide ribs and a robust locking mechanism to prevent incorrect insertion and ensure secure mating with corresponding connector housings or sockets.

The brass contacts are gold plated, providing excellent conductivity and resistance to corrosion, suitable for both board-to-board and wire-to-board applications via through hole mounting.

Operating reliably at currents up to 2 A and voltages up to 30 V, withstanding temperatures from -30°C to 85°C, this PCB header is suitable for various electronic devices including digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement instruments.

The compact design achieves a double row contact configuration within 5 mm depth, saving PCB space compared to single row solutions. Metal fittings add secure PCB retention and prevent solder peeling, enhancing durability.

Compact double row design saves space with less than 5 mm depth. Shrouded housing with guide ribs prevents incorrect insertion and twisting. Gold-plated brass contacts ensure reliable electrical conductivity. Suitable for both board-to-board and wire-to-board connector systems.

Through hole mount type ensures strong mechanical connection on PCB. Operating temperature range from -30°C to 85°C. Supports 2 A current rating and up to 30 V voltage. Robust locking mechanism for secure mating connection.

Ideal for portable electronic devices and digital equipment. This Hirose DF11 Series PCB header connector offers reliable performance in industrial, consumer electronics, telecommunications, and automotive electronics applications.
