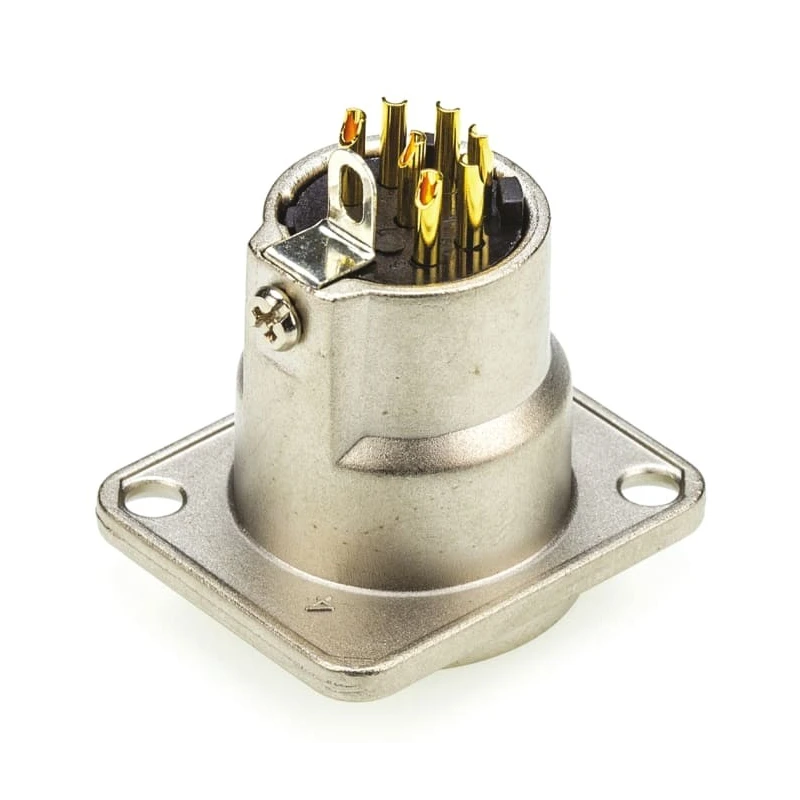

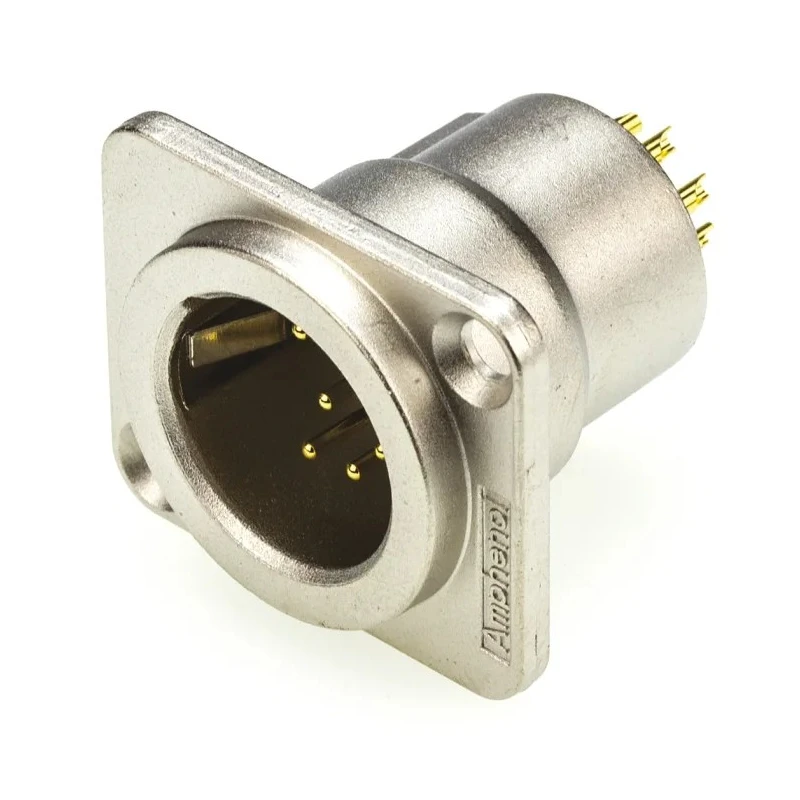

Amphenol Industrial Panel XLR Connector, Straight, 7 Way, Male, 133V, 5A, Gold Plating AC7MDZ
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 133V |
| Brand | Amphenol Industrial |
| Colour | Silver |
| Orientation | Straight |
| Current | 5A |
| Length | 32.1mm |
| Model | AC7MDZ |
| Mount Type | Panel |
| Housing Material | Zinc Alloy |
| Contact Material | Brass |
| Series | AC Z |
| Termination Type | Solder |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -25°C |
| Contact Plating | Gold |
| Number of Contacts | 7 |
| Contact Gender | Male |
| Connector Gender | Male |
Key Features
- The connector is designed for panel mounting with a straight orientation.
- It has 7 contact points providing stable connectivity in audio and industrial applications.
- Gold plating on contact enhances corrosion resistance and signal integrity.
- Constructed with zinc alloy housing and brass contacts for mechanical strength.
- Rated operating temperature ranges from -25°C to 75°C, suitable for various environmental conditions.
- Termination is by soldering, ensuring secure electrical connections.
- Positive latch locking system prevents accidental disconnection.
- Designed as part of the AC Z series of D type chassis connectors.
Product Description
Amphenol Industrial AC7MDZ Panel XLR Connector is a high-quality, straight orientation connector with a 7 way male contact configuration rated at 133V and 5A. Its construction includes a zinc alloy housing and gold-plated brass contacts which are critical for durability and reliable electrical connections in industrial, audio, and power distribution applications.
This connector is designed for panel mounting and offers solder bucket terminations enabling secure, soldered electrical installations. The operating temperature range from -25°C to 75°C ensures performance under a variety of environmental conditions.
The connector features a positive latch lock system that prevents accidental disconnects, making it suitable for industrial and professional audio environments requiring sustained connection integrity. Its compact 32.1 mm length makes it adaptable for installations with space constraints.
AC Z series D type chassis connectors like the AC7MDZ are engineered for front or rear mounting with a common panel cutout, allowing flexibility in system design. The connector is panel mount type with straight orientation and male gender configuration.
Gold plated contacts provide excellent corrosion resistance and signal conductivity. Zinc alloy housing offers mechanical protection and robustness. 7 contact points support multi-pin connections for complex wiring needs.
Solder termination allows reliable and durable electrical junctions. Operating temperatures from -25°C to 75°C cater to a wide range of industrial applications. Positive latch ensures connection security under mechanical stress.
Manufactured in China with adherence to quality manufacturing processes.
This panel XLR Connector is ideal for electronics manufacturing, industrial control systems, audio and video equipment assemblies, and other applications requiring high-quality, durable connectors.
Explore EnvMart's Electronics & Electricals category for more industrial-grade connectors from Amphenol Industrial and trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Amphenol Industrial Panel XLR Connector is rated for 133V.
This model has a current rating of 5A.
It features a zinc alloy housing and brass contacts with gold plating.
The operating temperature range is from -25°C to 75°C.
Termination is achieved through soldering, ensuring secure electrical connections.
This connector has a length of 32.1 mm.
It has 7 contact points, providing stable connectivity.
It is designed for panel mounting with a straight orientation.
It includes a positive latch locking system to prevent accidental disconnection.
It is suitable for industrial, audio, and power distribution applications.
This connector is part of the AC Z series of D type chassis connectors.
It is manufactured in China.
