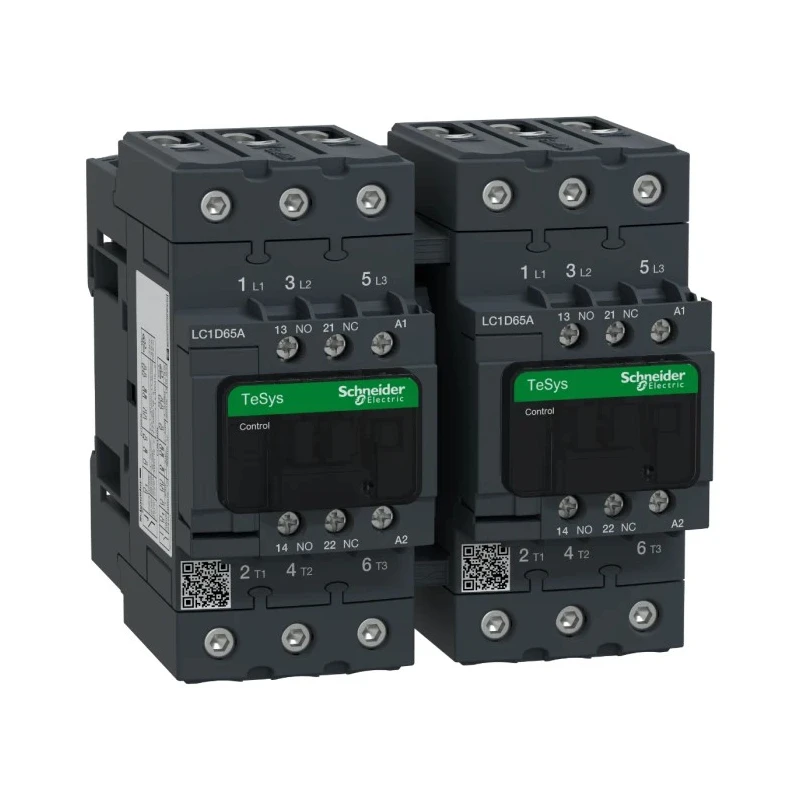

Schneider Electric LC2D Contactor, 230V AC Coil, 3-Pole, 65A, 30kW Power Rating, 3 NO, 690V AC LC2D65AP7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 132mm |
| Model | LC2D65AP7 |
| Depth | 142mm |
| Width | 165mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 65A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 65A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
Key Features
- Equipped with 3 normally open (NO) main contacts and 2NO+2NC auxiliary contacts.
- Designed for motor control, resistive load, and reversing functions.
- Power rating of 30kW at 400V AC with operational current of 65A AC-3.
- Compact design with DIN rail mounting, dimensions 165mm width, 142mm depth, 132mm length.
- Supports control circuit voltage of 230V AC at 50/60 Hz frequency.
- Mechanical interlock and pre-wired reversing circuit provide high safety and reliability.
- Certified by multiple standards including CCC, CSA, EAC, IEC, RoHS, and UL.
- High electrical durability, rated for 1.6 million mechanical cycles at 65A AC-3 440V.
Product Description
Schneider Electric LC2D65AP7 is a high-performance TeSys Deca reversing contactor designed for reliable motor control and resistive load applications. It features a robust 3-pole, 3 normally open (NO) configuration with a 230V AC coil suitable for 50/60Hz operation, allowing versatile use in diverse electrical automation systems.
Rated for 65A contact current and a power rating of 30kW at 400V AC, this contactor delivers dependable performance with operational currents up to 65A AC-3. Its design includes 2NO and 2NC auxiliary contacts providing flexible control options and integration with safety systems, utilizing mirror certified NC contacts.
The compact contactor measures 165mm in width, 142mm in depth, and 132mm in length, mounting easily on DIN rails or fixed with screws. It is engineered to operate efficiently within an ambient temperature range from -5°C to 60°C. The device offers a mechanical interlock with pre-wired reversing circuits for enhanced operational safety without needing electrical interlocking.
Schneider Electric's EverLink BTR screw connectors provide stable, constant pressure connections ensuring electrical safety and ease of installation. The product meets a wide range of certifications including IEC, UL, CSA, CCC, EAC, and RoHS compliance, underscoring its quality and suitability for global industrial applications.
Equipped with 3 NO main contacts and 2NO+2NC auxiliary contacts. Supports motor control, resistive load, and reversing functionality. 230V AC coil suitable for 50/60Hz frequency operation. Power rating of 30kW and current rating of 65A AC-3.
Compact DIN rail mount with dimensions 165 x 142 x 132 mm. Mechanical interlock enhances operational safety for reversing circuits. Multiple international certifications: CCC, CSA, EAC, IEC, RoHS, UL. High electrical durability ensures up to 1.6 million cycles at rated current.
Power connections via EverLink BTR screw terminals for secure wiring. Wide operating temperature range from -5°C to 60°C suitable for harsh environments.
This contactor is ideal for use in industrial automation, manufacturing, HVAC, motor control, and other electrical control system applications. Designed with sustainability in mind, it is a Better World product, supporting disassembly and recycling efforts.
Explore more Schneider Electric automation and control products on EnvMart for your industrial electrical needs.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 30kW at 400V AC.
It has an operational current rating of 65A AC-3.
The coil voltage for this contactor is 230V AC.
The contactor measures 165mm in width, 142mm in depth, and 132mm in length.
This model supports DIN rail mounting.
The contactor has 3 poles with a configuration of 3 normally open (NO) contacts.
It includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts.
The maximum operating temperature is 60°C.
This contactor is certified by CCC, CSA, EAC, IEC, RoHS, and UL.
It is designed for motor control, resistive load, and reversing applications.
The minimum operating temperature is -5°C.
The contactor uses screw terminals for power connections.
