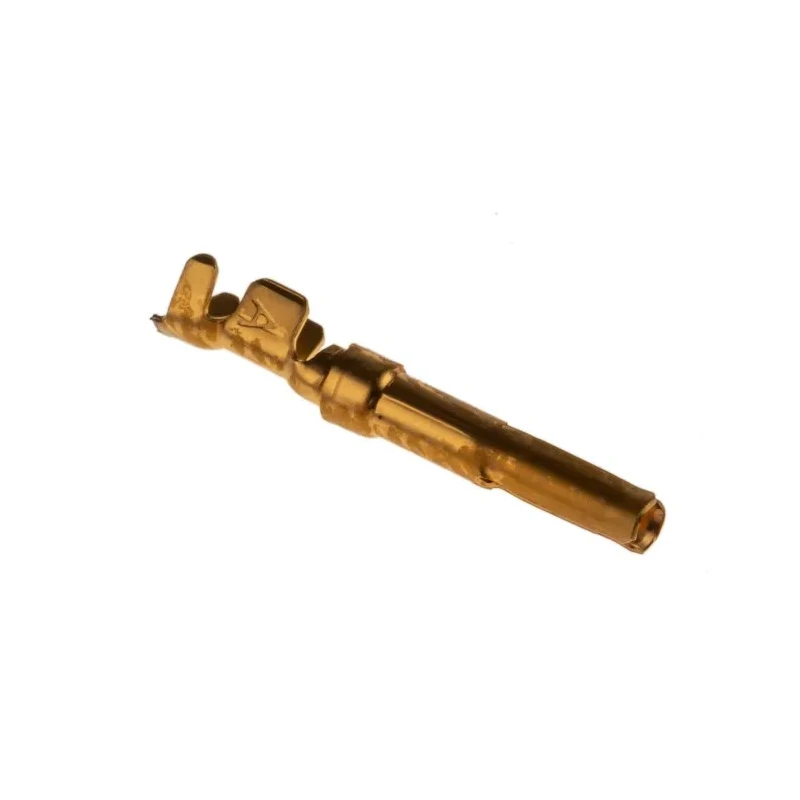

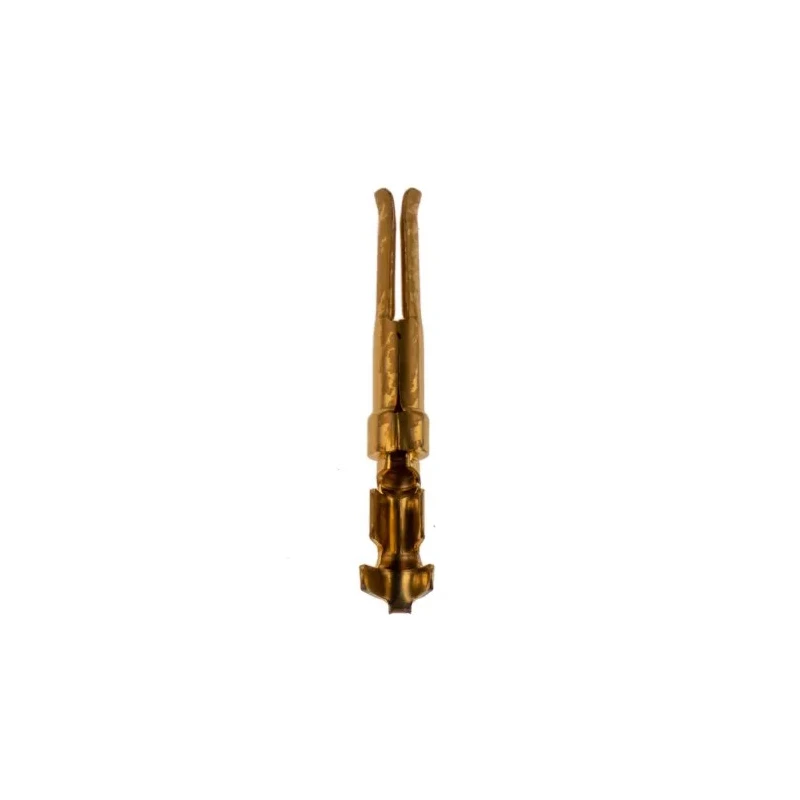

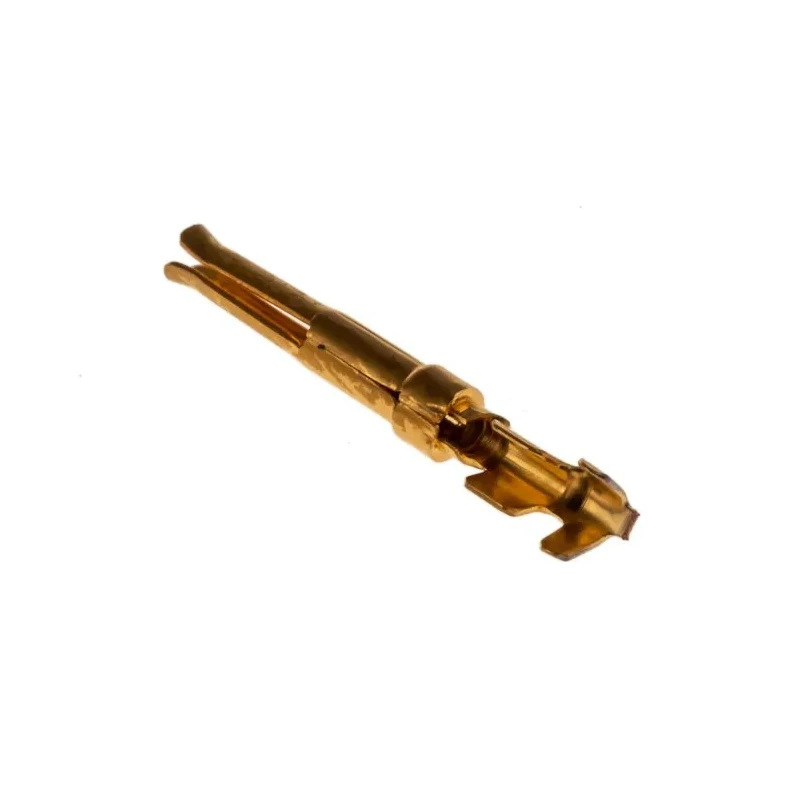

TE Connectivity AMPLIMITE HDP-20 Series Female Crimp D-Sub Connector Contact Gold over Nickel Signal 20 AWG 66504-3

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMPLIMITE HDP-20 Series Female Crimp D-Sub Connector Contact Gold over Nickel Signal 20 AWG 66504-3

Name: TE Connectivity AMPLIMITE HDP-20 Series Female Crimp D-Sub Connector Contact Gold over Nickel Signal 20 AWG 66504-3
Brand: TE Connectivity
SKU: 203284
Price: 0.29 USD
Availability: InStock



Category D-Sub Connector Contact Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Current	3.7A
Length	14.1mm
Model	66504-3
Gender	Female
Contact Material	Phosphor Bronze
Series	AMPLIMITE HDP-20
Termination Type	Crimp
Contact Type	Signal
Contact Plating	Gold over Nickel
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.6mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Contact Size	20
Maximum Contact Resistance	15mΩ
• Pin diameter	0.04 (1.02)

Key Features

Constructed from phosphor bronze for durability and conductivity.
Features gold over nickel plating for excellent corrosion resistance.
Supports wire sizes from 24 AWG to 20 AWG with crimp termination.
Rated for current up to 3.7 amps ensuring reliable signal performance.
Contact resistance does not exceed 15 milliohms for efficient electrical contact.
Designed for use in industrial, electronics, and communication applications.
Compatibility with AMPLIMITE D-Sub connector system and related crimp/insertion tools.

Product Description

TE Connectivity 66504-3 is a female crimp D-Sub connector contact from the AMPLIMITE HDP-20 series. Made of phosphor bronze with gold over nickel plating, it offers excellent electrical performance and corrosion resistance.

This contact supports wire sizes from 24 AWG to 20 AWG and is suitable for signal applications carrying up to 3.7A current. It features a length of 14.1mm and a contact size of 20DF with a pin diameter of 1.02 mm, optimized for reliable connections.

Manufactured for use in electronics, communications, and industrial equipment, it is designed for crimp termination and fits the AMPLIMITE D-Sub connector system, enabling secure and durable wire-to-board connections.

Compatible tools include a crimp tool (part 446-816) and an insertion/extraction tool (part 446-822), ensuring proper installation and maintenance. The connector contact's robust construction and plating enhance signal integrity and longevity in demanding environments.

Constructed from phosphor bronze for durability and conductivity. Gold over nickel plating for corrosion resistance and signal quality. Supports 20 AWG to 24 AWG wire sizes with crimp termination. Rated current of 3.7 amps ensures reliable electrical contact.

Maximum contact resistance of 15 milliohms. Length of 14.1 mm and contact size 20DF with pin diameter of 1.02 mm. Compatible with AMPLIMITE D-Sub connector series and associated tools. Suitable for industrial, electronics, communications, and manufacturing applications.

This product originates from the United States and meets industry standards for quality and reliability. Explore more products in D-Sub Connector Contacts at EnvMart for advanced connectivity solutions.
