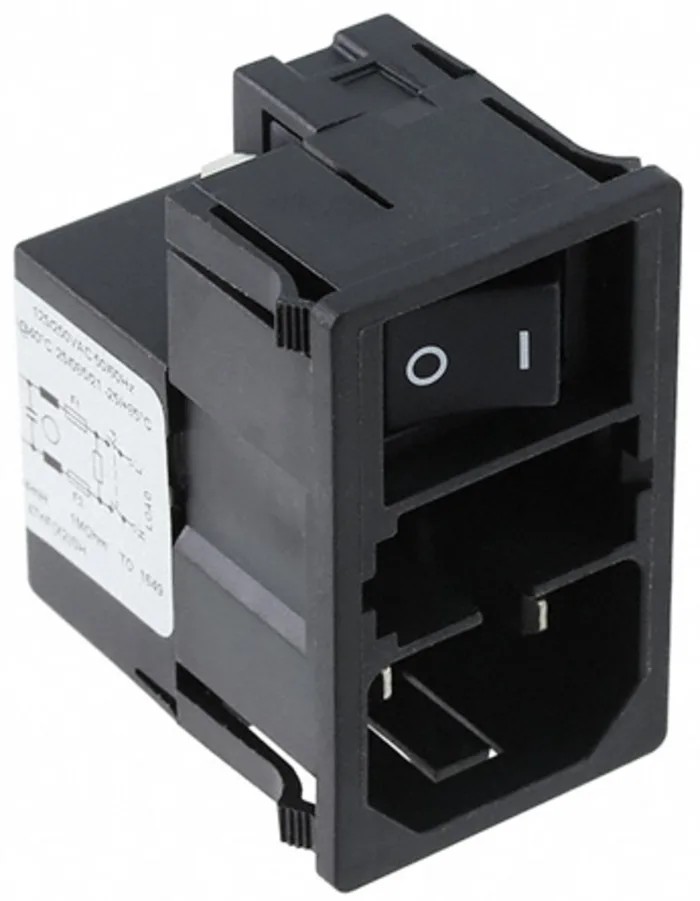

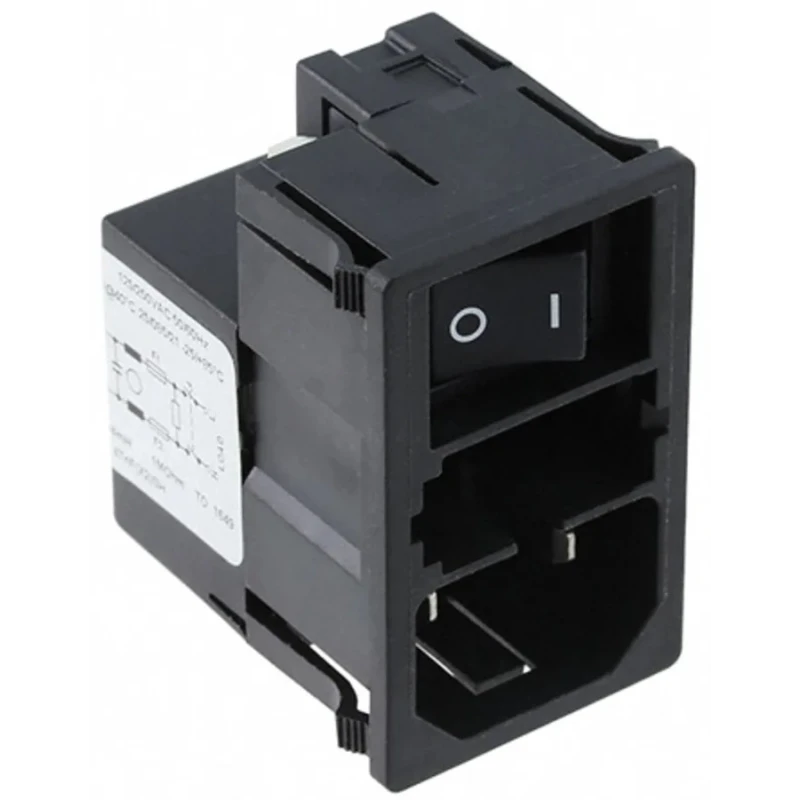

Schurter Panel Mount IEC Connector Male 2 Pole 2 Fuse 1A 125V AC 250 V AC Quick Connect KMF0.2113.11

Schurter KMF0.2113.11 panel mount IEC connector is a high quality power entry module with integrated line filter and fuse holders designed for effective EMC shielding and panel mounting applications.

This male connector model supports line filters, line switches, and fuse holder integration with two poles and two fuse holders designed for 5 x 20 mm fuses rated at 1A. The device operates efficiently at 125V and 250V AC voltages with frequencies of 50 and 60Hz, making it suitable for both industrial and medical equipment use conforming to IEC/UL standards.

The compact design features small dimensions, 50mm in height, 30.5mm width, and 40.4mm depth, allowing easy front panel mounting with flexible steel segments ensuring reliable contact and excellent EMC shielding capabilities. Quick connect termination type enables rapid installation and maintenance.

The operating temperature range from -25°C up to 85°C allows use in diverse environments. The fuse drawer provides an additional safety measure by securely holding fuse links; however, the fuse is not included and must be ordered separately. This product meets relevant standards including IEC/EN 60950 and IEC/UL 60601-1 for electrical safety in standard and medical devices.

It is manufactured in Switzerland to high quality standards, ensuring durable and reliable performance for power filtering and connectivity solutions in electronics and electrical equipment.

Equipped with two fuse holders for 5 x 20 mm fuses ensuring circuit protection. Designed for panel mounting with compact dimensions of 50mm height, 30.5mm width, and 40.4mm depth. Supports operating frequencies of 50Hz and 60Hz with voltage ratings of 125 and 250 volts AC.

Features a male connector with 2 poles and quick connect termination for easy installation. Operating temperature range is from -25°C to 85°C, suitable for various industrial environments. Complies with IEC/EN 60950 and IEC/UL 60601-1 standards, suitable for standard and medical equipment applications.

Incorporates innovative EMC shielding and flexible steel segments for excellent contact quality. Fuse drawers enhance safety by securely housing fuse links, though fuses are sold separately. Manufactured in Switzerland ensuring high quality and reliability.

Explore wider ranges of IEC Connectors and power connectors at EnvMart for comprehensive industrial and medical applications.
