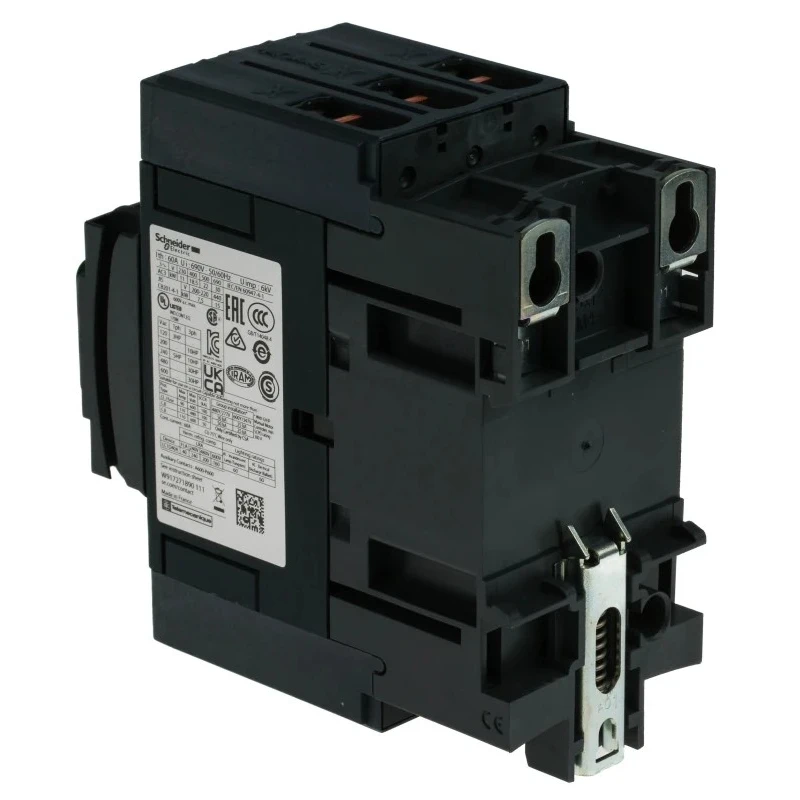

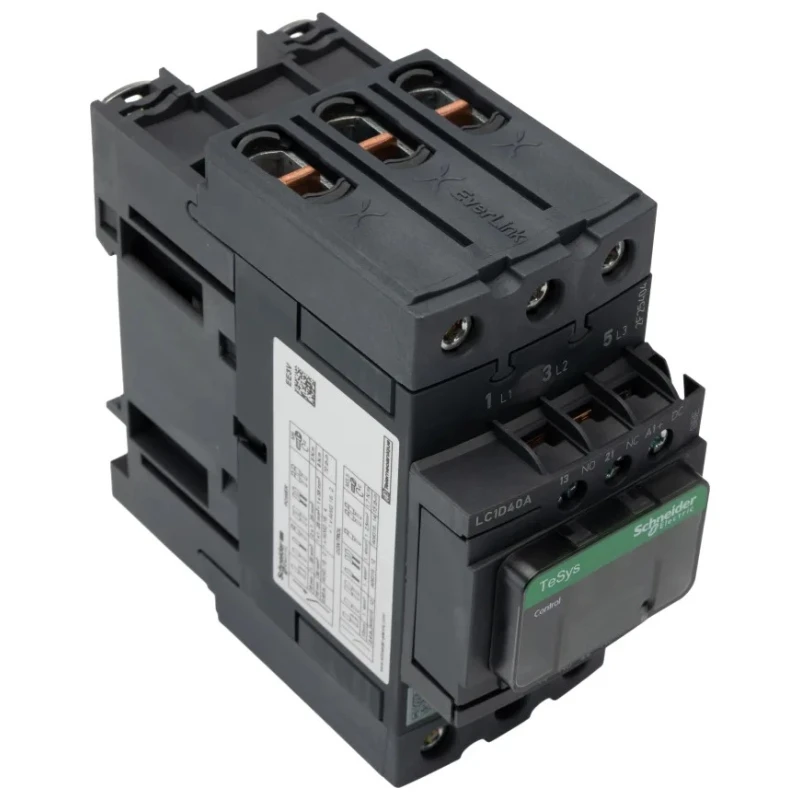

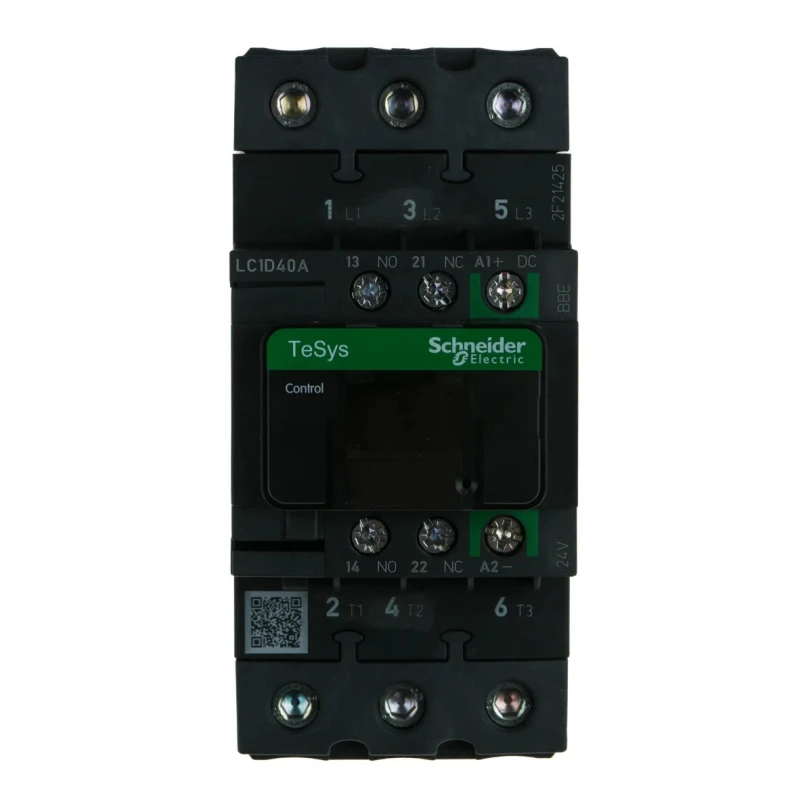

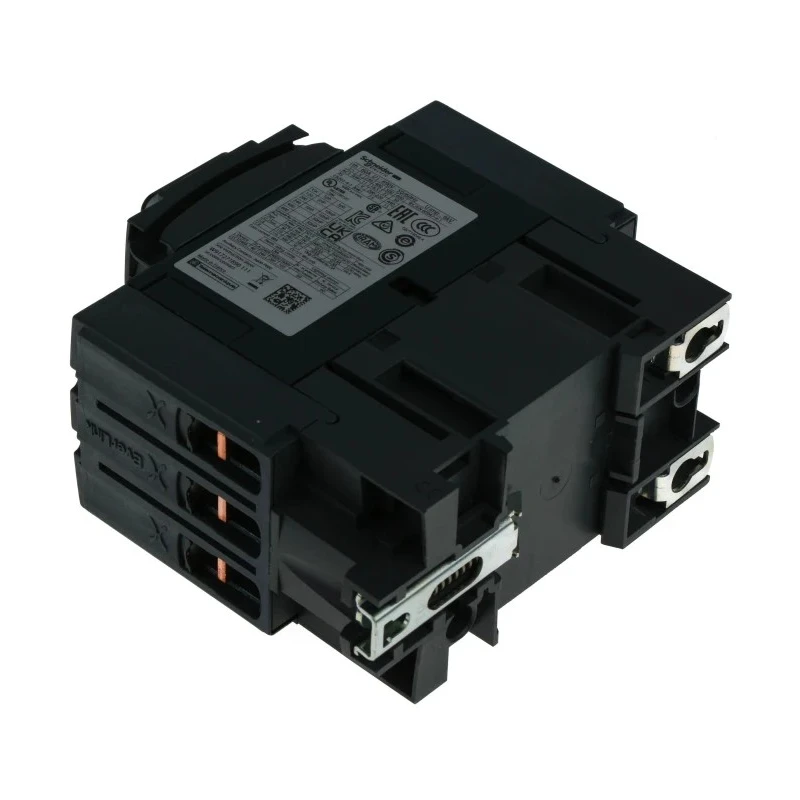

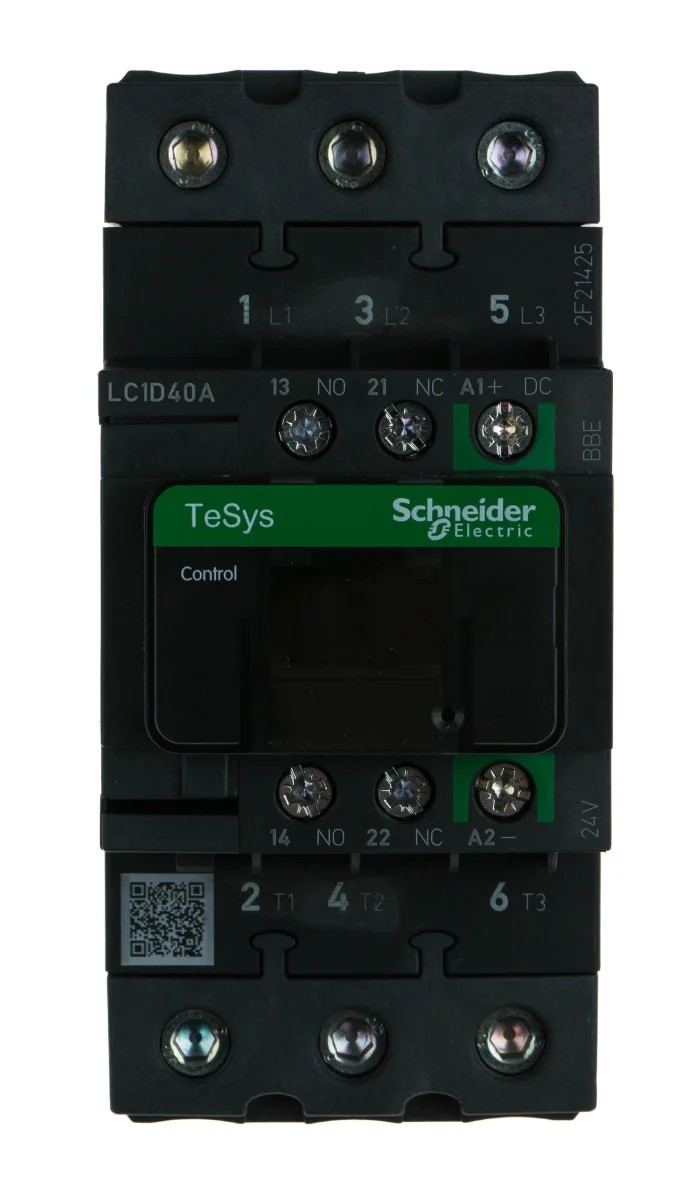

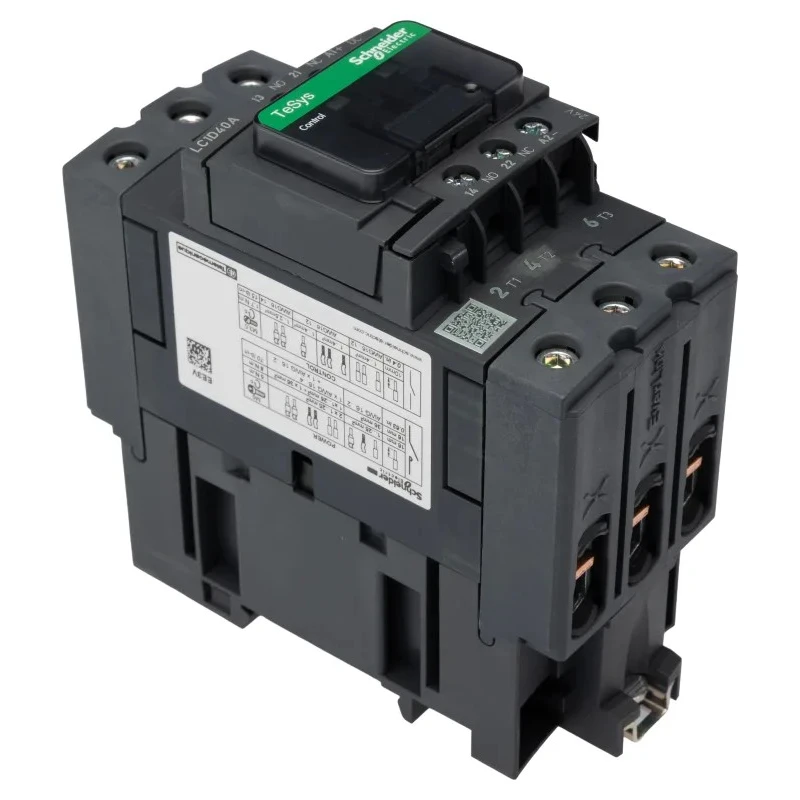

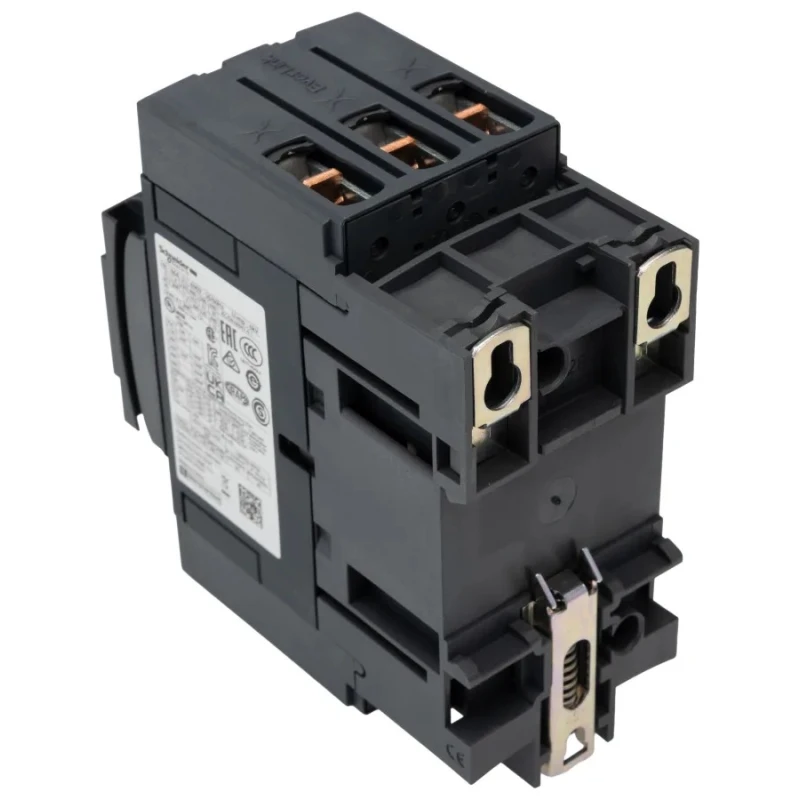

Schneider Electric TeSyS D 3-Pole Contactor, 24V DC Coil, 40A, 18.5 kW, 690V AC LC1D40ABBE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 122mm |
| Model | LC1D40ABBE |
| Depth | 122mm |
| Width | 55mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 18.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
Key Features
- Equipped with a durable 24V DC coil ensuring safe and efficient operation.
- Designed with 3 poles and supports a contact voltage of 690V AC for versatile applications.
- Capable of handling resistive and motor load currents up to 40A.
- Compact size with DIN rail mounting for easy installation and space saving.
- Wide operating temperature range from -40°C to 60°C for reliable performance in harsh environments.
- Includes 2 auxiliary contacts configured as 1 NO and 1 NC for extended control functionality.
- Terminals utilize screw connections for secure electrical contact.
- Complies with multiple standards including CCC, CSA, EAC, IEC, RoHS, and UL certifications.
Product Description
Schneider Electric LC1D40ABBE is a 3-pole TeSyS D contactor designed for robust motor and resistive load control applications. It operates with a 24V DC coil voltage, supporting a contact voltage rating of 690V AC and contact current of 40A, making it suitable for industrial, automation, HVAC, and manufacturing environments.
The contactor features a compact design measuring 122mm x 55mm x 122mm, optimized for DIN rail mounting allowing space-efficient installation. Its operational temperature span from -40°C to 60°C ensures consistent functionality under extreme temperature conditions.
This model provides 2 auxiliary contacts (1 NO/1 NC) enhancing control flexibility. The screw terminal type guarantees secure electrical connectivity. It holds compliance with several international standards such as CCC, CSA, EAC, IEC, RoHS, and UL, reflecting a commitment to quality and safety.
Typical applications include motor control in industrial machinery, load control in HVAC systems, and integration within electrical control panels requiring reliable and efficient switching.
Durable 24V DC coil for efficient energy management. 3-pole configuration with high contact current for demanding loads. Compact DIN rail mount design to minimize panel space. Wide operational temperature range for harsh industrial environments.
Auxiliary contacts for enhanced control circuits. Screw terminal type for secure connections. Complies with international standards ensuring safety and reliability.
This Schneider Electric contactor represents a high-performance solution engineered to meet demanding industrial and automation requirements. Explore our Automation & Control Gear category for a wide range of Contactors and related devices.
