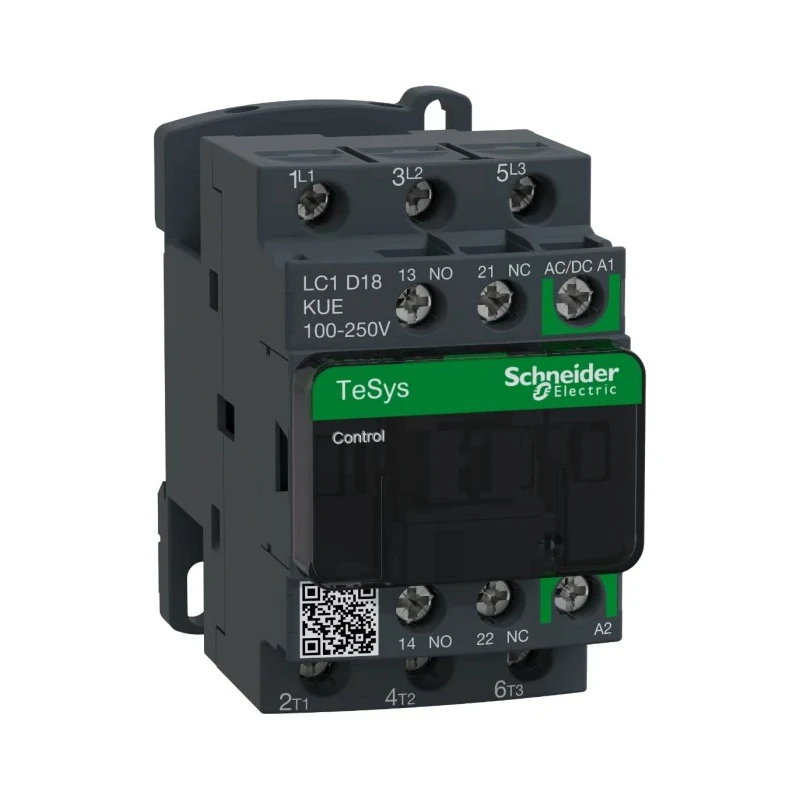

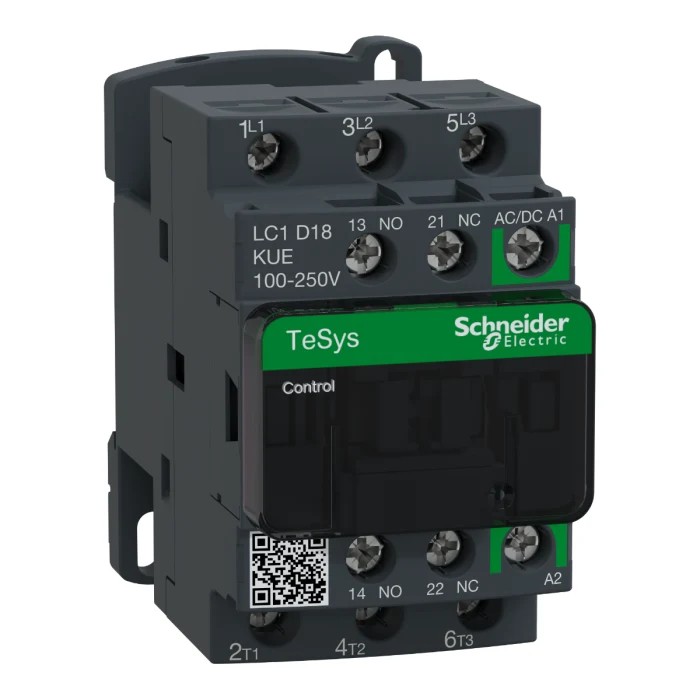

Schneider Electric TeSyS D Contactor, 3-Pole, 18 A, 7.5 kW 250V, 230V AC Coil LC1D18KUE
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 45mm |
| Model | LC1D18KUE |
| Depth | 77mm |
| Width | 86mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 250V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive load applications.
- Equipped with 3 normally open (NO) contacts and 2 auxiliary contacts (1 NO and 1 NC).
- DIN Rail mounting with screw terminal connections for secure installation.
- Operates efficiently within a temperature range of -25°C to 60°C.
- Built with IP20 finger-safe terminals complying with North American and international markings.
- Complies with multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL.
- Designed for easy integration into control systems supporting both AC-1 and AC-3 utilisation categories.
- Features a coil voltage of 230V AC and control circuit voltage of 250V.
Product Description
Schneider Electric LC1D18KUE is a TeSyS D series contactor designed for reliable motor control and resistive load management. Featuring a 230V AC coil and 3 poles rated for 18A contact current, this contactor supports power ratings up to 7.5 kW at 250V. It is engineered for a broad range of industrial automation, manufacturing, HVAC, and commercial applications where durable and precise switching is required.
The LC1D18KUE model incorporates 3 normally open contacts and 2 auxiliary contacts configured with 1 NO and 1 NC, enabling additional switching capabilities. Designed for DIN Rail mounting, it utilizes screw terminals that ensure safe IP20 finger protection, accommodating both North American and international terminal markings.
Operating efficiently in temperatures ranging from -25°C to 60°C, the contactor complies with key international standards including CCC, CSA, EAC, IEC, RoHS, and UL certifications, guaranteeing quality and safety in diverse environments. This contactor supports AC-1 (resistive load, heating) and AC-3 (squirrel cage motor breaking under load) utilisation categories, making it versatile for motor starters, lifts, escalators, conveyors, compressors, pumps, mixers, and air conditioning systems.
Manufactured in France, the contactor embodies Schneider Electric's Better World initiative with its design for disassembly and sustainability considerations. Its compact form factor (86mm width x 45mm length x 77mm depth) enables efficient panel integration while maintaining high mechanical and electrical endurance.
Designed for motor control and resistive load applications. Three poles with a contact current rating of 18A. Coil voltage of 230V AC with control circuit voltage at 250V. Two auxiliary contacts with 1 NO and 1 NC configuration.
DIN Rail mountable with screw terminal, IP20 finger-safe protection. Compliance with CCC, CSA, EAC, IEC, RoHS, and UL standards. Operating temperature range from -25°C to 60°C. Supports AC-1 and AC-3 utilisation categories for diverse motor control needs.
Compact dimensions and lightweight design suitable for integration. Manufactured in France under Schneider Electric’s Better World sustainability program.
This contactor fits within the Automation & Control Gear category, ideal for electrical automation, industrial manufacturing, HVAC systems, and commercial motor management. Explore more Schneider Electric products and related Contactors on EnvMart for your control gear requirements.
