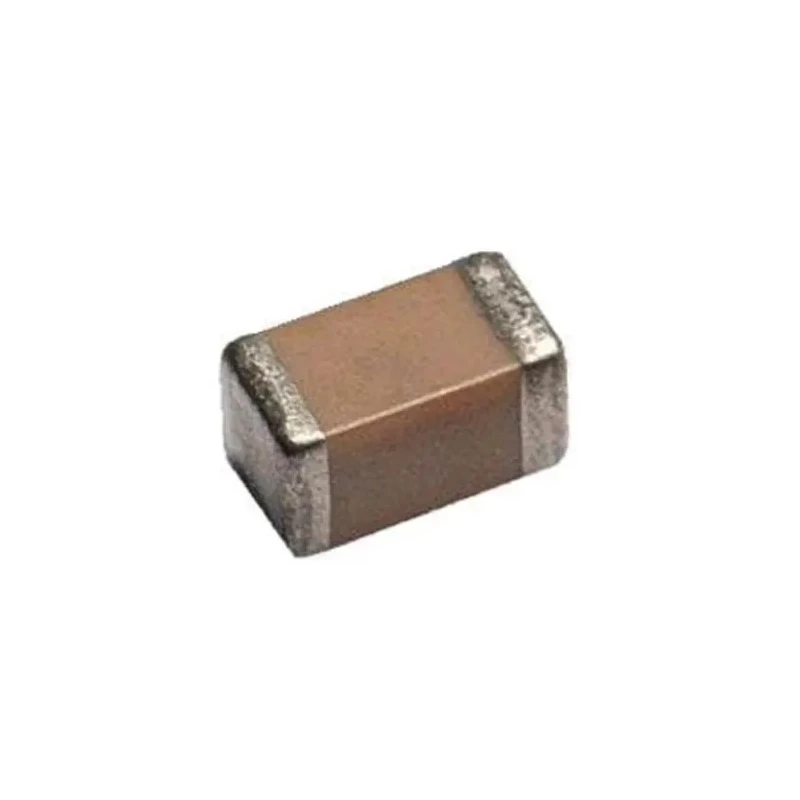

KYOCERA AVX 10 pF 50V dc ±1 % Multilayer Ceramic Capacitor Surface Mount 04025A100FAT2A

KYOCERA AVX 04025A100FAT2A Multilayer Ceramic Capacitor is a precision passive electronic component designed for surface mount technology (SMT) applications. It offers a capacitance of 10 pF with a rated voltage of 50 volts DC and a tight tolerance of ±1 % to ensure consistent electrical performance in demanding electronics.

The capacitor employs the C0G (NPO) dielectric material, known for one of the most stable dielectric properties available, providing minimal capacitance change across a wide temperature range. Specifically, the capacitance shift is approximately 0 ±30ppm/°C, meaning less than ±0.3% capacitance variation from -55°C to +125°C, making it highly suitable for stable timing, filtering, and frequency stabilization circuits.

Its physical dimensions correspond to the industry-standard 0402 package case with a length of 1mm, width of 0.5mm, and height of 0.56mm, optimized for high-density PCB layouts. The termination is surface mount type, enabling efficient automated pick-and-place assembly and reliable solder connections.

This component is packaged on reels, facilitating integration into high-volume manufacturing lines. It is part of the KGM series and does not comply with automotive standards, which is important to consider for automotive electronics designers.

Typical applications include industrial electronics, telecommunications, consumer electronics, instrumentation, and circuit stabilization where precise capacitance and temperature stability are critical. The compact size and robust performance make it an excellent choice for surface-mount circuit designs requiring high reliability.

Stable C0G (NPO) dielectric ensures minimal capacitance variation. Wide operating temperature range from -55°C to +125°C for harsh environments. Compact 0402 surface mount package dimensions of 1mm x 0.5mm x 0.56mm. Packaged on reel for automated high-volume PCB assembly.

Precision tolerance of ±1 % for accurate capacitance control. Designed for industrial, telecommunications, and consumer electronic applications. Explore more Multilayer Ceramic Capacitors and passive components on EnvMart to find suitable options for your electronic design and manufacturing projects.
