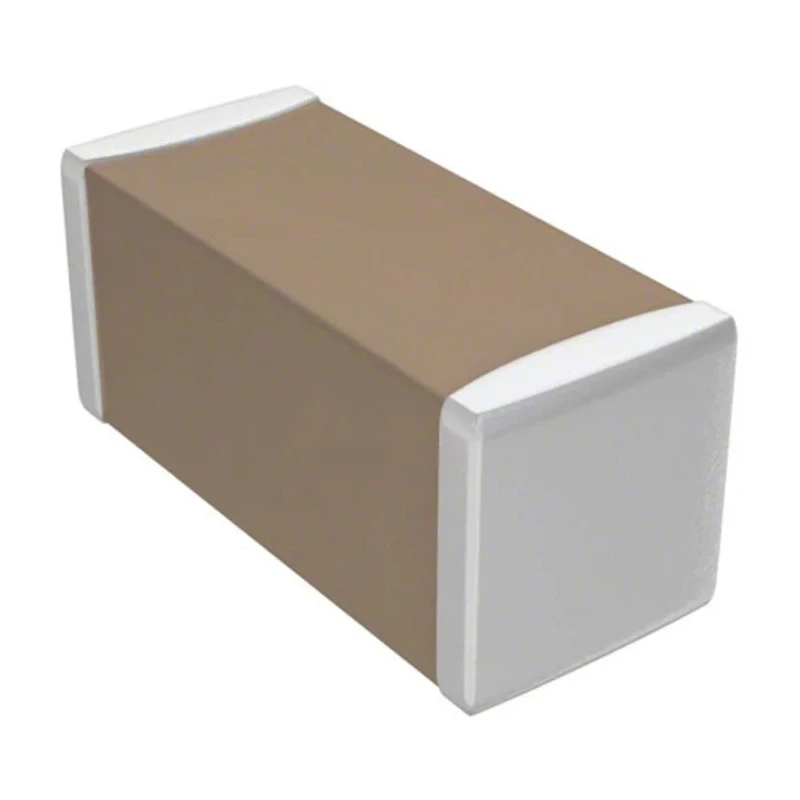

KYOCERA AVX 1 nF Multilayer Ceramic Capacitor 3kV dc X7R Dielectric Surface Mount FLEXITERM Series 1808 1808HC102MAT1A

KYOCERA AVX model 1808HC102MAT1A is a high-quality multilayer ceramic capacitor designed for surface mount technology applications, providing 1 nF capacitance with a voltage rating of 3 kV dc. Utilizing an X7R dielectric, this capacitor maintains stable capacitance with minimal drift throughout a temperature range from -55°C to 125°C, making it highly suitable for demanding industrial and electronic circuits.

The capacitor belongs to the FLEXITERM series with termination designed to withstand mechanical stresses during temperature cycling and soldering, ensuring long-term reliability. Packaged in an 1808 case size, it offers a compact form factor with dimensions 4.6 mm (length) by 2 mm (width) and 2.2 mm in height, supporting high-density PCB layouts and low-profile designs.

Its high voltage rating of 3 kV dc makes it appropriate for use in high-voltage applications such as snubber circuits, resonators in switch-mode power supplies (SMPS), high-frequency power converters, and high-voltage coupling or DC blocking. The product's low equivalent series resistance (ESR) helps minimize power loss and heat generation at high frequencies.

Designed to meet the needs of industrial, laboratory, electronics manufacturing, telecommunications, and power supply equipment sectors, this capacitor is supplied on reels to facilitate automated pick-and-place assembly lines, enhancing manufacturing efficiency.

Compact 1808 package dimension supports high-density mounting. High 3 kV dc voltage rating suitable for high-voltage blocking applications. X7R dielectric offers stable capacitance from -55°C to 125°C. FLEXITERM termination series ensures mechanical and thermal reliability.

Low ESR for superior high-frequency performance in power electronics. Operating temperature range accommodates automotive and industrial environments. Reel packaging suitable for automated PCB assembly. Capacitor dimensions: 4.6 mm length, 2 mm width, and 2.2 mm height.

This KYOCERA AVX Multilayer Ceramic Capacitor is an ideal component for electronic designers looking for robust surface mount capacitors with high voltage and temperature stability. Explore more from the MLCC range for varied capacitance and voltage requirements at EnvMart.
