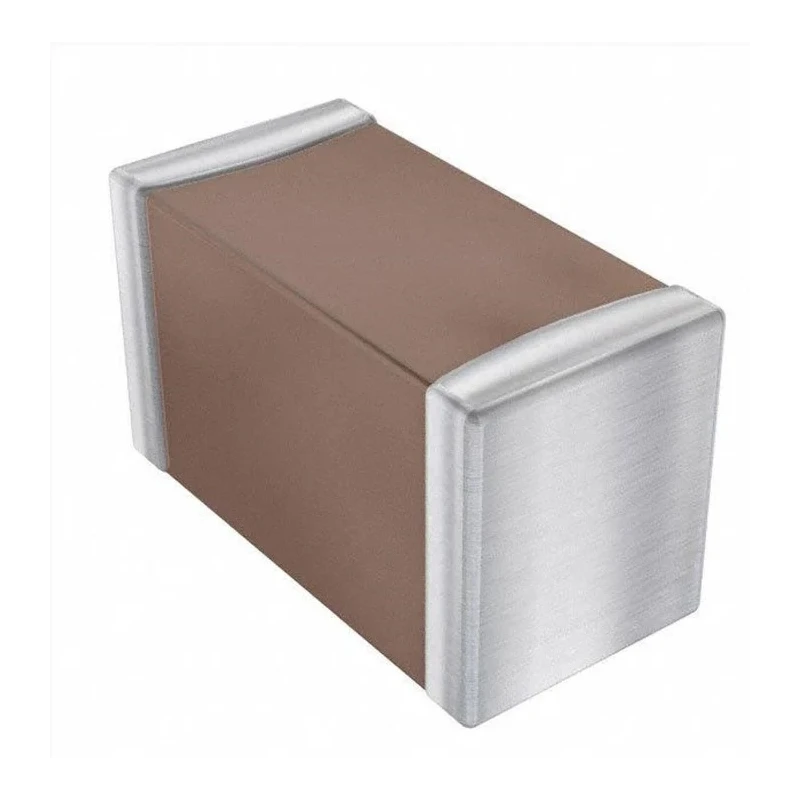

KYOCERA AVX 22 nF 50V DC ±10% Multilayer Ceramic Capacitor Surface Mount 0603 Case KGM Series 06035C223K4Z2A

KYOCERA AVX 06035C223K4Z2A is a 22 nF multilayer ceramic capacitor designed for surface mount applications. It operates at a rated voltage of 50V DC with a capacitance tolerance of ±10%. This capacitor features the X7R dielectric material, providing excellent temperature stability suitable for a wide range of industrial and automotive electronic equipment.

The compact 0603 package measures 1.6 mm in length, 0.81 mm in width, and 0.9 mm in height, enabling dense PCB layout and compatibility with automated placement machines. The capacitor is mounted on the surface of circuit boards using a surface mount termination type, enhancing manufacturing efficiency.

AVX’s FLEXITERM technology enhances the mechanical flexibility of the capacitor, allowing for up to 5 mm flexure without internal cracking, significantly improving resistance to mechanical stress compared to standard components. This makes the capacitor ideal for harsh environments subject to mechanical and thermal cycling stresses.

The capacitor supports a broad operating temperature range from -55°C to 125°C, making it suitable for applications exposed to variable climates including automotive and industrial electronics. It is available on reel packaging to support automated assembly lines and high-volume production.

While categorized as non-automotive, this capacitor is AEC-Q200 qualified, meeting rigorous automotive quality and reliability standards for critical electronics.

Applications include high flexure stress circuit boards, variable temperature environments, automotive electronics, and other commercial and industrial equipment requiring durable, high-performance capacitors.

Compact 0603 surface mount package for automated PCB assembly. Reliable capacitance stability with X7R dielectric and ±10% tolerance. Wide operating temperature range from -55°C to 125°C. FLEXITERM technology for superior mechanical flexibility and durability.

AEC-Q200 automotive qualification ensures high reliability. Reel packaging supports efficient mass production. Explore more Multilayer Ceramic Capacitors and other passive electronic components available at EnvMart tailored for industrial and automotive electronic manufacturing needs.
