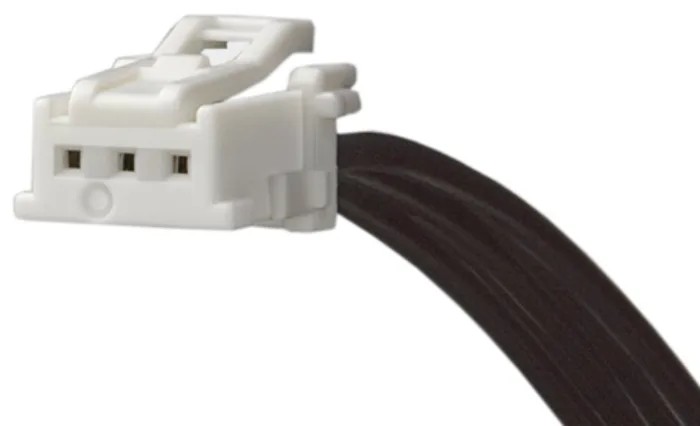

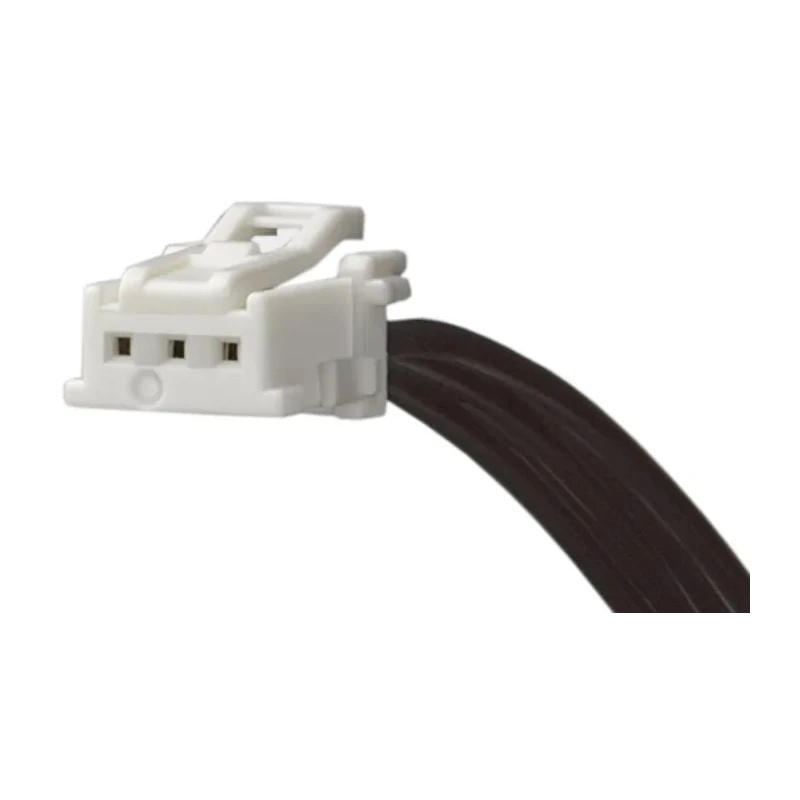

Molex 3 Way Female MicroClasp Wire to Board Cable 600 mm 250 Vrms Nylon Jacket 15136-0306
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Cable Length | 600mm |
| Series | 15136 |
| Interfaces | lance system |
| Jacket Material | Nylon |
| Standards/Approvals | UL, RoHS, REACH |
| Connector Type A | MicroClasp |
| Connector Gender A | Female |
| Jacket Colour | Black |
| Number of Contacts A | 3 |
| Number of Rows A | 1 |
Key Features
- The cable uses a durable nylon jacket for protection and insulation.
- It features 3 female MicroClasp connectors with a 2.0 mm pitch for compact installation.
- Rated for 250 Vrms voltage suitable for various electronics applications.
- Constructed with UL1061 discrete wires to aid efficient prototyping and production.
- Includes positive locking connectors with audible click for secure and easy mating.
- Compliant with UL, RoHS, and REACH standards ensuring safety and environmental compliance.
- Designed for use with MicroClasp PCB headers series 55932 and 55935.
- Ideal for consumer electronics, industrial controls, medical devices, and automotive applications.
Product Description
Molex 15136-0306 is a 3 Way Female MicroClasp Wire to Board Cable measuring 600 mm in length and rated for 250 Vrms voltage. This cable features high-quality nylon jacket material that ensures durability and insulation. Both ends terminate with female MicroClasp connectors providing secure connections with a 2.0 mm pitch pin spacing, suitable for compact electronic assemblies.
The cable is made using UL1061 discrete wires simplifying the design and manufacturing process for prototypes and final production units. The MicroClasp connectors have low insertion and withdrawal force terminals, facilitating easy mating and unmating while maintaining secure retention with a positive locking system and audible click confirmation.
The cable assembly complies with UL, RoHS, and REACH standards, reflecting its suitability for global applications demanding safety and environmental compliance. It is designed to mate with Molex series 55932 and 55935 MicroClasp PCB headers, making it ideal for wire-to-board connection tasks.
This wire-to-board cable is applicable across a range of industries including consumer electronics (home entertainment systems, portable devices), industrial process controls, automotive commercial vehicles, and medical equipment like patient monitors.
The cable jacket is black nylon, providing mechanical protection and longevity in diverse conditions. The connector system includes a lance system interface for improved reliability. Positive locking mechanisms ensure safety against disconnection during operation.
The compact 2.0 mm pitch saves PCB space while carrying up to 3.0 A current. The design allows for easy plug-and-play installation and replacement. Explore other wire-to-board cable solutions for your electrical and automation requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable measures 600 mm in length.
It features 3 female MicroClasp connectors with a 2.0 mm pitch.
This wire to board cable is rated for 250 Vrms voltage.
The cable is constructed with a nylon jacket for protection and insulation, and uses UL1061 discrete wires.
It is designed to mate with Molex series 55932 and 55935 MicroClasp PCB headers.
The cable complies with UL, RoHS, and REACH standards, ensuring safety and environmental compliance.
This model can carry up to 3.0 A current.
The jacket of the cable is black.
The MicroClasp connectors feature a positive locking mechanism with an audible click for secure mating.
It is applicable in consumer electronics, industrial controls, medical devices, and automotive applications.
The connectors have a pitch of 2.0 mm, allowing for compact installations.
The country of origin for this cable is China.
