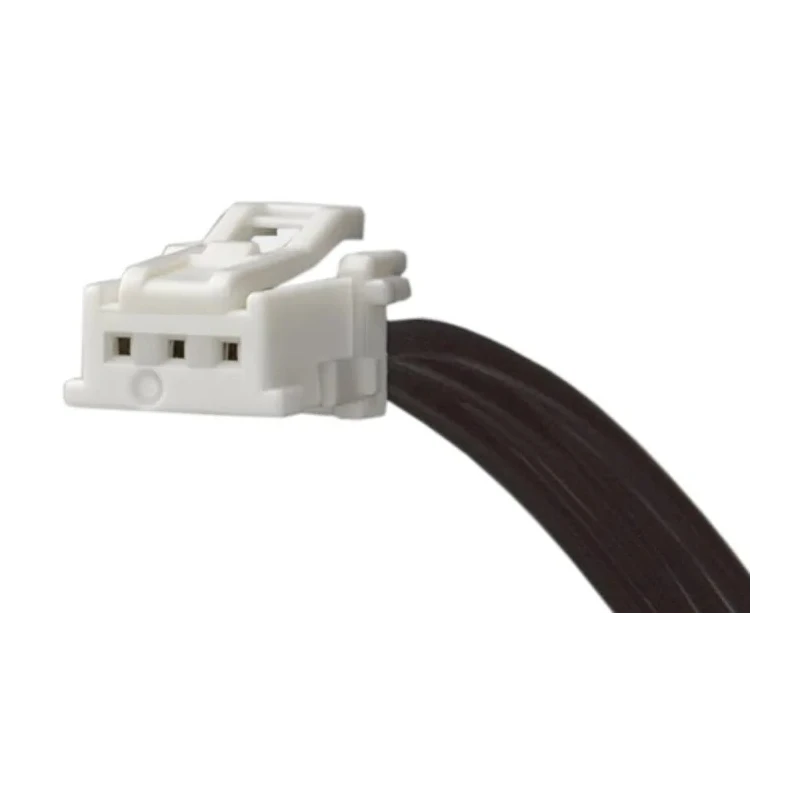

Molex Wire to Board Cable MicroClasp Series 300 mm Length 15136-0303

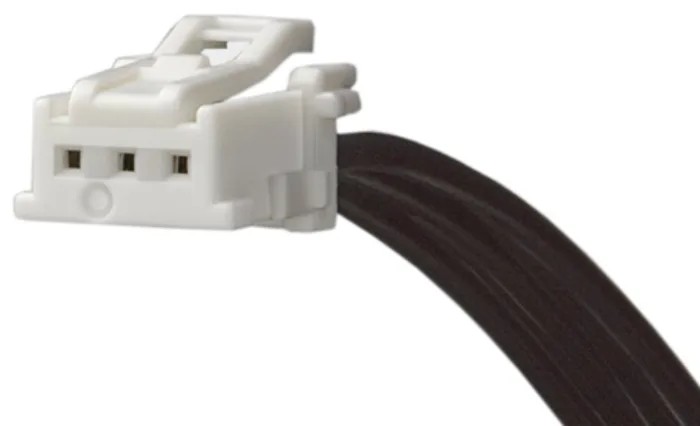

Molex 15136-0303 Wire to Board Cable is part of the MicroClasp 15136 Series, featuring a 300 mm long cable constructed with UL1061 discrete wires. This cable assembly terminates at both ends with a MicroClasp 2.0 mm pitch female connector, designed for compact, efficient, and reliable electrical connections.

The MicroClasp system utilizes a compact 2.0 mm pitch that saves PCB space while maintaining ease of use through its low insertion and withdrawal forces. The connectors feature a positive locking mechanism with an audible click, ensuring secure mating and preventing accidental disconnection, critical for industrial, medical, and consumer electronics applications.

This cable supports a maximum of 3 A current rating, suitable for various control and signal transmission functions. Pin-to-pin mapping between the receptacle and PCB header allows for plug and play use, simplifying prototype design and production tasks.

Its robust design makes it ideal for integration into fitness equipment, home entertainment systems, home appliances, portable and mobile electronic devices, commercial vehicles, and industrial process control environments, as well as patient monitoring systems in medical fields.

Constructed from UL1061 discrete wires for design flexibility. MicroClasp 2.0 mm pitch connectors for space efficiency. Pin-to-pin mapping provides straightforward connectivity. Maximum current rating of 3 A for reliable power handling.

Positive lock with audible click ensures secure connections. Low insertion and withdrawal force for ease of use. Compatible with MicroClasp PCB headers series 55932 and 55935. Manufactured in China with compliance to industry standards, this cable is a reliable choice for commercial, industrial, and laboratory connectivity needs.
