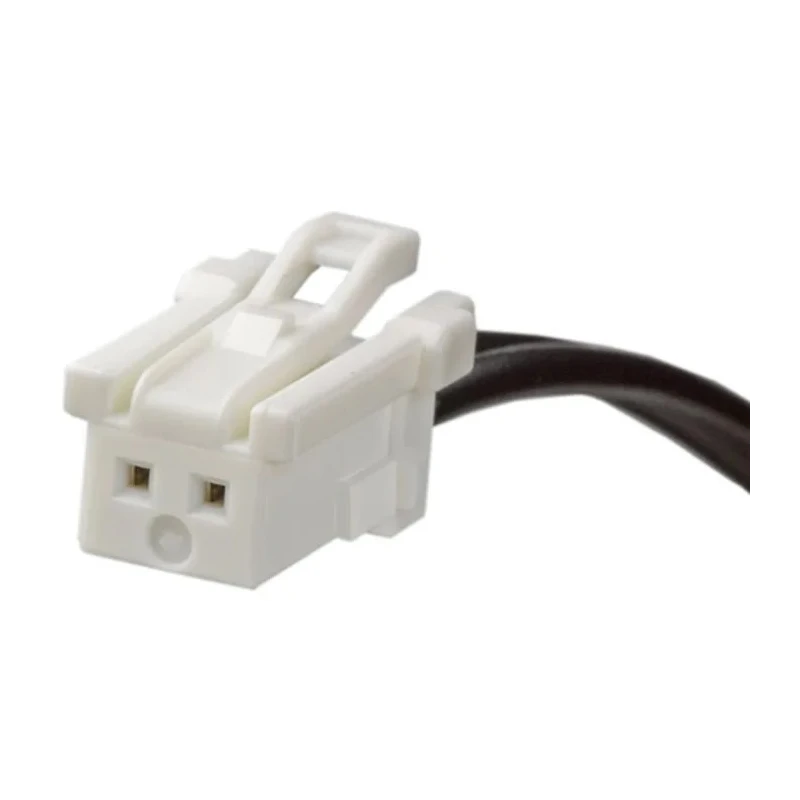

Molex Wire to Board Cable 2 Way Female MicroClasp to 2 Way Female MicroClasp, 300 mm 15136-0203
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Cable Length | 300mm |
| Series | 15136 |
| Interfaces | lance system |
| Jacket Material | Nylon |
| Standards/Approvals | RoHS, REACH |
| Connector Type A | MicroClasp |
| Connector Gender A | Female |
| Jacket Colour | Black |
| Number of Contacts A | 2 |
| Number of Rows A | 1 |
Key Features
- Constructed with UL1061 discrete wires for ease of design and prototyping.
- Features pin-to-pin mapping ensuring ready-to-use plug and play connections.
- Compact 2.0 mm pitch connectors with low insertion and withdrawal forces for easy mating and unmating.
- Positive locking system with an audible click confirms secure connections.
- Designed for high reliability with a 3 A maximum current rating.
- Cable jacket made of durable black nylon material.
- Compliant with RoHS and REACH standards for safety and environmental regulations.
- Ideal for use in consumer electronics, industrial controls, medical devices, and automotive applications.
Product Description
Molex 15136-0203 Wire to Board Cable is a high-quality cable assembly featuring 2 Way Female MicroClasp connectors on both ends, connected by a 300 mm length of UL1061 discrete wire.
This cable assembly belongs to the 15136 series, known for its compact 2.0 mm pitch design and ease of integration. The MicroClasp connectors provide low insertion and withdrawal force, making them user-friendly for quick mating and unmating during prototyping and manufacturing.
The cable is jacketed in black nylon for durability and compliance with RoHS and REACH regulations, ensuring environmental safety and reliability in industrial applications. The positive locking mechanism within the connectors generates an audible click to confirm a secure and stable connection, reducing the risk of accidental disconnection.
Rated for a maximum current of 3 A, this wire to board cable is suitable for a broad range of applications including consumer electronic devices, medical patient monitors, automotive controls, and industrial process systems.
The pin-to-pin mapping enables straightforward plug and play installation with Molex MicroClasp series 55932 and 55935 PCB headers, increasing assembly efficiency and reducing wiring errors.
Constructed using UL1061 discrete wires for simplified design and reliable performance. Compact 2.0 mm pitch connectors provide space savings on PCBs and connectors. Positive locking with audible click ensures stable connector mating.
Durable nylon jacket protects the cable in harsh environments. Compliance with RoHS and REACH standards for safe and environmentally responsible use. Supports a current rating of up to 3 A for various electrical applications.
Low insertion force terminals reduce wear and facilitate multiple mating cycles. Compatible with MicroClasp PCB headers from Molex for easy system integration.
This cable assembly is an essential component for electronic, industrial, automotive, and medical system wiring and prototyping. Explore more Wire to Board Cables and accessories in the Electronics & Electricals category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable length of this model is 300 mm.
It features 2 Way Female MicroClasp connectors on both ends.
This wire to board cable is rated for a maximum current of 3 A.
The cable jacket is made of durable black nylon material.
Yes, it is compliant with RoHS and REACH standards for safety and environmental regulations.
The connectors feature a positive locking system that generates an audible click to confirm secure connections.
It is suitable for use in consumer electronics, industrial controls, medical devices, and automotive applications.
The connectors have a compact 2.0 mm pitch design.
The cable is constructed with UL1061 discrete wires for ease of design and prototyping.
The connectors have 2 contacts each.
The MicroClasp connectors provide low insertion and withdrawal forces, making them user-friendly for quick mating and unmating.
This wire to board cable is manufactured in India.
