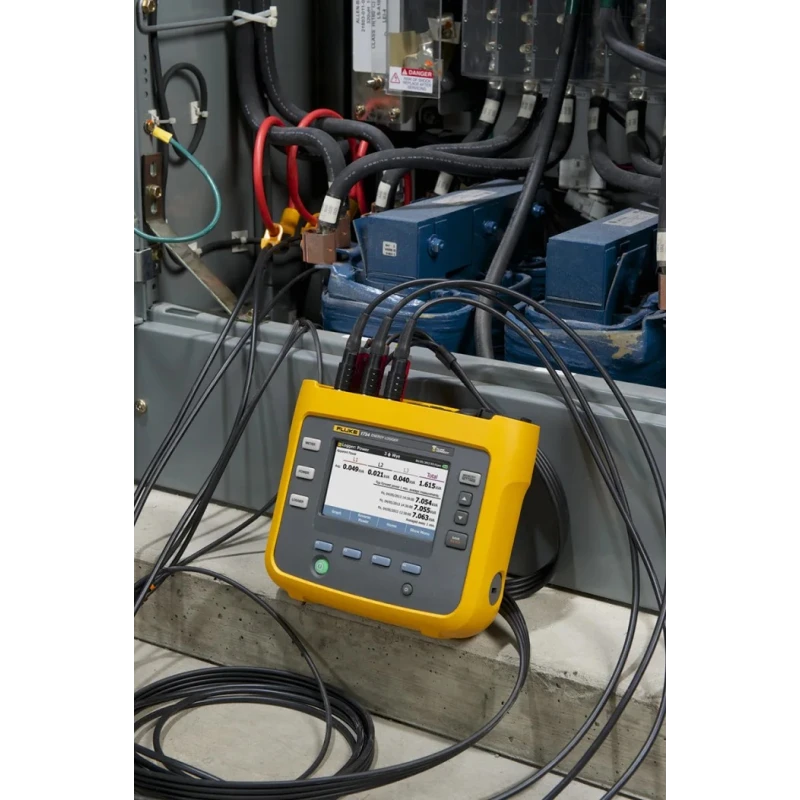

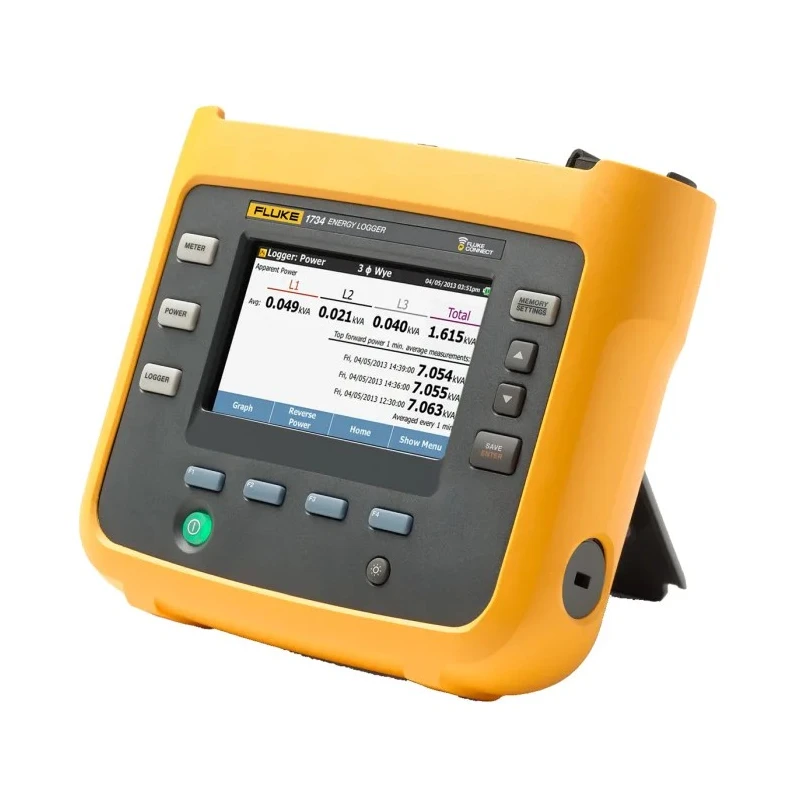

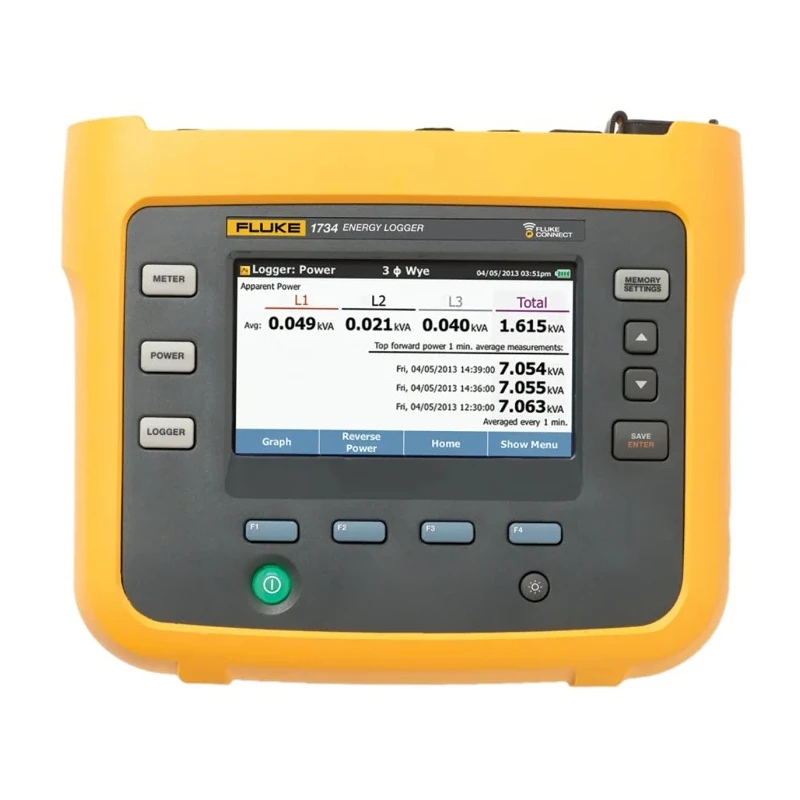

Fluke Three Phase Power Energy Monitor & Logger with USB, Mini-Port, Bluetooth, WiFi, 16-bit Resolution FLUKE-1734/INTL
Specifications
| Country of Origin | Romania |
|---|---|
| Resolution | 16 bit |
| Accuracy | ± (0.2 % + 0.01 %) |
| Display Type | LCD |
| Brand | Fluke |
| Battery Life | 9h |
| Battery type | Li-ion Rechargeable Battery |
| Height | 198mm |
| Length | 167mm |
| Model | FLUKE-1734/INTL |
| IP Rating | IP50 |
| Width | 55mm |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Measurement Parameters | Frequency, THD Voltage, THD Current, Current, Voltage |
| Interface Type | USB, USB Mini-Port, Bluetooth, WiFi |
| Standards/Approvals | VEMC, BIP:EN60529, IEEE 1459, IEC 61010-1, IEC 61010-2-031 CAT IV 600 V/CAT III 1000, MIL-T-28800E Type 3Class IIIStyle, EN 61326-1CISPR 11 Group 1Class |
| Minimum Measurement | 100 V |
| Maximum Measurement | 500 V |
| Standards/ApprovalsVEMC, BIP | EN60529, IEEE 1459, IEC 61010-1, IEC 61010-2-031 CAT IV 600 V/CAT III 1000, MIL-T-28800E Type 3Class IIIStyle, EN 61326-1CISPR 11 Group 1Class |
| VEMC, BIP | EN60529, IEEE 1459, IEC 61010-1, IEC 61010-2-031 CAT IV 600 V/CAT III 1000, MIL-T-28800E Type 3Class IIIStyle, EN 61326-1CISPR 11 Group 1Class |
Key Features
- Supports USB, USB Mini-Port, Bluetooth, and WiFi interfaces for easy data transfer and remote access.
- Capable of measuring frequency, THD voltage and current, active/reactive/apparent power, and energy metrics simultaneously.
- Equipped with a rechargeable Li-ion battery offering 9 hours battery life for portable use.
- Designed for industrial applications with a CAT IV 600 V/CAT III 1000 V safety rating and IP50 protection.
- Operates reliably from -10°C to 50°C with 16-bit high-fidelity waveform capture.
- Ideal for NEC-style load studies, utility meter comparisons, and power quality logging.
- Auto-detects and scales flexible current probes up to 1500 A for versatile measurements.
Product Description
Fluke FLUKE-1734/INTL is a portable three-phase power energy monitor and logger designed for industrial electrical systems. It offers high-accuracy measurements with ±(0.2% + 0.01%) accuracy and 16-bit resolution, ensuring detailed and reliable data capture across voltage up to 500 V. This device is equipped with USB, USB Mini-Port, Bluetooth, and WiFi connectivity options to facilitate easy data transfer and remote monitoring capabilities.
The instrument's Li-ion rechargeable battery supports up to 9 hours of operation, making it convenient for field use where portability is crucial. Safety certifications for CAT IV 600 V and CAT III 1000 V provide confidence for service entrance and downstream circuit measurements. Its IP50 rating and operational temperature range of -10°C to 50°C make it suitable for demanding industrial environments.
Applications of the FLUKE-1734/INTL include conducting NEC-style load studies on distribution panels, comparing utility meter and feeder readings, and logging power and energy consumption to identify savings. It supports logging of rms voltage, rms current, THD for voltage and current, active/reactive/apparent power, power factor, and energy simultaneously, providing comprehensive power quality analysis.
The device automatically detects and adjusts flexible current probes scaling for ranges up to 1500 A, providing versatile measurement options without manual intervention. Its LCD display and 16-bit resolution sampling enable high-fidelity waveform capture for detailed power quality and consumption analysis.
Supports USB, USB Mini-Port, Bluetooth, and WiFi interfaces for data communication. Accurate measurements with ±(0.2% + 0.01%) accuracy and 16-bit resolution. Battery-operated with up to 9 hours life and rechargeable Li-ion battery.
Safety ratings of CAT IV 600 V and CAT III 1000 V suitable for industrial electrical systems. IP50 rated enclosure operating between -10°C and 50°C. Wide application including load studies, utility meter comparison, and power quality logging.
Auto-detection and scaling of flexible current probes up to 1500 A.
Fluke products are known for their precision and reliability in test and measurement applications. This monitor and logger is ideal for industrial, construction, HVAC, manufacturing, and power quality assessment use cases. Browse our full range of Data Loggers and Measurement Instruments at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement accuracy of this model is ±(0.2% + 0.01%).
It supports USB, USB Mini-Port, Bluetooth, and WiFi interfaces for data transfer and remote access.
The maximum operating voltage for this unit is 500 V.
It operates reliably within a temperature range of -10°C to 50°C.
It has safety ratings of CAT IV 600 V and CAT III 1000 V, suitable for industrial electrical systems.
The resolution of this model is 16 bits, allowing for high-fidelity waveform capture.
The dimensions are 198 mm in height, 167 mm in length, and 55 mm in width.
It is suitable for NEC-style load studies, utility meter comparisons, and power quality logging.
Yes, the FLUKE-1734/INTL is equipped with an LCD display for easy monitoring and data visualization.
The minimum measurement voltage for this model is 100 V.
