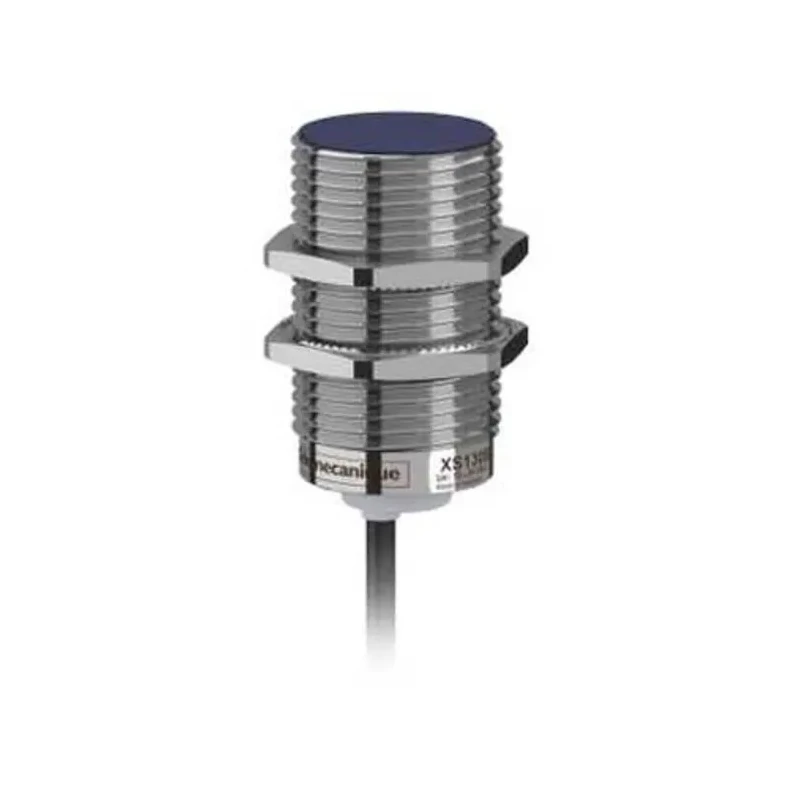

Telemecanique Sensors Threaded Barrel Inductive Proximity Sensor M30 x 1.5 NPN 24 V dc 10 mm Detection XS130BLNAL2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 57mm |
| Model | XS130BLNAL2 |
| Depth | 36mm |
| IP Rating | IP65, IP67 |
| Width | 36mm |
| Mount Type | Flush |
| Housing Material | Nickel Plated Brass |
| Output type | NPN |
| Series | XS |
| Maximum Operating Temperature | 70°C |
| Thread Size | M30 x 1.5 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Shielding | Shielded |
| Maximum Switching Frequency | 500Hz |
| Maximum Supply Voltage | 24V dc |
| Maximum Detection | 10mm |
Key Features
- The sensor features a threaded barrel body style with M30 x 1.5 thread size for secure mounting.
- It operates at 24 V DC supply voltage with a maximum switching frequency of 500 Hz.
- The output type is NPN, with a switching current of 200 mA, suitable for integration with PLCs and control systems.
- Built with nickel-plated brass housing, it offers IP65 and IP67 ingress protection for robust industrial environments.
- Operating temperature range is from -25°C to 70°C, making it suitable for harsh conditions.
- This shielded inductive proximity sensor is flush mountable and equipped with cable terminals for easy installation.
- Complies with CE, CSA, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, and UL standards for reliability and safety.
Product Description
Telemecanique Sensors XS130BLNAL2 Threaded Barrel Inductive Proximity Sensor with a 10 mm maximum detection range operates on 24 V DC and features a high switching frequency of 500 Hz, designed for precision metal detection in industrial automation systems.
This model includes a nickel-plated brass threaded barrel body measuring 57 mm in length and 36 mm in both width and depth. It is shielded and flush mountable to provide durability and versatility in installation.
The sensor offers an NPN output type with a 200 mA switching current suitable for integration with programmable logic controllers, enhancing automation control and process monitoring in manufacturing, packaging, robotics, and material handling applications.
With a rugged IP65 and IP67 rating, the XS130BLNAL2 ensures protection against dust and water ingress, accommodating harsh environmental conditions such as vibration, shock, and temperature variations from -25°C to 70°C.
Certified to CE, CSA, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, and UL standards, this sensor combines compliance with robust technology for reliable operation in railway systems, mobile equipment, lifts, escalators, and general factory automation.
The sensor features a threaded barrel body style with M30 x 1.5 thread size for secure mounting. Operates at 24 V DC supply voltage with a maximum switching frequency of 500 Hz. NPN output type with a 200 mA switching current compatible with PLCs.
Nickel-plated brass housing with IP65 and IP67 ratings for durability. Operating temperature from -25°C to 70°C suitable for harsh environments. Shielded and flush mountable design for versatile installation. Compact dimensions: 57 mm length, 36 mm width and depth.
Complies with CE, CSA, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, and UL standards. Explore the Telemecanique Sensors range on EnvMart for advanced automation and control gear solutions that meet stringent industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 10 mm.
It operates at a supply voltage of 24 V DC.
This model features an NPN output type.
The maximum switching frequency is 500 Hz.
The sensor has a length of 57 mm, and both width and depth of 36 mm.
The operating temperature range is from -25°C to 70°C.
The housing is made of nickel-plated brass.
It supports flush mounting for installation.
It has IP65 and IP67 ingress protection ratings.
The sensor has a switching current capacity of 200 mA.
It complies with CE, CSA, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, and UL standards.
Yes, it is designed for use in industrial automation systems, including manufacturing and robotics.
