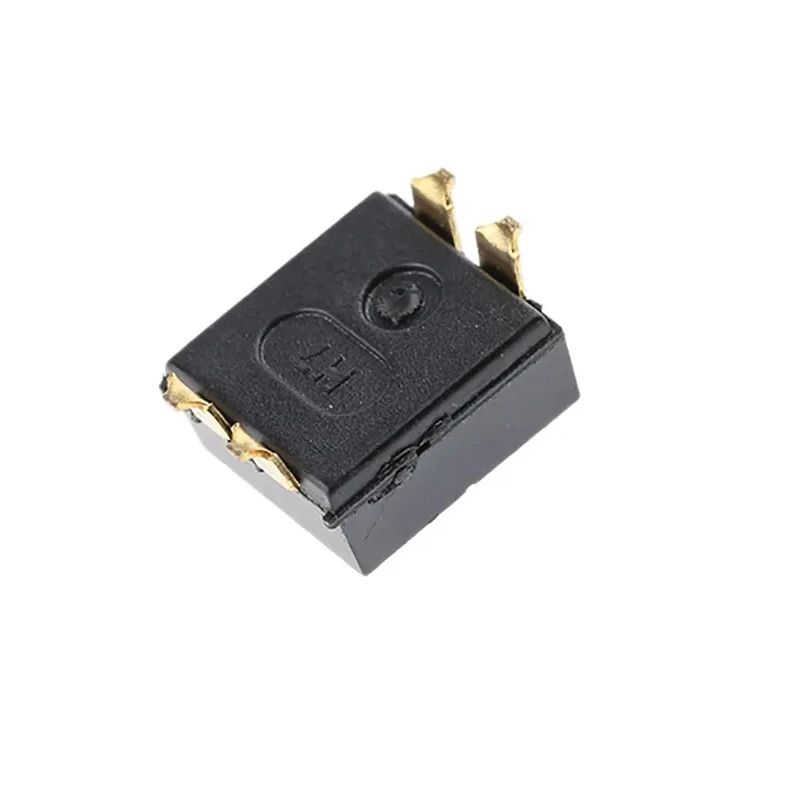

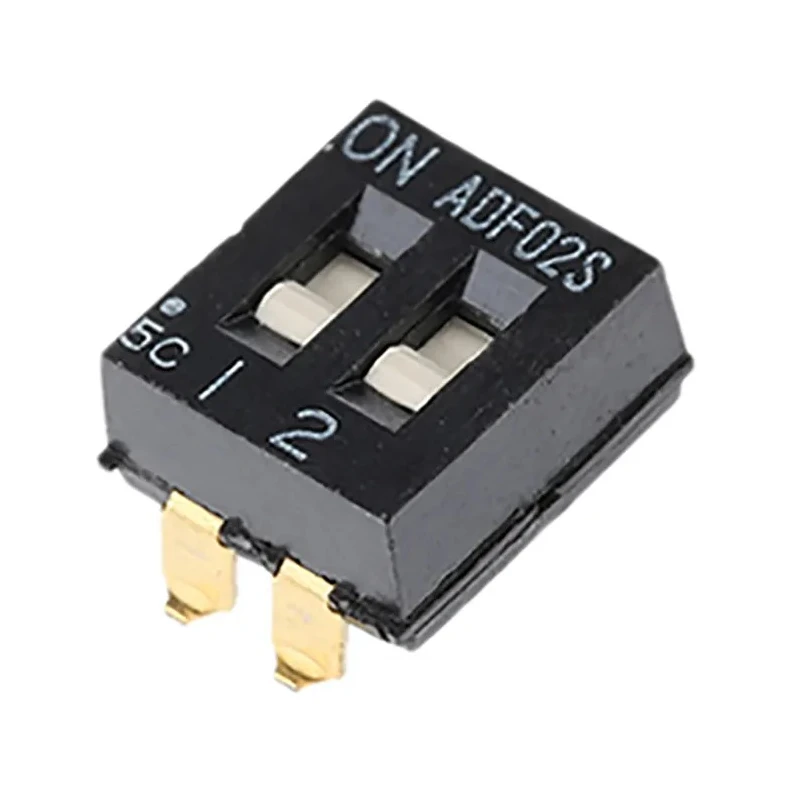

TE Connectivity Slide Rotary Coded DIP Switch Surface Mount ADF02S04

TE Connectivity ADF02S04 Slide Rotary Coded DIP Switch Surface Mount is a precision rotary coded DIP switch designed for electronic applications requiring reliable and durable switching solutions. It features a flush actuator slide switch design, enhancing operational efficiency while minimizing contamination risks. The high pressure wiping contact ensures consistent performance even after exposure to aqueous or solvent cleaning, without requiring tape seal protection.

This switch withstands harsh manufacturing processes including vapour phase reflow and wave soldering, making it suitable for modern PCB assembly lines. With a low contact resistance of 50 milliohms and insulation resistance rated at 1000 MΩ at 100 Vdc, it delivers excellent electrical characteristics for signal integrity and safety.

The mechanical life of 1000 cycles assures long-term operational reliability. Its surface mount design facilitates space-saving PCB layouts in electronics, automation, and control systems.

Commonly employed in industrial automation, control equipment, instrumentation, and electronics manufacturing, this rotary coded DIP switch enables precise configuration and adjustment of electronic circuits.

The switch is designed for flush actuator slide operation. It withstands vapour phase reflow and wave soldering processes. Features a low contact resistance of 50 milliohms. Insulation resistance is 1000 MΩ at 100 Vdc. Mechanical life spans 1000 cycles ensuring durability.

Suitable for applications requiring reliable rotary encoded switching. Mount type is surface mount for compact PCB integration. Actuator type is slide for precise control. Explore more from the TE Connectivity range of Rotary Coded DIP Switches and surface mount components available at EnvMart for your industrial and electronic project needs.
