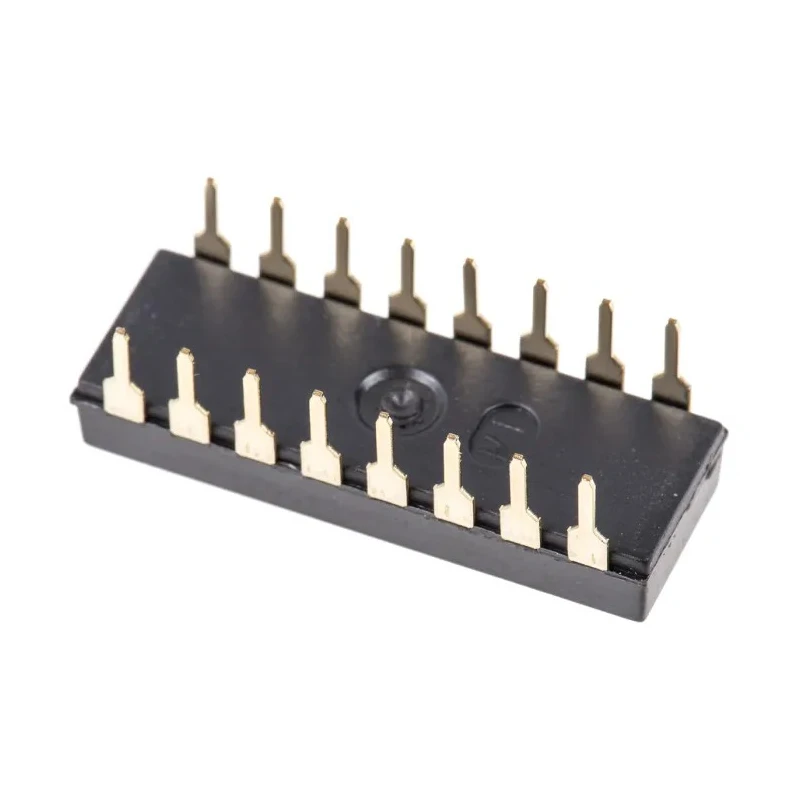

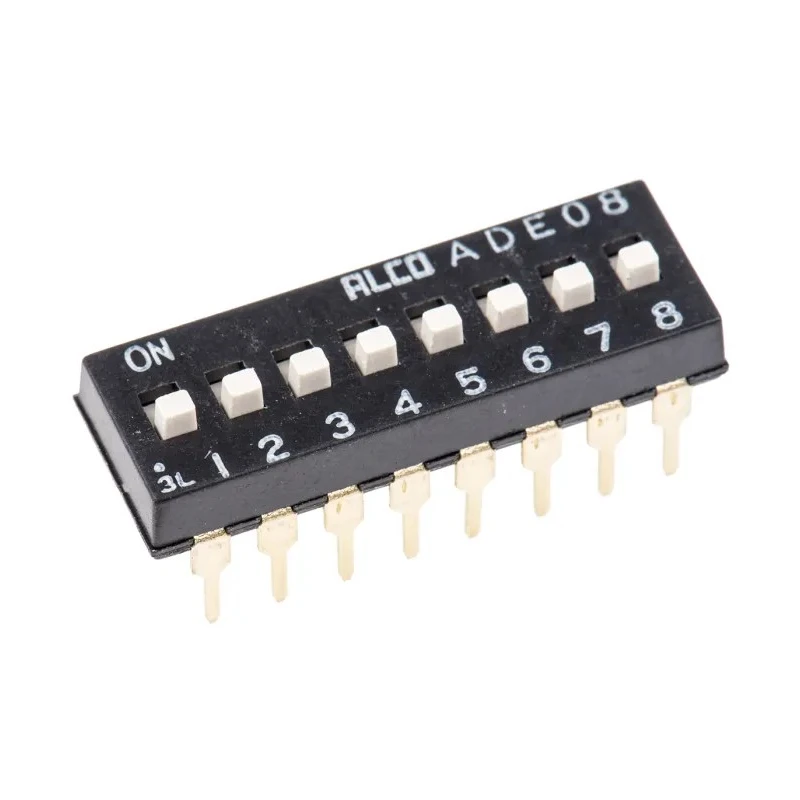

TE Connectivity Slide Rotary Coded DIP Switch Through Hole with 50mΩ Contact Resistance ADE0804
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | ADE0804 |
| Mount Type | Through Hole |
| Actuator Type | Slide |
| Contact Resistance | 50mΩ |
Key Features
- The switch features a slide actuator for precise rotary coding.
- Designed for through hole mounting with a 7.5 x 3.5 mm size and 2.54 mm centerline pitch.
- Gold flash plated contacts ensure reliable low resistance performance.
- Black PPS housing provides durability and withstands solvent and aqueous cleaning.
- High pressure wiping contact design allows for automated insertion and cleaning.
- Resistant to vapor phase reflow and wave soldering conditions for robust assembly.
- Contact resistance maintained at a maximum of 50 milliohms.
Product Description
TE Connectivity ADE0804 is a slide Rotary Coded DIP Switch designed for through hole mounting applications. It features a compact size of 7.5 by 3.5 mm and a 2.54 mm centerline pitch, ideal for circuit board integration in electrical and automation systems.
The switch housing is constructed from durable black PPS material, combined with gold flash plated contacts for low resistance and corrosion resistance. Its high pressure wiping contact technology ensures reliable electrical connectivity, suitable for aqueous or solvent cleaning processes without requiring tape sealing.
This DIP switch supports vapor phase reflow and wave soldering, ensuring compatibility with high volume manufacturing environments. The slide actuator allows for precise rotary coding essential for switching applications.
The ADE series features extended slide actuators, improving operational ease. This switch exhibits a maximum contact resistance of 50mΩ, ensuring consistent signal integrity.
Applications include use in electrical equipment, industrial automation systems, and embedded control circuits. Its rugged design suits manufacturing and laboratory environments requiring reliable mechanical switch performance.
The switch features a slide actuator for precise rotary coding. Designed for through hole mounting with a 7.5 x 3.5 mm size and 2.54 mm centerline pitch. Gold flash plated contacts ensure reliable low resistance performance.
Black PPS housing provides durability and withstands solvent and aqueous cleaning. High pressure wiping contact design allows for automated insertion and cleaning. Resistant to vapor phase reflow and wave soldering conditions for robust assembly.
Contact resistance maintained at a maximum of 50 milliohms. Explore more electronic switches and socket options at EnvMart for your automation and industrial control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact resistance of the ADE0804 switch is maintained at a maximum of 50 milliohms.
This model is designed for through hole mounting applications.
The switch has a compact size of 7.5 x 3.5 mm.
It features a slide actuator for precise rotary coding.
The housing is made from durable black PPS material, and the contacts are gold flash plated for low resistance and corrosion resistance.
Yes, it is designed with high pressure wiping contact technology that allows for automated insertion and cleaning.
Yes, it is resistant to vapor phase reflow and wave soldering conditions, making it suitable for high volume manufacturing environments.
It is suitable for use in electrical equipment, industrial automation systems, and embedded control circuits.
The centerline pitch of the ADE0804 switch is 2.54 mm.
The country of origin for this switch is India.
The gold flash plating on the contacts ensures reliable low resistance performance and corrosion resistance.
The slide actuator allows for precise rotary coding, which is essential for various switching applications.
