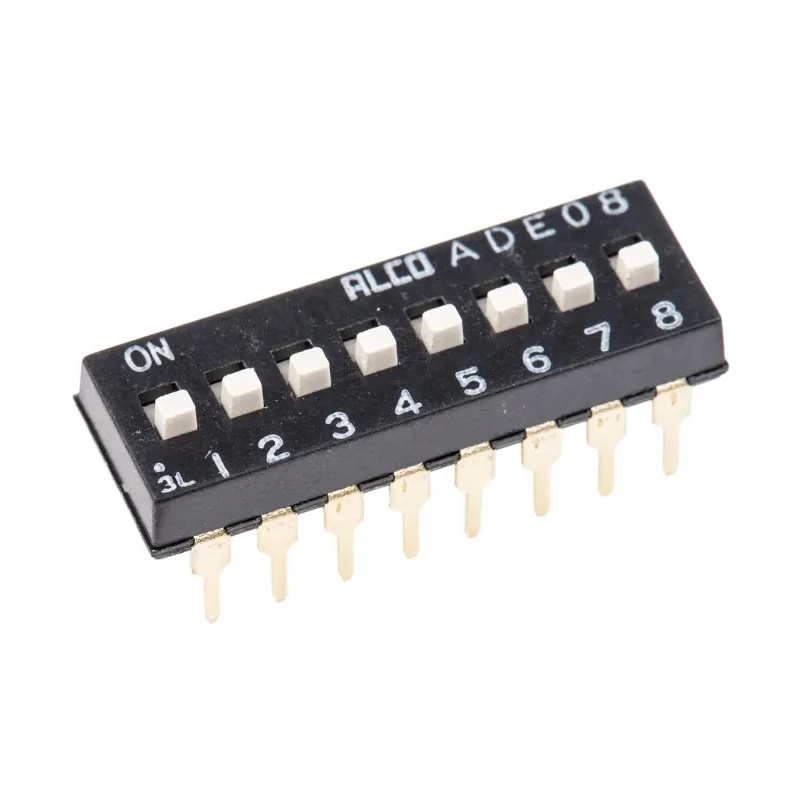

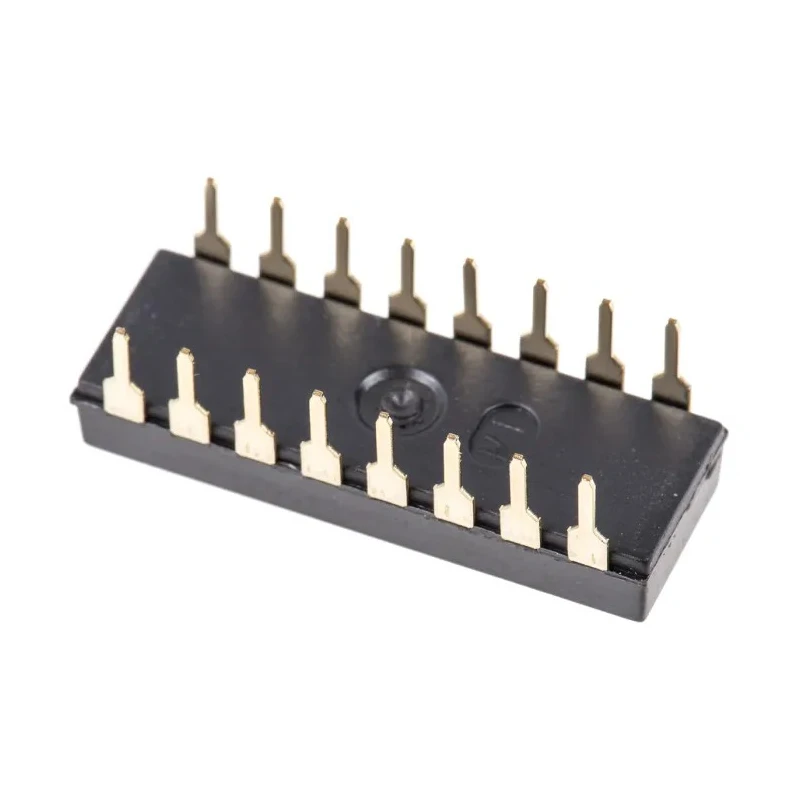

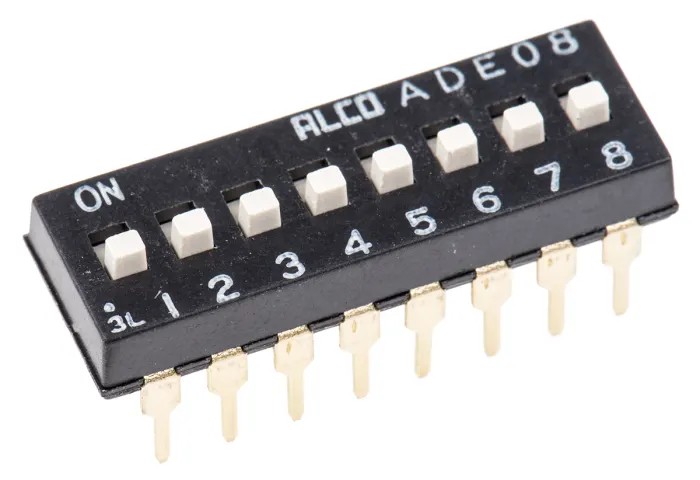

TE Connectivity Slide Rotary Coded DIP Switch Through Hole ADE0804
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | ADE0804 |
| Mount Type | Through Hole |
| Actuator Type | Slide |
| Contact Resistance | 50mΩ |
| 8 way extended actuator DIL switch,0.4VABrand | TE Connectivity |
Key Features
- Mount type is through hole for secure PCB installation.
- Slide actuator design ensures precise switching action.
- Gold flash plated contacts provide excellent conductivity and corrosion resistance.
- Black PPS housing enhances durability and electrical insulation.
- Extended slide actuators provide ease of operation and high pressure wiping contact.
- Supports aqueous or solvent cleaning without tape seal.
- Withstands vapor phase reflow and wave soldering conditions.
- Auto-insertable design improves manufacturing efficiency.
Product Description
TE Connectivity ADE0804 Slide Rotary Coded DIP Switch Through Hole is part of the ADE series DIP switches designed for reliable long-term performance in electrical and automation applications. This switch features a through hole mount type and a slide actuator, making it suitable for secure PCB assembly. The gold flash plated contacts ensure excellent electrical conductivity with a low contact resistance of 50 mΩ.
The switch housing is made from black PPS material, providing high durability and electrical insulation. Extended slide actuators facilitate easy operation, and the high pressure wiping contact mechanism ensures robust contact integrity over time. These switches tolerate aqueous or solvent-based cleaning processes without the need for tape sealing, enabling efficient manufacturing cleaning techniques.
The ADE0804 model withstands vapor phase reflow and wave soldering temperatures, confirming its resilience in harsh soldering environments. The switch is auto-insertable, supporting automated assembly lines to enhance production throughput.
Through hole mounting for secure PCB integration. Slide type actuator for reliable switching. Gold flash plated contacts ensure low resistance and corrosion protection. Black PPS housing for mechanical and electrical robustness.
High pressure wiping contact supports effective cleaning. Compatible with vapor phase reflow and wave soldering. Auto-insertable design for automated assembly.
This Rotary Coded DIP Switch is suitable for various industrial, automation, and electronic manufacturing applications requiring precise and reliable switch functionality. It improves product reliability and reduces maintenance needs. Explore more switches and components in the Electronics & Electricals category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ADE0804 features a through hole mount type for secure PCB installation.
The contact resistance of this model is 50 mΩ, ensuring excellent electrical conductivity.
This switch utilizes a slide actuator design, which ensures precise switching action.
The housing of the ADE0804 is made from black PPS material, which provides high durability and electrical insulation.
Yes, it can withstand vapor phase reflow and wave soldering temperatures, making it suitable for harsh soldering environments.
Yes, the switch features an auto-insertable design that supports automated assembly lines to enhance production efficiency.
This model supports aqueous or solvent cleaning processes without the need for tape sealing, facilitating efficient cleaning techniques.
The ADE0804 is suitable for various industrial, automation, and electronic manufacturing applications requiring reliable switch functionality.
The ADE0804 is an 8-way extended actuator DIL switch, providing multiple switching options.
The gold flash plated contacts ensure low contact resistance and provide corrosion protection, enhancing the switch's performance.
The high pressure wiping contact mechanism supports effective cleaning and ensures robust contact integrity over time.
The ADE0804 is manufactured in India.
