RS PRO Green Yellow 16 mm² Tri-Rated Hook Up Wire Annealed Copper 600V 100 m 628-5409

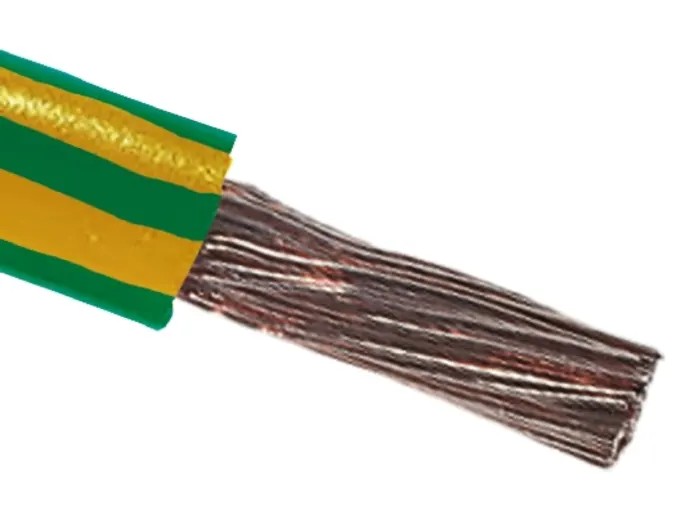

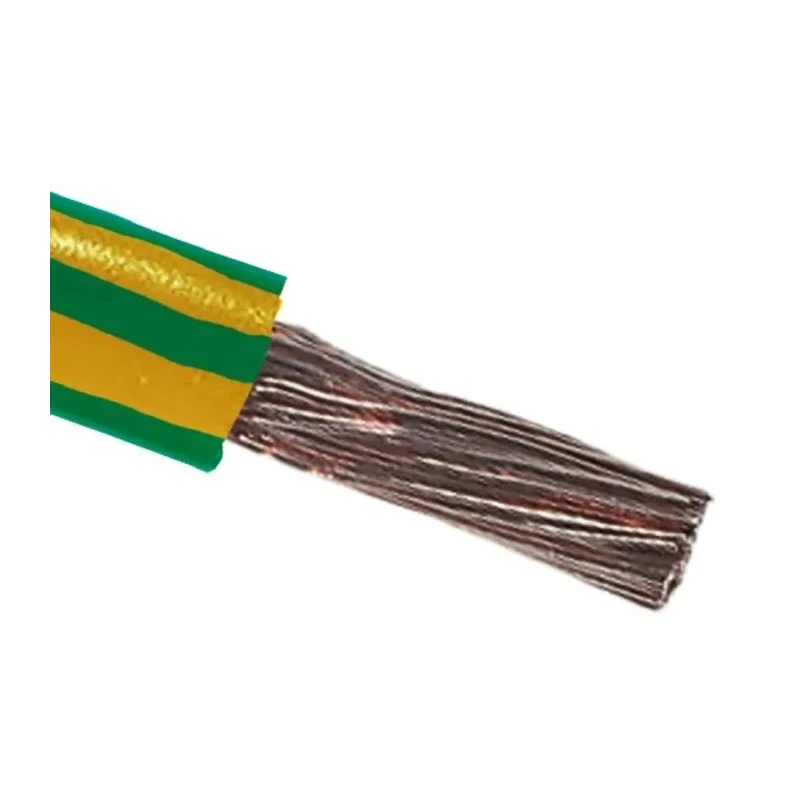

RS PRO 628-5409 Hook Up Wire is a high quality tri-rated cable featuring a 16 mm² cross-sectional area with green and yellow insulation colors. It is engineered with annealed copper conductors consisting of 115 strands, each 0.4 mm in diameter, providing enhanced flexibility and conductivity. The cable length is 100 meters with a robust 8.3 mm outside diameter.

The cable uses polyvinyl chloride (PVC) for its jacket material, which offers fire resistance, flame retardancy, and low smoke halogen free properties, making it suitable for use in demanding industrial and electrical environments. This single-core wire supports a voltage rating of 600 volts and operates reliably at temperatures ranging from -15°C to a maximum of 105°C.

Certified to meet the standards UL 1283, UK BS 6231, and CSA C22.2 Type TEW, this Hook Up Wire is tri-rated for use globally, ensuring applicability across European and North American markets. Its class 5 flexibility and compliant construction make it ideal for control switchgear applications including motor starters, instrumentation panels, and motor control centers.

Typical industrial applications include electrical cabinets, switch control in power switchgear, relay and instrumentation panels, and internal connectors in rectifier equipment. The tri-rated PVC insulation allows this cable to perform well in high temperature environments and rigorous conditions, providing durability and safety.

This product is new and of United Kingdom origin, representing the trusted RS PRO series designed to uphold rigorous quality standards for professional electrical wiring tasks. The package includes the full 100 m spool of hook-up wire with the described specifications.

The cable features annealed copper conductor strands for excellent conductivity and flexibility. It has 115 strands of 0.4 mm diameter each, providing class 5 flexibility. The jacket is made of polyvinyl chloride which is fire resistant, flame retardant and low smoke halogen free.

This single-core hook-up wire is 100 meters long with an outside diameter of 8.3 mm. Complies with UL 1283, UK BS 6231, CSA C22.2 Type TEW standards for international use. Suitable for industrial, electrical, automation, and control switchgear applications.

Specifically used in panel building, relay and instrumentation panels, motor control centers and motor starters. Designed for harsh conditions with minimum operating temperature down to -15°C.

Explore more from RS PRO and discover extensive options within Wire & Cables at EnvMart. This hook-up wire is engineered to meet professional electrical and automation needs with reliability and compliance to global standards.
