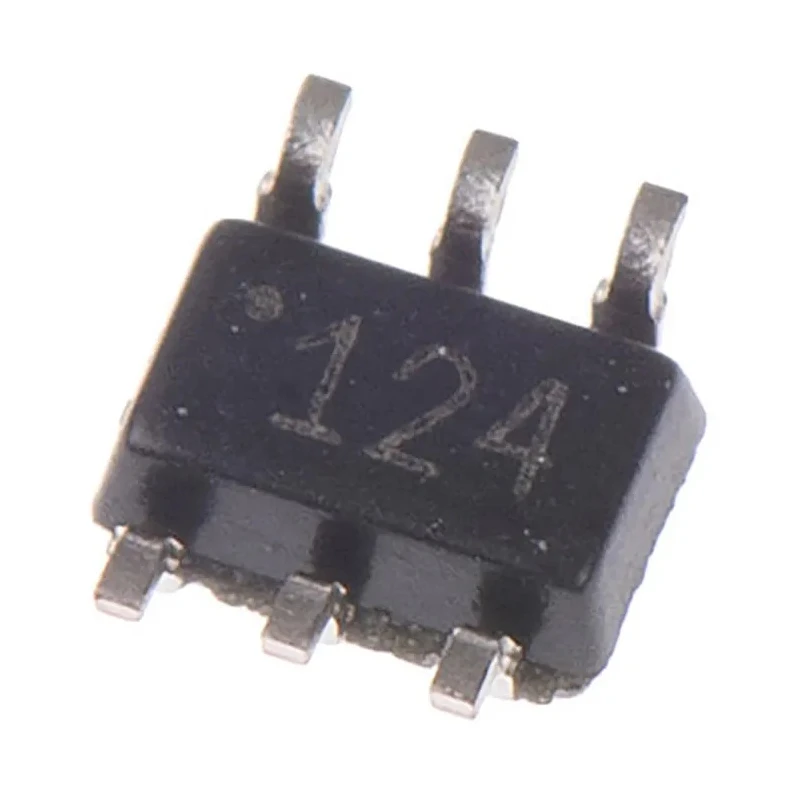

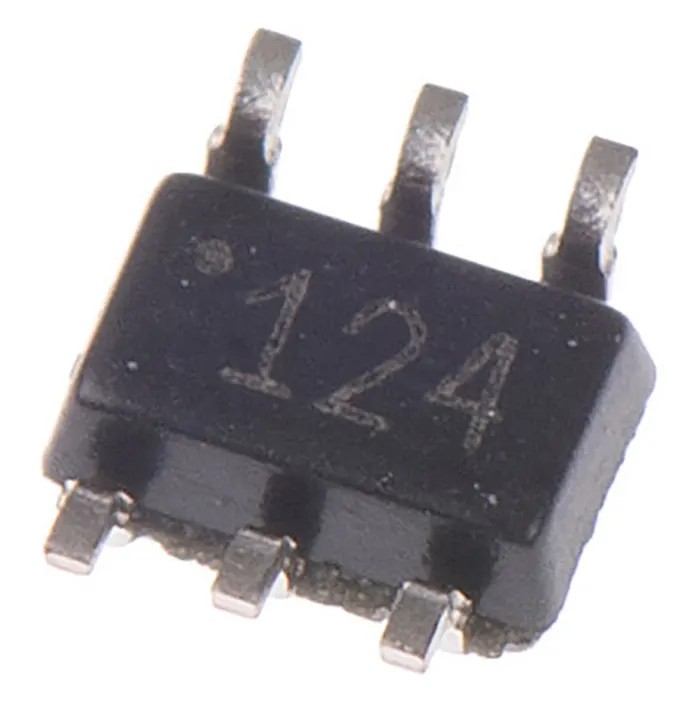

Texas Instruments Analogue Switch 1 CMOS Single SPDT Multiplexer 6-Pin SOT-323 SN74LVC1G3157DCKR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 900μm |
| Length | 2mm |
| Model | SN74LVC1G3157DCKR |
| Width | 1.25mm |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Series | SN74LVC1G3157 |
| Configuration | Single SPDT |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -40°C |
| Operating Voltage | 1.65 to 5.5 V |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 1.65V |
| Multiplexer/Demultiplexer | Multiplexer |
| Maximum On State Resistance | 50Ω |
Key Features
- Operates with a supply voltage range of 1.65 V to 5.5 V for flexible use.
- Features a single SPDT switch configuration suitable for multiplexing applications.
- Compact 6-pin SOT-323 surface mount package measuring 2 mm x 1.25 mm x 0.9 mm.
- Designed for industrial temperature range operation from -40°C to 85°C.
- Low maximum on state resistance of 50 ohms enhancing signal integrity.
- Compatible with LVTTL/TTL input and LVCMOS output logic levels.
- Includes automotive standard AEC-Q100 for high reliability in automotive applications.
- Offers latch-up immunity exceeding 100 mA and ESD protection per JESD standards.
Product Description
Texas Instruments SN74LVC1G3157DCKR is an analogue switch featuring a single CMOS SPDT (Single Pole Double Throw) multiplexing capability. This device comes in a compact 6-pin SOT-323 surface mount package with dimensions of 2 mm length, 1.25 mm width, and 900 μm height, ideal for space-constrained applications.
Operating voltage ranges from 1.65 V to 5.5 V, making it suitable for low-voltage logic systems. The switch provides a maximum on state resistance of 50 ohms which ensures minimal signal loss and efficient switching performance.
Designed to operate reliably in extended industrial temperature conditions of -40°C to 85°C, this multiplexer offers high tolerance in harsh environments. The device meets the automotive standard AEC-Q100, indicating its suitability for automotive electronics.
Compatibility is ensured with input LVTTL/TTL logic levels and output LVCMOS, enabling seamless interface with a wide range of digital circuits. It provides latch-up immunity exceeding 100 mA as per JESD 78 Class II and ESD protection surpassing JESD 227 standards, enhancing device robustness and longevity.
Operates between 1.65 V and 5.5 V supply voltage. Single SPDT switch configuration for multiplexing. Compact SOT-323 package (6-pin) with precise dimensions. Industrial operating temperature range (-40°C to 85°C). Low on-state resistance of 50 ohms for high signal fidelity.
Logic compatibility with LVTTL/TTL input and LVCMOS output. Conforms to AEC-Q100 automotive reliability standard. Enhanced latch-up and ESD protection for circuit integrity.
This analogue switch IC is well-suited for use in industrial, automotive, electronic component assembly, and semiconductor-based control applications where reliable, low-voltage switching is critical. Its compact size and compliance with automotive quality standards make it ideal for modern embedded systems and circuit designs.
Explore more multiplexer and deMultiplexer ICs to enhance your specialized electronic product designs and systems through EnvMart's comprehensive catalog.
