Phoenix Contact OTTA 6-T Series Feed Through Terminal Block Bolt 800V Grey 0.1-6mm² Cable CSA 0790446

Free Delivery in India | Lowest Global Shipping Charges

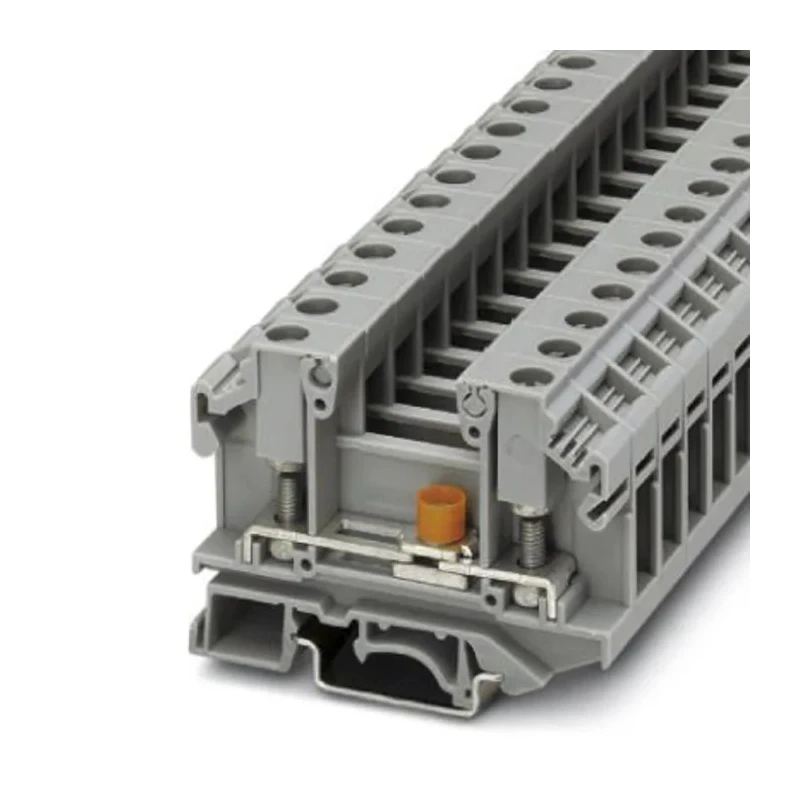

Phoenix Contact OTTA 6-T Series Feed Through Terminal Block Bolt 800V Grey 0.1-6mm² Cable CSA 0790446

Name: Phoenix Contact OTTA 6-T Series Feed Through Terminal Block Bolt 800V Grey 0.1-6mm² Cable CSA 0790446
Brand: PHOENIX CONTACT
SKU: 200382
Price: 16.96 USD
Availability: InStock



Category Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	800V
Brand	Phoenix Contact
Colour	Grey
Model	0790446
Series	OTTA 6-T
Termination Type	Bolt
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-60°C
Standards/Approvals	UL, CSA, DNV, EAC, IEC 60947-7-1, LR
Cable CSA	0.1, 6mm²

Key Features

Operates within a temperature range from -60°C to 105°C.
Features bolt type termination for secure cable connection.
Accepts M4 or M6 crimp terminal rings for flexible installation.
Hinged cover wings provide quick and secure connection and cover live metal parts for shock prevention.
Includes concealed captive spring loaded spacers to prevent loosening from vibration.
Universal foot allows mounting on top-hat and G-profile rails.
Complies with UL, CSA, DNV, EAC, IEC 60947-7-1, and LR standards.

Product Description

Phoenix Contact 0790446 OTTA 6-T Series feed through terminal block bolt is a robust electrical connector designed for safe and reliable cable termination. It supports a cable cross-sectional area ranging from 0.1 to 6mm² and operates at a nominal voltage of 800V in grey color housing. This terminal block is engineered for industrial and electronic applications requiring secure bolted connections.

The terminal block functions reliably in temperature environments from -60°C minimum to 105°C maximum, suitable for harsh environments. It uses bolt termination type and accepts both M4 (6mm² CSA type) and M6 (25mm² CSA type) crimp terminal rings, offering flexibility in installation.

The hinged cover wings facilitate a quick, secure connection by holding the nut securely during wiring. When open, the bolt accepts the ring terminal easily; closing the wings covers live metal parts to prevent electrical shock. Vibrations are mitigated by concealed captive spring-loaded spacers securing the screws against loosening.

Mounting versatility is provided by a universal foot compatible with both top-hat and G-profile DIN rails, allowing installation in various industrial switchboards and control panels. Compliance with multiple safety and quality standards including UL, CSA, DNV, EAC, IEC 60947-7-1, and LR ensures high product reliability and certification acceptance.

Operates at 800V with cable CSA 0.1 to 6 mm² capability. Supports temperature range of -60°C to 105°C for industrial application. Bolt termination with hinged wings for secure and safe connections. Concealed captive spring-loaded spacers prevent screw loosening from vibration.

Universal mounting foot fits top-hat and G-profile rails. Certified to UL, CSA, DNV, EAC, IEC 60947-7-1, and LR standards.

This Phoenix Contact OTTA 6-T terminal block is ideal for industrial electrical installations, control cabinets, distribution boards, and power electronics where durable and shock-protected bolted connections are critical. It supports applications in manufacturing, automation, and electrical engineering. Browse more Terminal Blocks and connectors on EnvMart for comprehensive electrical component solutions.
