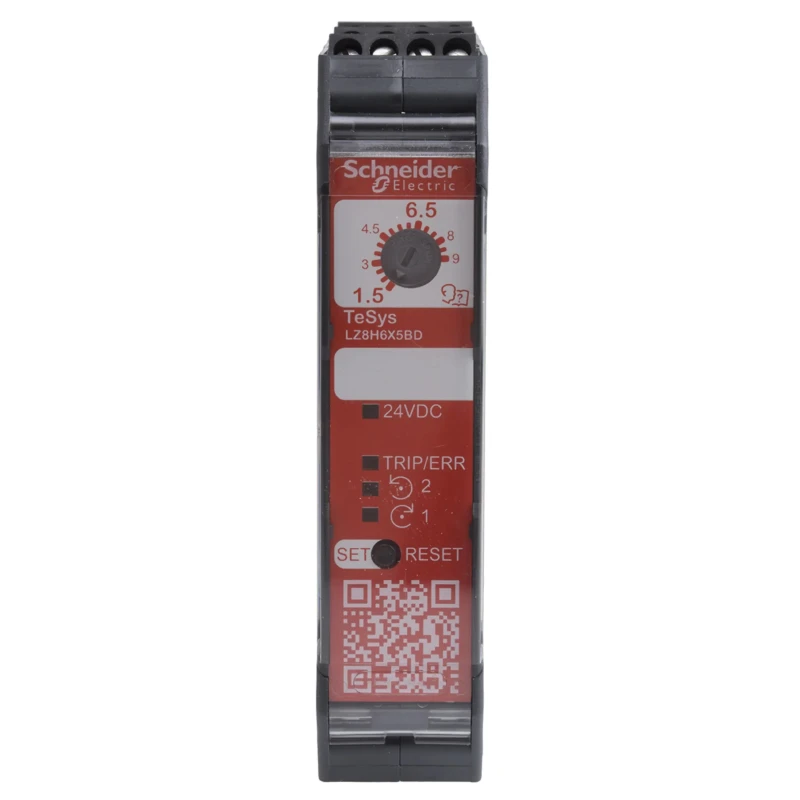

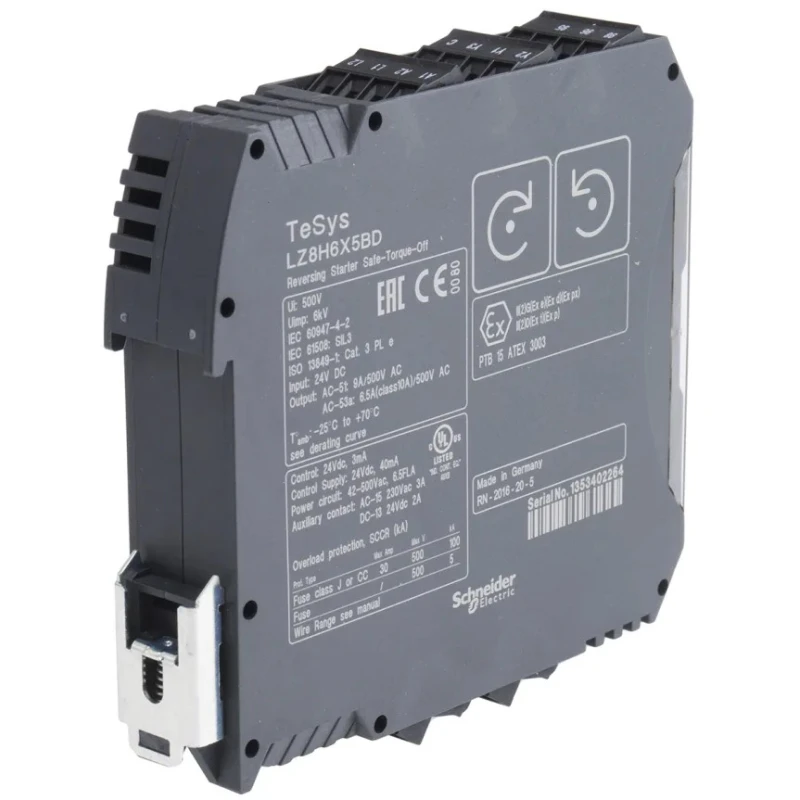

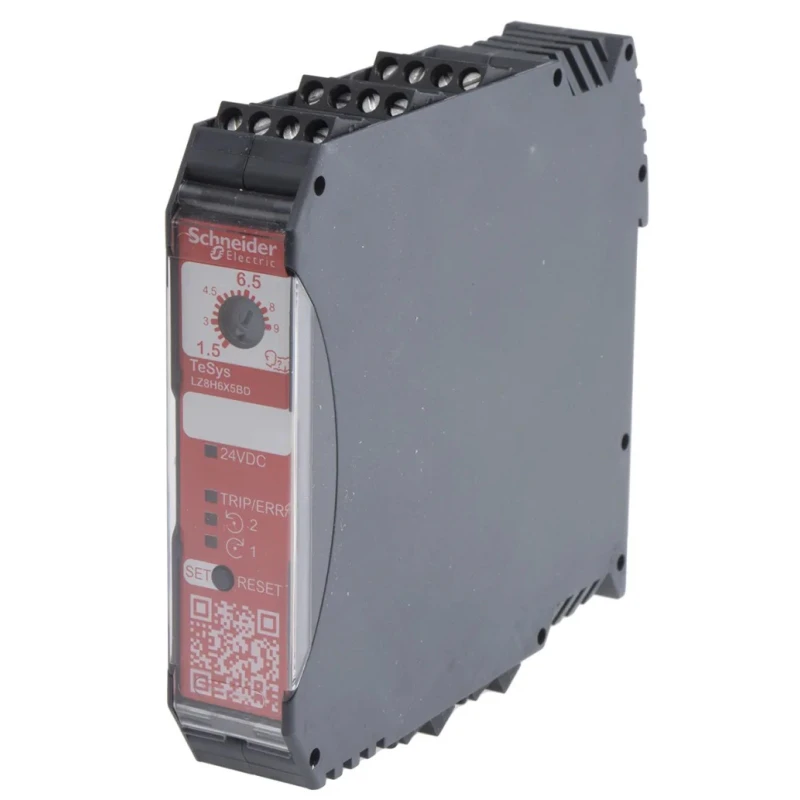

Schneider Electric TeSys H Advanced Motor Starter, Reversible, 500V AC, 3 kW, 3 Phase, IP20 LZ8H6X5BD

Schneider Electric LZ8H6X5BD is an advanced motor starter engineered for efficient control and protection of three-phase motors up to 3 kW power rating at 500 volts AC. Featuring reversible operation, IP20 protection rating, and compact design, this starter integrates seamlessly into a variety of industrial, manufacturing, and automation applications.

Designed to mount on DIN rails, it occupies minimal space with dimensions of 99 mm length, 22.5 mm width, and 114.5 mm depth. The device supports a 6.5 amp current rating across three poles, making it suitable for standard three-phase motor control circuits.

This starter is part of Schneider Electric’s TeSys H series, well-known for delivering professional-grade motor starter solutions with enhanced safety and control features. The LZ8H6X5BD model includes manual, electrical, or automatic reset options and offers overload protection along with forward and reverse running capabilities, providing comprehensive motor control.

The product complies with international standards such as ATEX, CE, cULus, IEC 60947-4-2, and UL 60947-4-1, ensuring suitability for hazardous area installation and industrial deployment.

Its IP20 ingress protection rating safeguards internal components against accidental contact and solid object intrusion, suitable for typical electrical enclosure environments.

Industrial sectors including electrical automation, manufacturing plants, HVAC systems, and machinery control rely on such advanced motor starters for efficient and reliable motor operation.

Supports reversible motor operation with manual, electrical, or automatic reset. Designed for DIN rail mounting with compact dimensions (99mm length, 22.5mm width, 114.5mm depth). Rated for 6.5A current with 3-pole configuration for three-phase systems.

Complies with ATEX, CE, cULus, IEC 60947-4-2, and UL 60947-4-1 standards for safety and reliability. Offers comprehensive motor protection including overload, forward and reverse running capabilities. Part of the TeSys H professional ultra-compact starter series from Schneider Electric.
