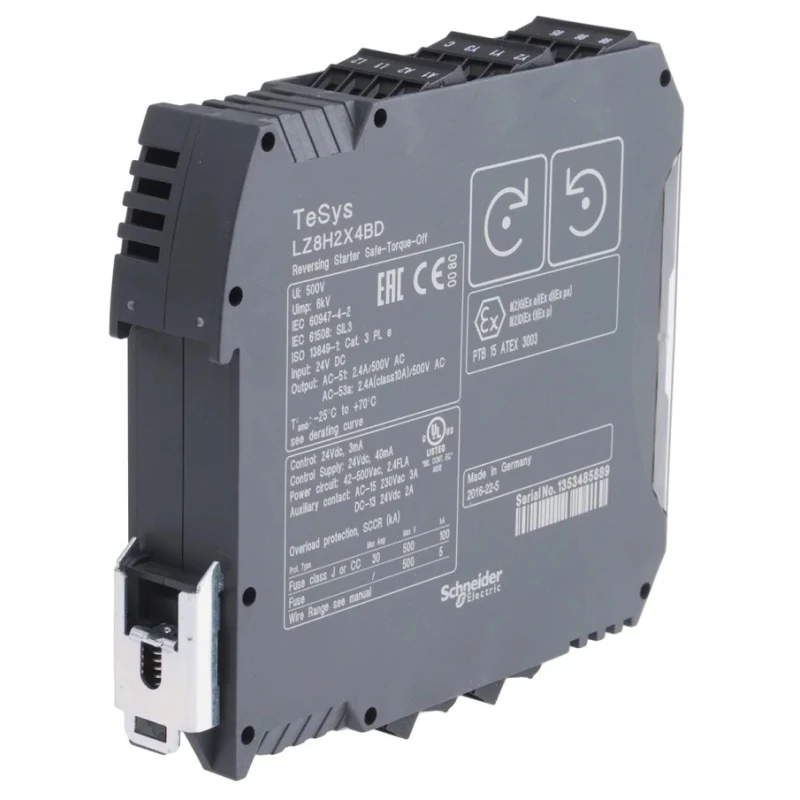

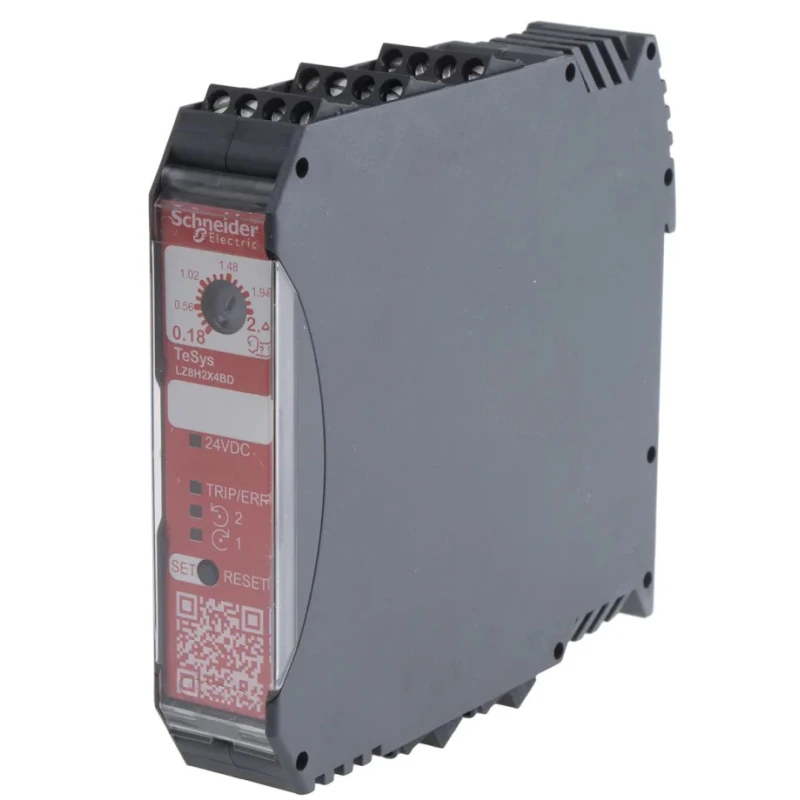

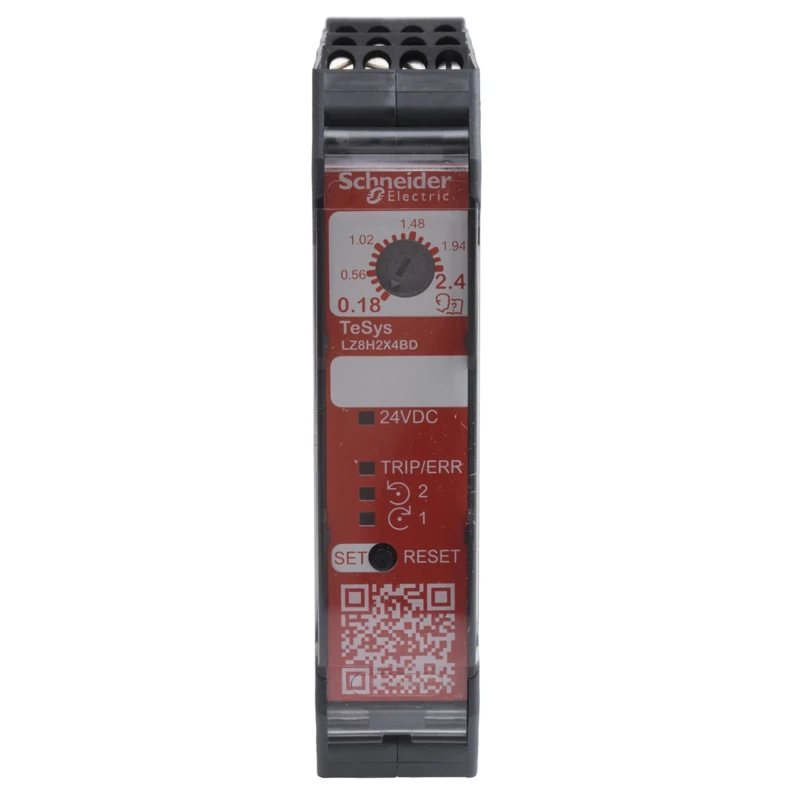

Schneider Electric TeSys H Advanced Motor Starter Reversible 3 Phase 500V AC 1.1 kW IP20 LZ8H2X4BD

Schneider Electric LZ8H2X4BD is an advanced motor starter in the professional TeSys H series, designed for reversible motor control and protection in industrial settings requiring reliable automation.

This motor starter operates at a power rating of 1.1 kW with a maximum voltage of 500V AC and supports 3-phase motors with a current rating of 2.4 A. It is built to mount easily on DIN rails and provides IP20-rated protection, making it suitable for use in clean factory and equipment rooms.

The device includes three poles and offers options for screw clamp or spring terminal connections to suit varying wiring preferences. Its design prioritizes safety and energy efficiency by incorporating overload protection and forward/reverse running capabilities.

Certified to multiple international standards such as ATEX, CE, cULus, IEC 60947-4-2, and UL 60947-4-1, the LZ8H2X4BD ensures compliance with industrial safety and quality benchmarks. The compact dimensions (99 mm length, 22.5 mm width, 114.5 mm depth) facilitate integration in panel boards and control cabinets.

This motor starter is ideal for applications in manufacturing plants, automation systems, and commercial motor control installations requiring precise, reliable motor management. Its reversibility feature further expands its use in complex motor-driven machinery.

Rated for 1.1 kW power at 500V AC supply voltage. Supports 3-phase operation with a current rating of 2.4 A. Equipped with IP20 protection rating suitable for indoor industrial environments. Mounts easily on standard DIN rails for convenient installation.

Features advanced safety monitoring and overload protection capabilities. Constructed as part of the reliable TeSys H series by Schneider Electric. Includes 3 poles with screw clamp or spring terminal connections. Complies with standards including ATEX, CE, cULus, IEC 60947-4-2, and UL 60947-4-1.

Compact dimensions with 99 mm length, 22.5 mm width, and 114.5 mm depth. Discover more professional Motor Starters and control products in the Automation & Control Gear category at EnvMart for industrial and commercial applications.
