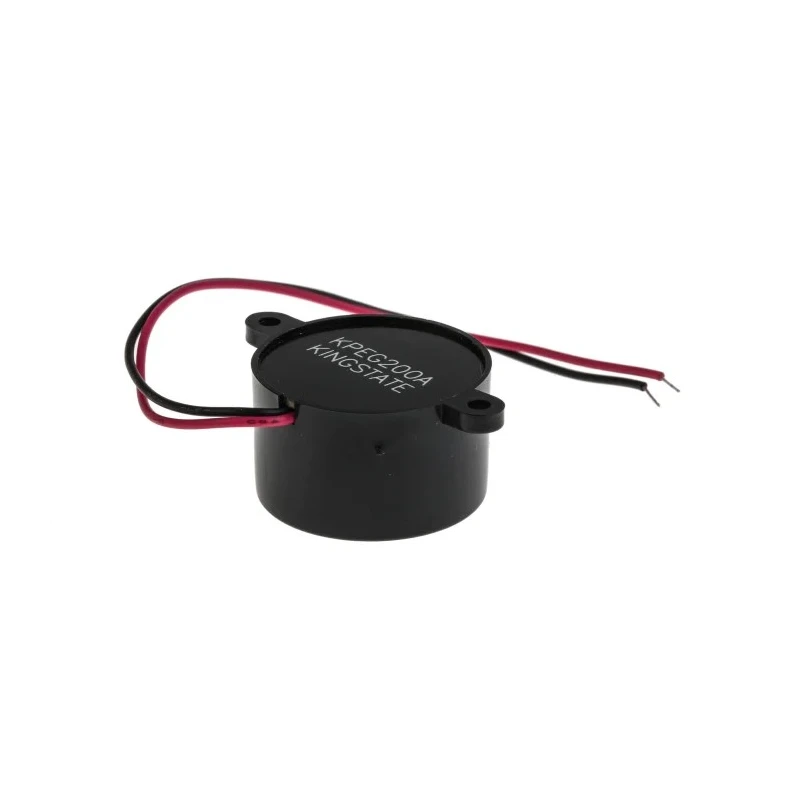

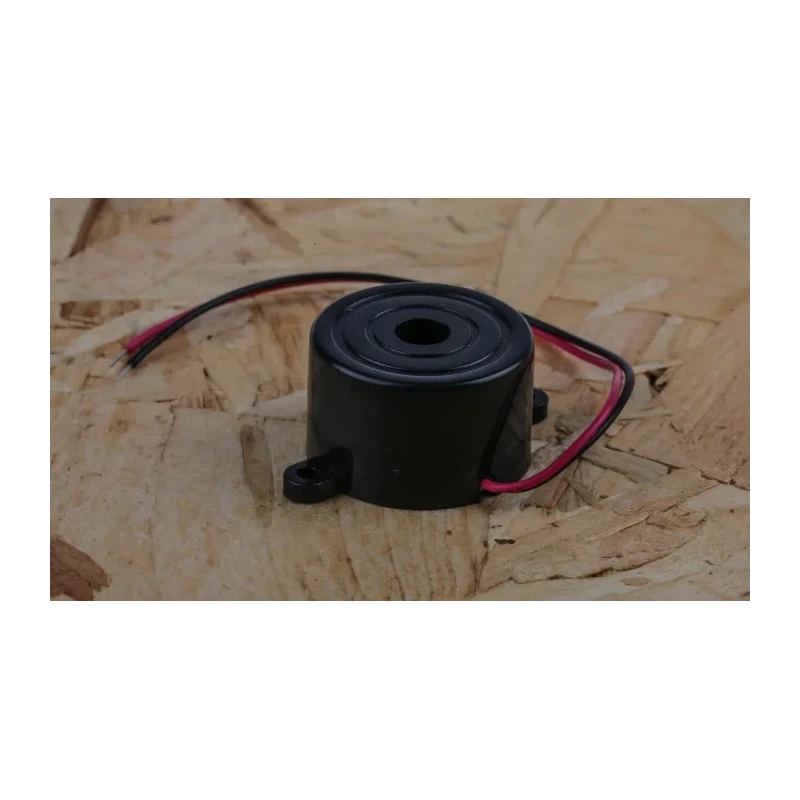

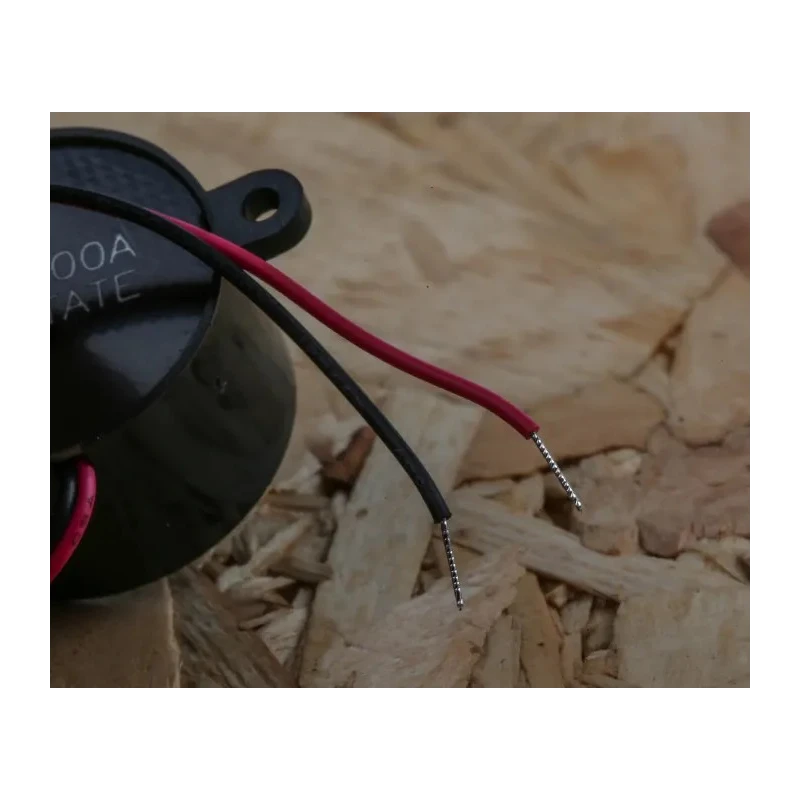

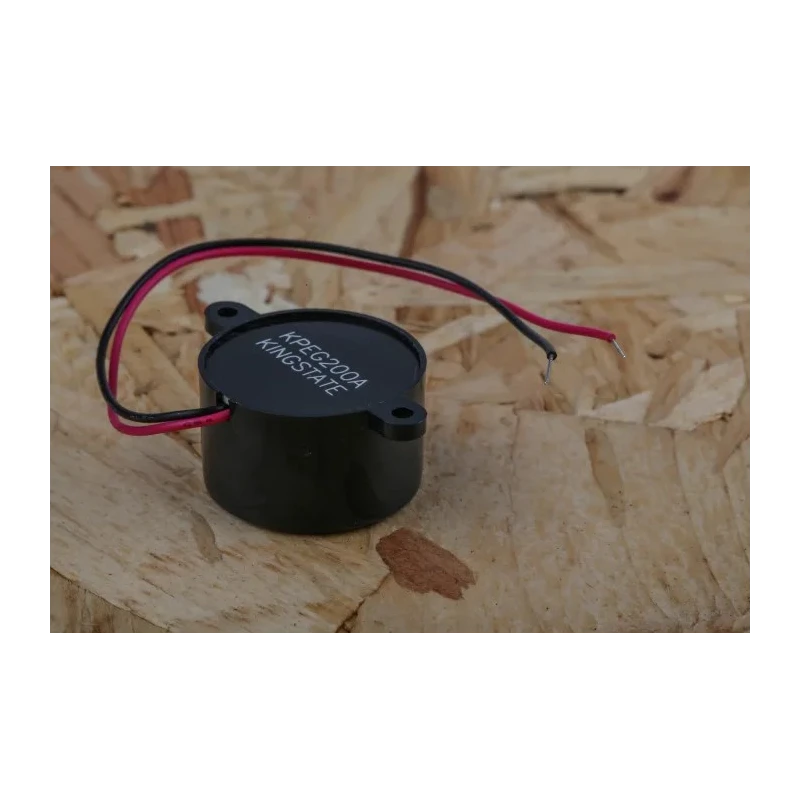

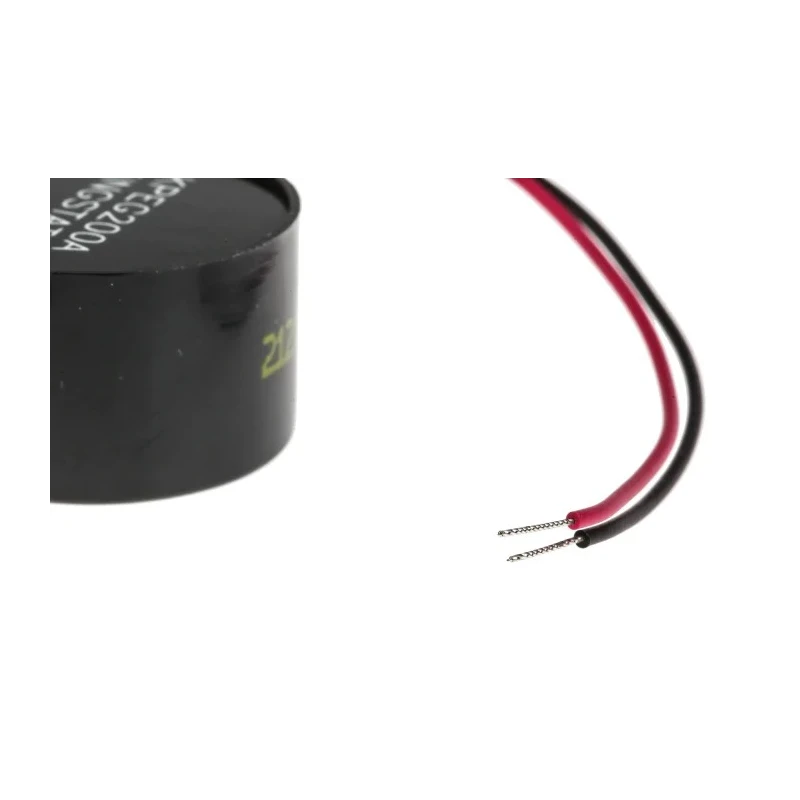

RS Pro 73 dB Panel Mount Continuous Internal 14.5 mm Piezo Buzzer Component 3 V DC Min 20 V DC Max 6221499P

RS Pro 6221499P Piezo Buzzer Component Panel Mount Continuous Internal combines high sound pressure level and robust construction for dependable electronic signaling. Operating from a 3 V DC minimum to 20 V DC maximum supply voltage, this buzzer delivers a continuous internal tone with 73 dB sound level, ideal for audible alerts in various applications.

Designed for panel mounting, it offers compact dimensions of 23.8 mm diameter, 14.5 mm height, and 34 mm length. The buzzer's ABS housing provides excellent resistance to shocks and chemicals, ensuring durability even in demanding environments.

It operates efficiently at a supply current of just 14 mA and supports a resonant frequency of 2.8 kHz, with a frequency range from 2600 Hz to 3.6 kHz, delivering crisp and clear sound output. The device is rated for temperatures from -30°C to 85°C, suitable for diverse industrial, commercial, and consumer electronics applications.

This component is widely used in alarms, telephone dial tones, toys, and game devices. Its internal drive circuitry allows for straightforward PCB mounting and wiring. The buzzer complies with RoHS standards, reflecting environmental responsibility.

Provides continuous tone operation for effective sound signaling. Internal drive type for integrated performance. Compact dimensions with 23.8 mm diameter and 14.5 mm height. Operates reliably within -30°C to 85°C temperature range.

Low supply current consumption of 14 mA ensures energy efficiency. Resonant frequency of 2.8 kHz with frequency range between 2600 Hz and 3.6 kHz. Robust ABS housing offers chemical and shock resistance for durable use. Flange mounting design facilitates secure panel installation.

Suitable for alarms, telephone dial tones, toys, and game sounds. Manufactured to meet RoHS compliance standards.

This RS Pro piezo buzzer is engineered to meet demanding industrial, laboratory, consumer electronics, and telecommunications needs. Its reliable performance and ease of installation make it an ideal choice for sound signaling components.
