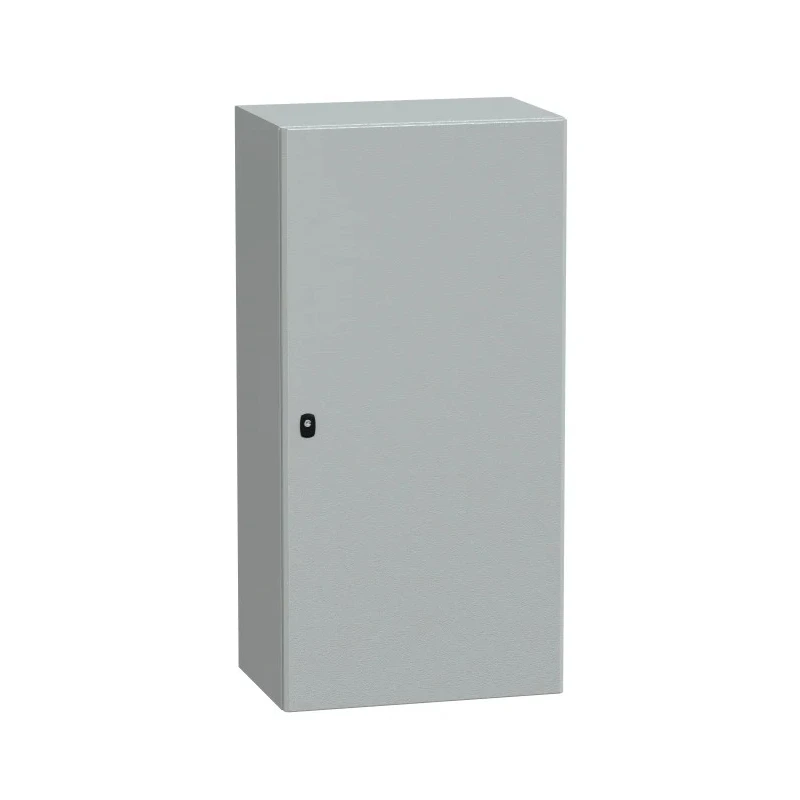

Schneider Electric PanelSet S3D Series Steel Wall Box IP66 Grey 1200mm x 600mm x 400mm NSYS3D12640P

Schneider Electric NSYS3D12640P PanelSet S3D Series Steel Wall Box is a multipurpose compact enclosure designed for industrial and commercial electrical applications. This wall-mounted enclosure features a robust steel body with a grey epoxy-polyester powder coating that provides excellent corrosion resistance and high UV resistance, suitable for harsh environments.

The enclosure measures 1200 mm in height, 600 mm in width, and 400 mm in depth, offering ample space for electrical panels and components while maintaining a compact footprint. The plain grey door is equipped with a secure double bar lock providing three locking points for enhanced security, and it can be opened reversibly up to 120 degrees to facilitate maintenance and access.

IP66 rated to conform to IEC 60529 standards, it ensures complete protection against dust ingress and powerful water jets, making it ideal for indoor and outdoor applications requiring high ingress protection. The enclosure also features IK10 impact resistance per IEC 62262, ensuring robust mechanical protection against external impacts.

The design includes a folded, welded single-piece body with a gutter-shaped profile and laser-cut openings for easy cable entry through the included gland plate. The mounting plate is made of galvanized steel and is removable to ease panel installation. The enclosure supports panel and wall mounting with welded back studs and external fixing brackets for secure installation.

The package includes one enclosure body, one galvanized mounting plate, one door with lock, and one cable gland plate. The enclosure is compliant with several international standards such as LR, REACH, BV, UL, cUL, RoHS, IEC 62208, and DNV certifications, ensuring reliability and safety in industrial environments.

Manufactured in France, this Schneider Electric enclosure is part of their Better World initiative, designed for disassembly to facilitate recycling and sustainability. Its sturdy construction and advanced features make it suitable for electrical, industrial automation, and manufacturing sectors, providing a reliable housing solution for electrical components.

Constructed from durable steel with epoxy-polyester powder coating for enhanced corrosion and UV resistance. Features a grey plain door with a double bar lock and 3-point locking mechanism for security. IP66 rated for protection against dust and powerful water jets per IEC 60529 standards.

120° reversible door opening with hinges and mounting plates removable for easy installation. IK10 impact resistant providing robust mechanical protection to internal equipment. Includes enclosure body, galvanized steel mounting plate, door with lock, and cable gland plate in the package.

Designed for panel mounting and wall mounting with welded back studs for chassis attachment. Complies with multiple standards including LR, REACH, BV, UL, cUL, RoHS, IEC 62208, and DNV certifications. Manufactured in France with a focus on sustainability and designed for easy disassembly.
