DFRobot Single Board Computer Intel Atom X5-Z8300 1.8GHz 2GB DDR3L RAM 32GB eMMC Flash 5V@2A DFR0444

Free Delivery in India | Lowest Global Shipping Charges

DFRobot Single Board Computer Intel Atom X5-Z8300 1.8GHz 2GB DDR3L RAM 32GB eMMC Flash 5V@2A DFR0444

Name: DFRobot Single Board Computer Intel Atom X5-Z8300 1.8GHz 2GB DDR3L RAM 32GB eMMC Flash 5V@2A DFR0444
Brand: DFRobot
SKU: 199271
Price: 188.12 USD
Availability: InStock



Category Single Board Computers Brand DFRobot Condition New

Specifications

Country of Origin	China
Voltage	5V@2A
Display	7in WSVGA LCD Display
Frequency	1.8GHz
Brand	DFRobot
Dimensions	88 x 70mm / 3.46 x 2.76"
Bluetooth	Bluetooth 4.0
Height	70mm
Length	88mm
Memory	2GB DDR3L RAM & 32GB eMMC Flash
Model	DFR0444
Operating System	Windows 10 Home Edition (124-4684)
USB	1 x USB 3.0, 2 x USB 2.0
Ethernet	100Mbps LAN connector
Wifi	802.11n 2.4G
Processor	Intel Atom X5-Z8300
Interfaces	USB: 1 x USB 3
Video	HDMI and MIPI-DSI
GPIO	6 (Intel Processor), 20 (ATmega Processor)
SD Card	micro SD card slot
Interface Type	HDMI, WiFi, USB 2.0, Ethernet, USB 3.0, Bluetooth, MIPI-DSI
Standards/Approvals	RoHS
Maximum Supply Voltage	5V
Minimum Supply Voltage	0V
Memory Socket Type	eMMC
Core Processor	Intel Cherry Trail Z8350
Number of Memory Sockets	1
GPU	Intel HD Graphics, 12 EUs @200-500Mhz, single-channel memory
Co-processor	Arduino Leonardo ATmega32u4
Other Connectors	Gravity Interface Connectors x 6, Onboard touch panel
DFRobot DFR0418 Single Board Computer 2 GBBrand	DFRobot

Key Features

Operates at 5V@2A power supply for efficient performance.
Built-in Arduino Leonardo ATmega32u4 co-processor for embedded control applications.
Offers multiple interfaces including HDMI, WiFi, USB 2.0 & 3.0, Ethernet, Bluetooth, and MIPI-DSI.
Compact board dimensions of 88 x 70mm suitable for diverse embedded and development projects.
Supports Windows 10 Home Edition OS enabling full PC capabilities.
Includes micro SD card slot for expanded memory options.
Connectivity options include 100Mbps Ethernet LAN and Bluetooth 4.0.
Equipped with Intel HD Graphics featuring 12 EUs at 200-500MHz.

Product Description

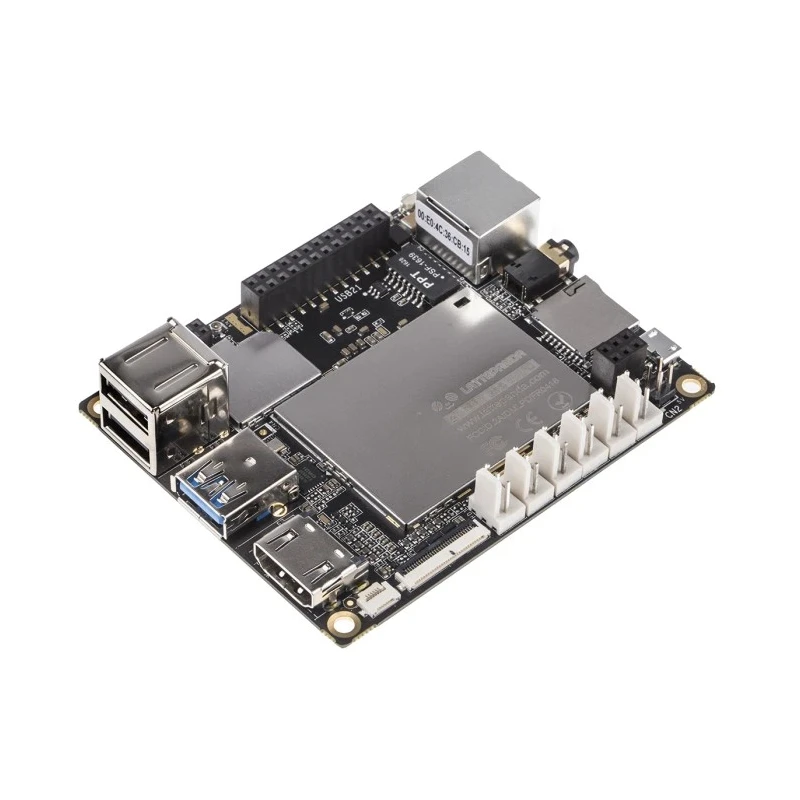

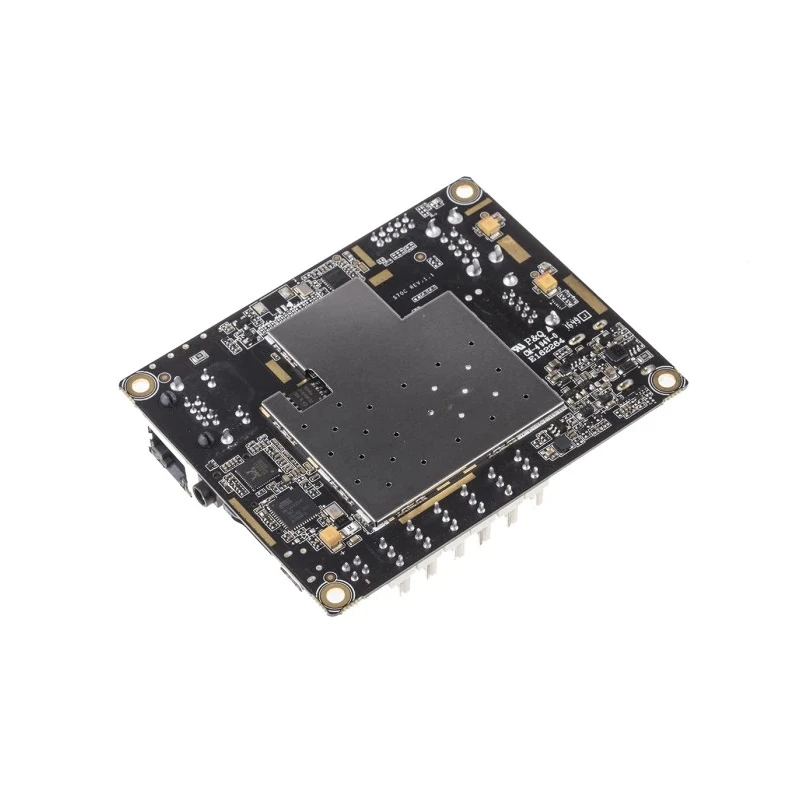

The DFRobot DFR0444 Single Board Computer is powered by an Intel Atom X5-Z8300 quad-core processor running up to 1.8GHz, paired with 2GB DDR3L RAM and 32GB eMMC Flash storage. This combination delivers a capable Windows 10 Home Edition computing platform packed into a compact 88mm by 70mm form factor.

This SBC supports diverse connectivity options including HDMI video output, USB 3.0 and USB 2.0 ports, Bluetooth 4.0, WiFi 802.11n at 2.4GHz, a 100Mbps Ethernet LAN connector, and MIPI-DSI video interface. Additionally, a micro SD card slot offers expandable storage flexibility.

Designed for both as a fully functional PC and an embedded controller, the DFR0444 includes a secondary coprocessor, the Arduino Leonardo ATmega32u4. It provides extensive digital and analog IO capabilities for sensor input, motor control, and relay driving, making it ideal for STEM education and hardware projects.

Its 6 GPIO pins from the Intel processor and 20 GPIO pins from the Arduino chip allow complex interaction with external components and modules. The onboard Intel HD Graphics delivers visual performance with 12 Execution Units running between 200 to 500 MHz.

The board complies with RoHS standards and originates from China. It is suitable for industrial control, educational purposes, prototyping, and light computing tasks where compactness and connectivity are required.

Operates at 5V power supplied via microUSB connector delivering 2A current. Compatible with a variety of accessory kits including heatsinks, fans, and display modules. Embedded co-processor supports Arduino programming for customized sensor and actuator handling.

Dimensions allow integration into embedded systems or standalone desktop applications. Package includes a WiFi antenna to enhance wireless network connectivity. Explore the full range of development tools and Single Board Computers to find perfect solutions for embedded computing and IoT projects at EnvMart.
