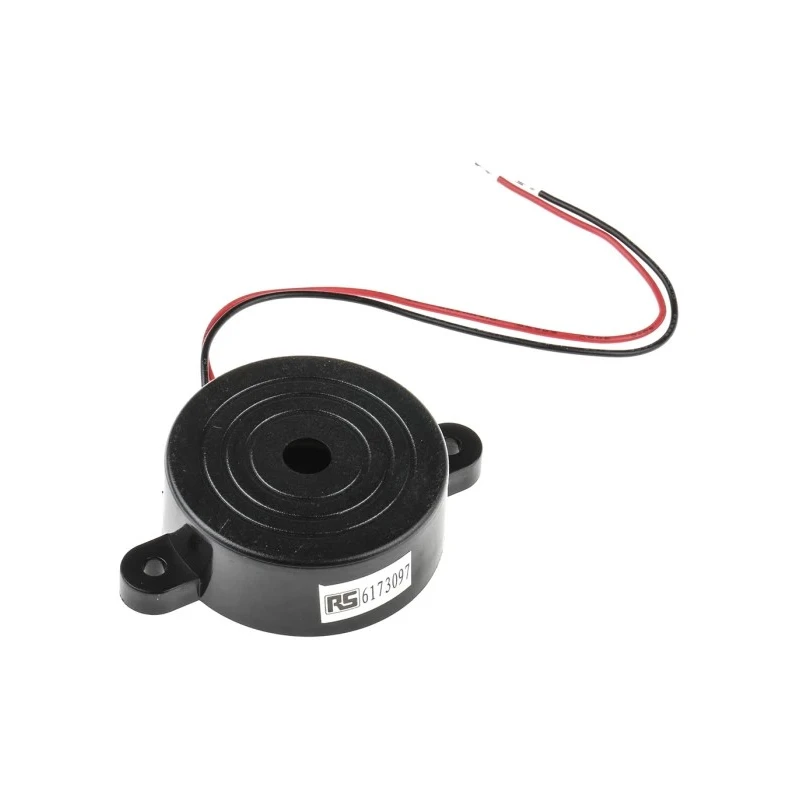

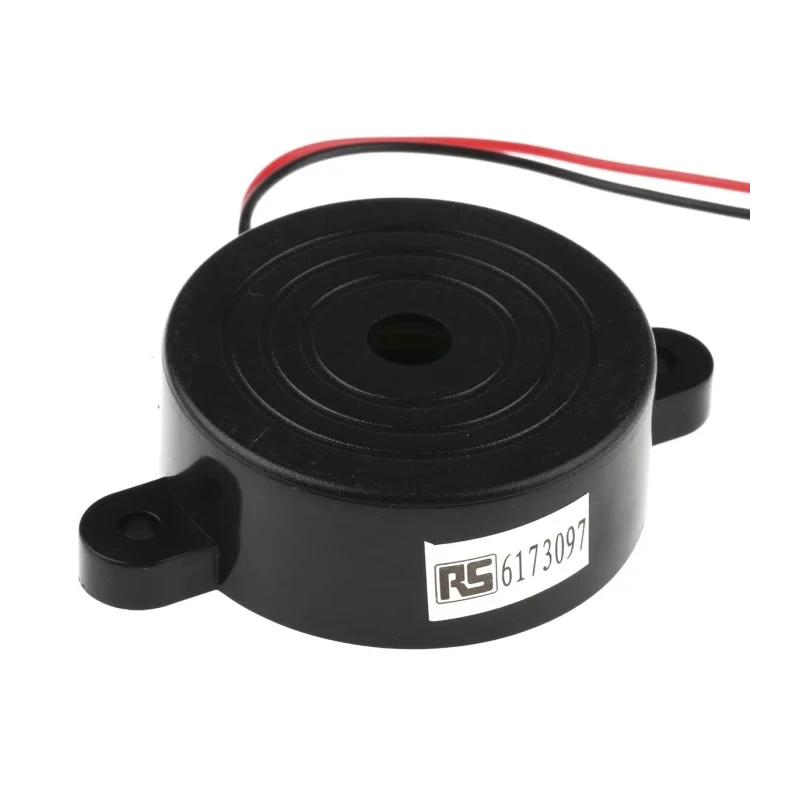

RS PRO 96 dB Panel Mount Continuous Internal 16 mm Piezo Buzzer Component 1.5 V dc Min 20V dc Max 617-3097
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 41.8mm |
| Brand | RS PRO |
| Sound Level | 96dB |
| Height | 16mm |
| Model | 617-3097 |
| Drive Type | Internal |
| Mount Type | Panel Mount |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Maximum Frequency | 3.3kHz |
| Termination Style | Lead |
| Maximum Supply Voltage | 20V dc |
| Minimum Supply Voltage | 1.5V dc |
| Supply Current | 10mA |
| Tone Type | Continuous |
| Minimum Frequency | 2300Hz |
Key Features
- Panel mount design suitable for secure installation.
- Continuous tone operation with internal drive type for stable sound output.
- Compact design with 16 mm height and 41.8 mm diameter.
- Wide operating temperature range from -20°C to 60°C.
- Maximum frequency of 3.3 kHz and minimum frequency of 2.3 kHz.
- Low supply current requirement of 10 mA at 20V dc.

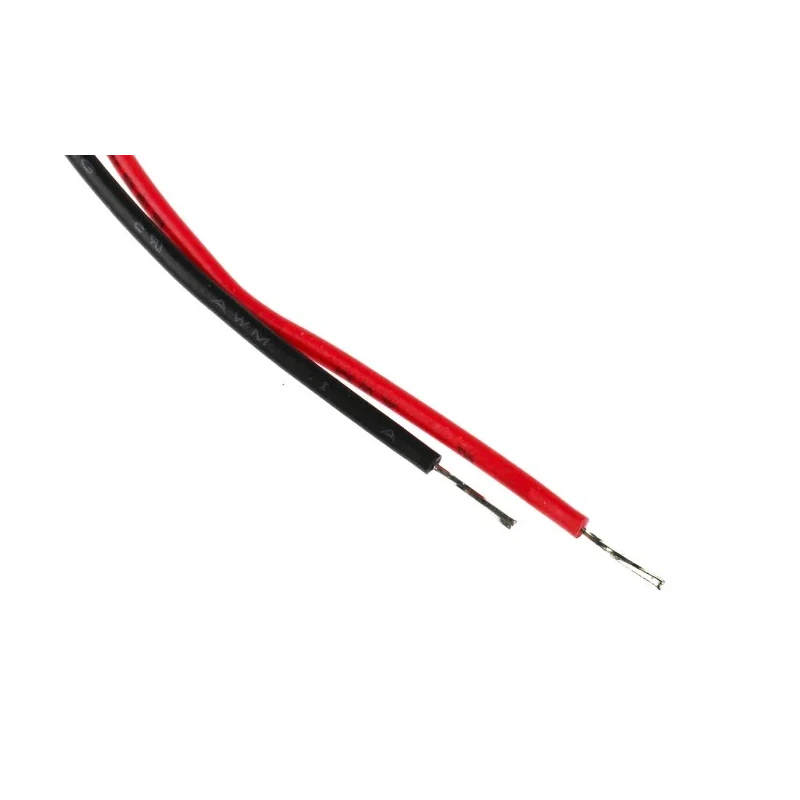

- Durable ABS housing with flange mounting and flying lead connections.
- Ideal for audio sensing and instrumentation applications.
Product Description
RS PRO 617-3097 Panel Mount Piezo Buzzer Component is engineered for reliable audio signaling in industrial and electronic applications. This buzzer features an internal drive and continuous tone output delivering a sound level of 96 dB. Operating between 1.5 V dc minimum and 20 V dc maximum voltage, it ensures consistent performance within various electrical environments.
The device is designed with a 16 mm height and 41.8 mm diameter, making it compact for integration into panel mount assemblies. Its wide operating temperature range from -20°C to 60°C allows usage in challenging environmental conditions.
Its flanged mounting and flying lead termination style enable straightforward installation and connection. The buzzer's ABS housing provides mechanical protection and durability. The supply current is minimal at 10 mA, improving energy efficiency.
Typical applications include audio sensing, instrumentation, alarms, and various sound signaling uses in electronic systems within industrial, manufacturing, HVAC, and commercial sectors.
Panel mount design suitable for secure installation. Continuous tone operation with internal drive type for stable sound output. Compact size: 16 mm height and 41.8 mm diameter for flexible panel integration. Operating temperature range from -20°C to 60°C for diverse environments.
Sound level rating of 96 dB for clear audible signals. Drive current of 10 mA at 20 V dc for low power consumption. ABS housing with flange mounting and flying lead connection for durability and easy installation. Applications include industrial instrumentation and audio sensing.
Explore more high-quality panel mount piezo buzzers and electronic components in the Electronics Components category at EnvMart for your industrial and electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sound level of this piezo buzzer is rated at 96 dB, providing clear audible signals for various applications.
This model operates within a temperature range of -20°C to 60°C, making it suitable for diverse environmental conditions.
The buzzer has a height of 16 mm and a diameter of 41.8 mm, allowing for compact integration into panel mount assemblies.
The minimum supply voltage is 1.5 V dc and the maximum supply voltage is 20 V dc, ensuring compatibility with various electrical environments.
It features a panel mount design, which allows for secure installation in various applications.
The supply current requirement for this buzzer is 10 mA at 20 V dc, which helps improve energy efficiency.
The buzzer operates with a frequency range from 2.3 kHz to 3.3 kHz, suitable for continuous tone applications.
This model uses an internal drive type, which provides stable sound output during operation.
The termination style is lead, which facilitates straightforward installation and connection.
Typical applications include audio sensing, instrumentation, alarms, and sound signaling in industrial and commercial sectors.
The housing is made from ABS, providing mechanical protection and durability for the component.
The model number of this piezo buzzer is 617-3097, which can be referenced for ordering or specifications.
