Disc Diffuser Disc 270
Specifications
| Connection | 3/4inches NPT MALE |
|---|---|
| Model | Disc 270 |
| Weight | 0.7 Kg |
| Membrane Material | EPDM / Silicon / Viton / PTFE layered EPDM |
| Bubble Size | 0.8 to1.9 mm |
| Standard Design flow | 2.5 to 5 m3 /hr |
| Perforation size | 1mm |
| Working area | 0.2-1.M2/PCS |
| Max. allowable air pressure | 1.5Kg/cm2 |
| Max. permissible tank depth | 7.5 |
| Base and Ring | Glass filled Reinforced polypropylene (GFPP) |
| Airflow Range | 0 to 12 m3 /hr |
| Perforated area (Active surface Area) | 0.0375m2 |
| Nos. of perforation | 6600 |
Key Features
- Easy To Use
- High Durability
- Low Maintenance
Product Description

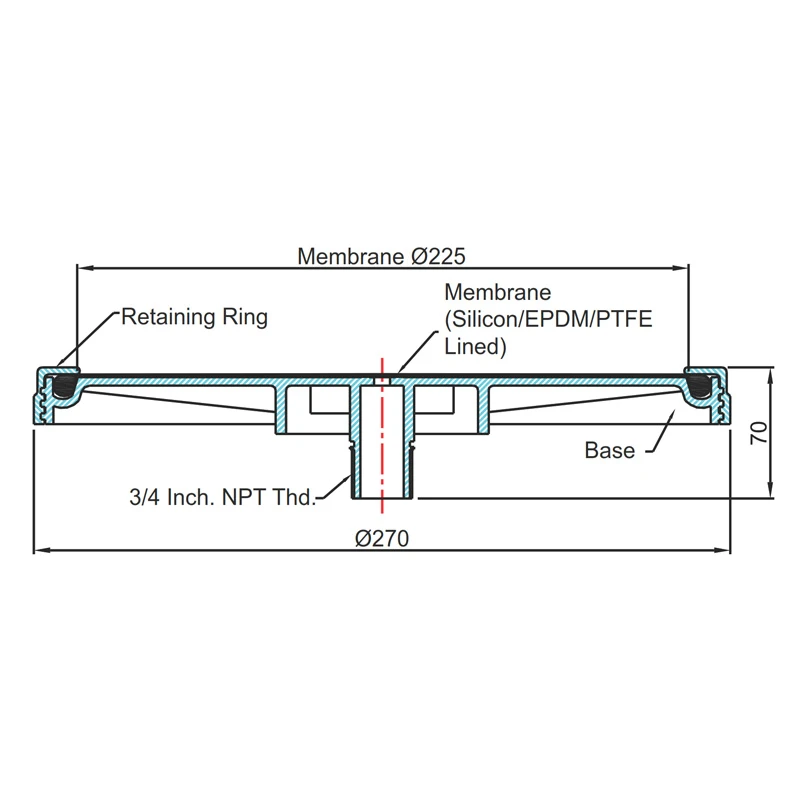

AIRFIN Disc Diffuser (Disc 270), AIRFIN Disc diffusers are compression molded EPDM / Silicon / Viton / PTFE layered membranes with low plasticizer and filler to ensure exceptional quality, strength, and longer prudent life.The diffuser assembly of the base and ring are constructed of glass fiber-reinforced poly propylene for maximum life and durability. The diffusers incorporate an external triple-check valve design to prevent the intrusion of liquid or solids into the diffuser or air piping during ON/OFF operating conditions. Precision die-cut perforation proprietary design for maximum oxygen transfer efficiency.
- Low cost
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard design flow for the Disc 270 is between 2.5 to 5 m³/hr.
The membrane is made of layered EPDM, Silicon, Viton, and PTFE materials.
The maximum allowable air pressure for the Disc 270 is 1.5 Kg/cm².
The bubble size produced by the Disc 270 ranges from 0.8 to 1.9 mm.
The weight of the Disc 270 is 0.7 kg.
The maximum permissible tank depth for the Disc 270 is 7.5 meters.
The Disc 270 features a 3/4 inch NPT male connection.
The Disc 270 has a total of 6600 perforations.
The perforated area, or active surface area, is 0.0375 m².
The airflow range for this model is from 0 to 12 m³/hr.
Each unit of the Disc 270 covers a working area of 0.2 to 1 m².
The base and ring of the Disc 270 are constructed from glass fiber-reinforced polypropylene (GFPP).
