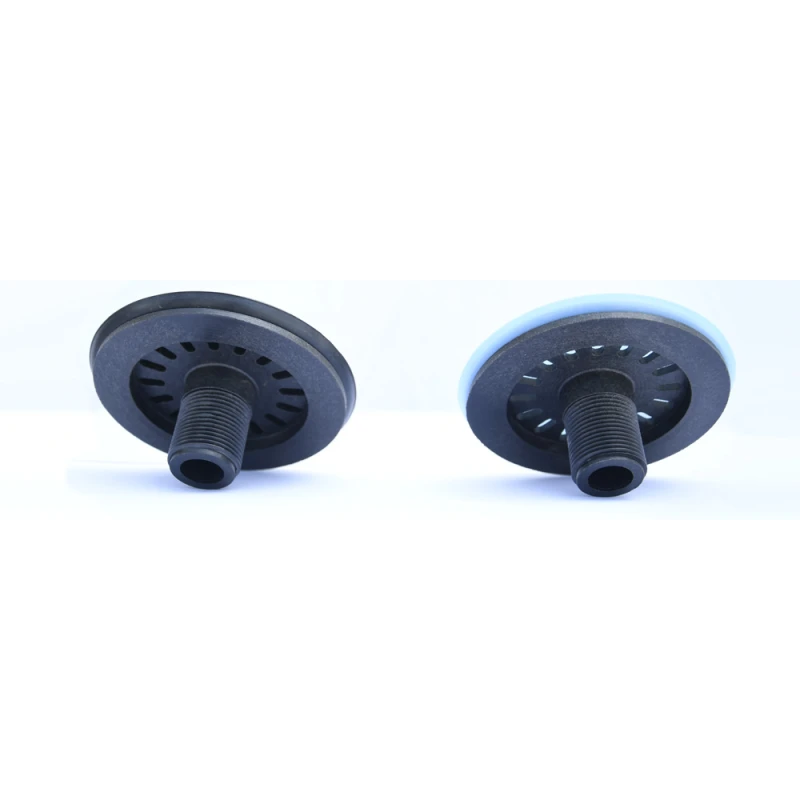

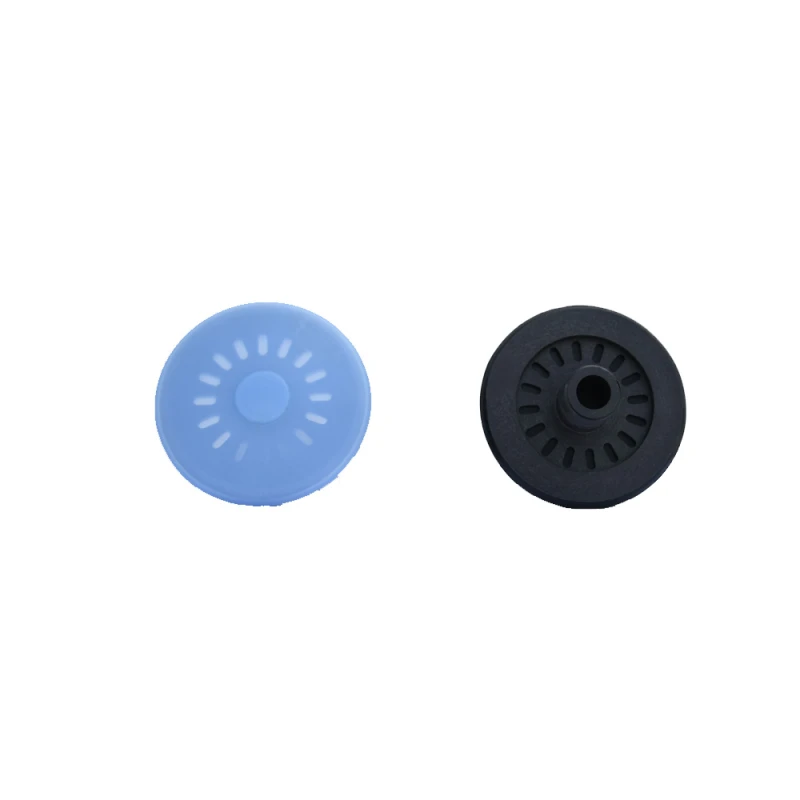

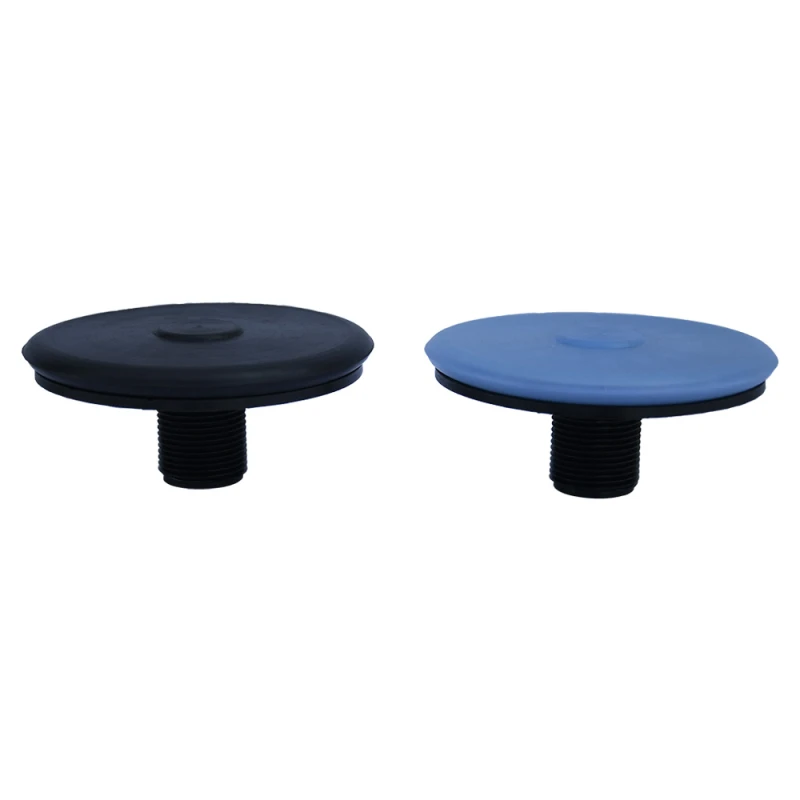

Bubble Diffuser JCB-100
Specifications
| Shape | DISC |
|---|---|
| Model | JCB-100 |
| Operating Temp | 35 degree C (max 85 degree C) |
| Weight | 100 gm |
| Membrane Material | EPDM / Silicon |
| Bubble Size | 4 - 5 mm |
| Size dia | 105 mm (4 inch) |
| Membrane support | GFPP |
| Air discharge from | Bottom |
| Air discharge ports | 16 |
| Airflow/diffuser | 10 Nm3/hr |
| Air flow Range/diffuser | 2-25 Nm3/hr |
| Min req. Qty for mixing | 1 |
| End connection male thread | 3/4 inch NPT |
| Special arrangement | Non Clog |
| Max pressure allowed | 1.5 Kg/cm2 |
Key Features
- Easy To Use
- High Durability
- High performance
Product Description

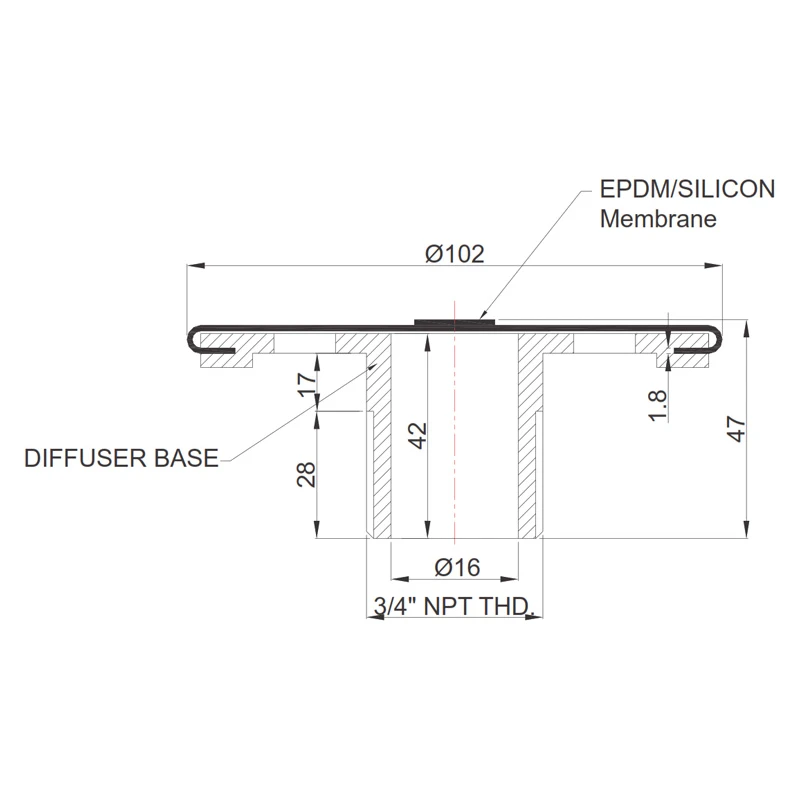

AIRFIN Bubble Diffuser (JCB-100), These Diffusers have been engineered in a simplified design consisting of two parts: The support base and the flexible diaphragm. The diaphragm is designed to provide extended life and optimum performance due to its specially formulated EPDM/Silicon rubber material.
- Low Maintenance
- Low cost
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 35 degrees Celsius, with a maximum limit of 85 degrees Celsius.
The airflow range for this diffuser is between 2 to 25 Nm3/hr.
This model produces bubbles in the size range of 4 to 5 mm.
The membrane of this diffuser is made from a specially formulated EPDM/Silicon rubber material.
The weight of this model is 100 grams.
The JCB-100 diffuser features 16 air discharge ports.
The diameter of this model is 105 mm, which is equivalent to 4 inches.
The maximum pressure allowed for this diffuser is 1.5 Kg/cm2.
This model has a male thread end connection of 3/4 inch NPT.
The JCB-100 is designed with a non-clog special arrangement feature.
The minimum required quantity for mixing is 1 unit of the JCB-100 diffuser.
The shape of this diffuser is designed as a disc.
