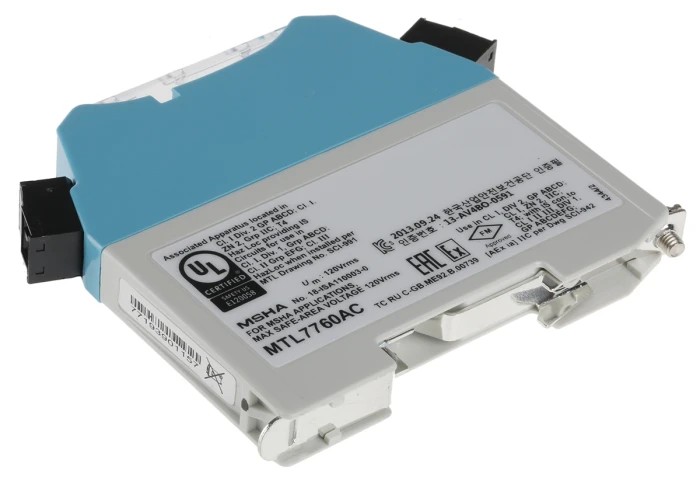

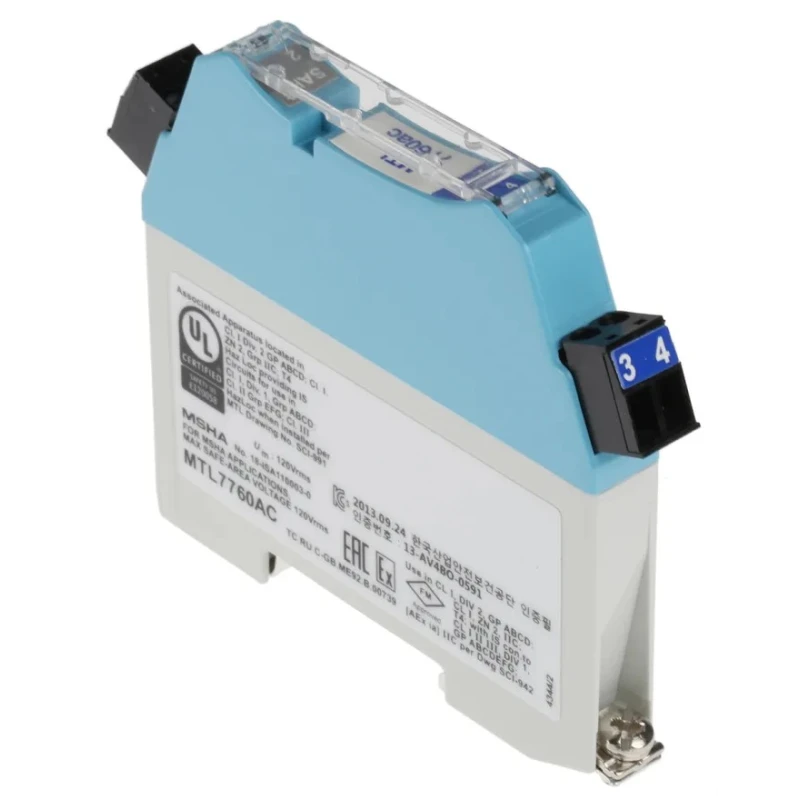

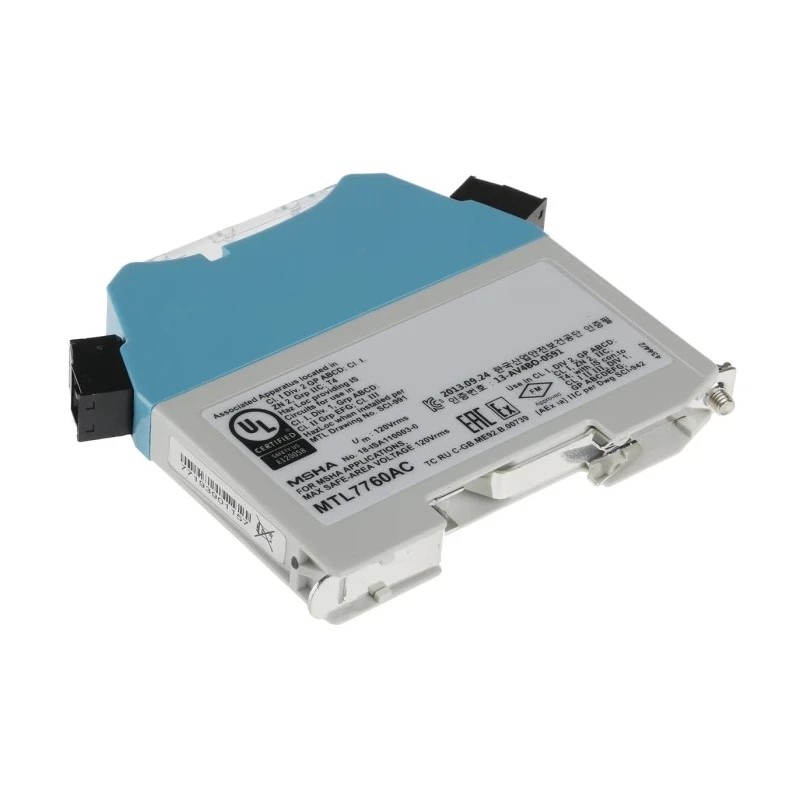

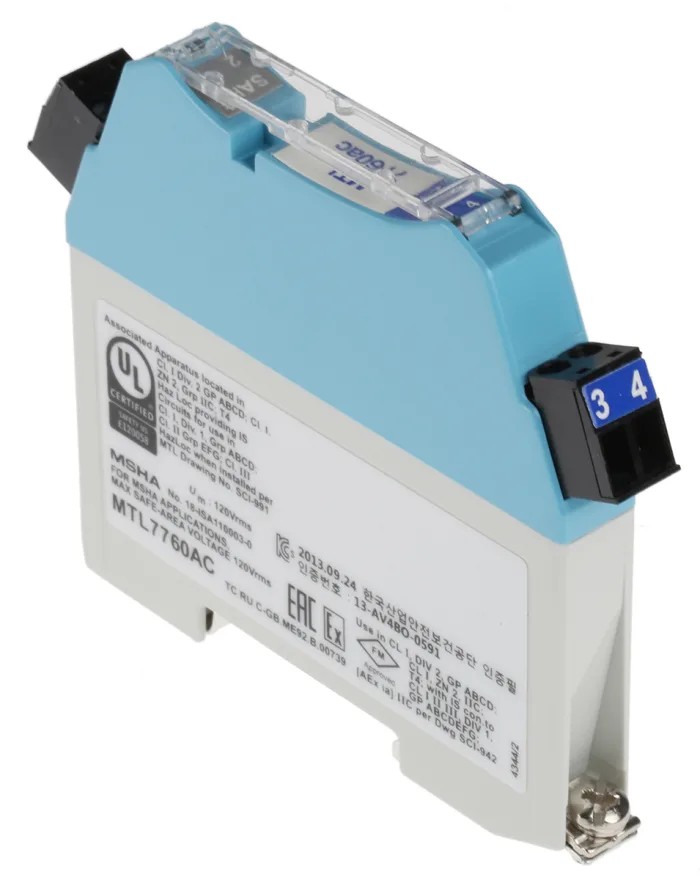

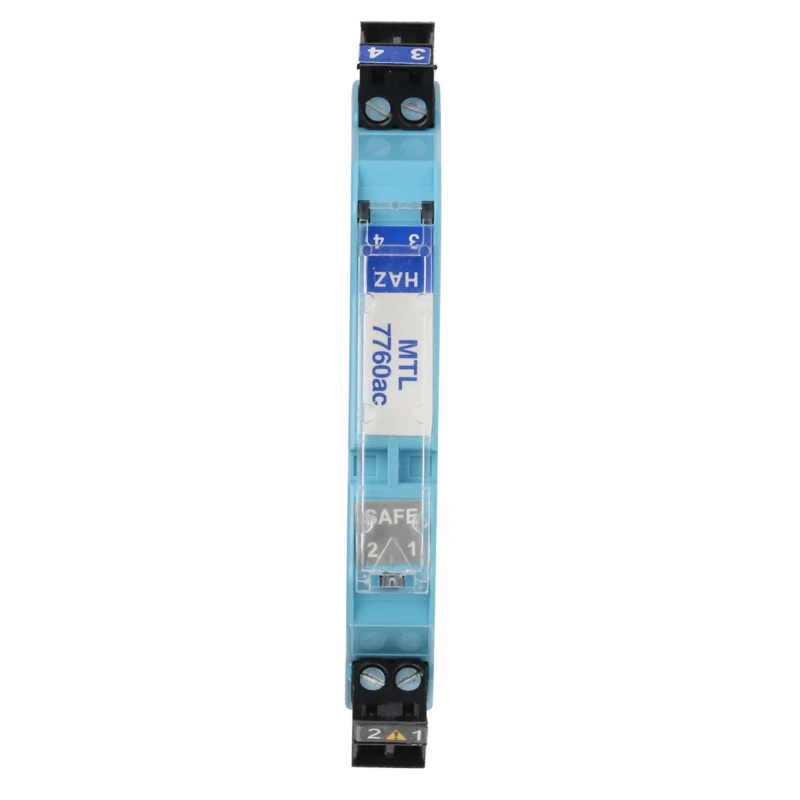

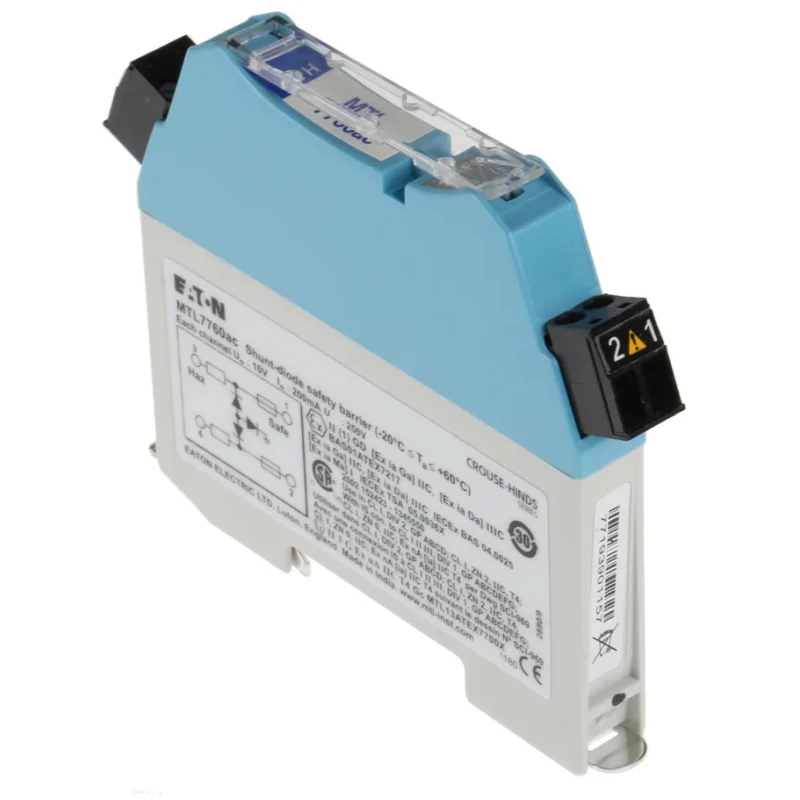

Eaton 2 Channel Zener Barrier, ATEX Certified, DIN Rail Mount MTL7760AC/RS

Free Delivery in India | Lowest Global Shipping Charges

Eaton 2 Channel Zener Barrier, ATEX Certified, DIN Rail Mount MTL7760AC/RS

Name: Eaton 2 Channel Zener Barrier, ATEX Certified, DIN Rail Mount MTL7760AC/RS
Brand: Eaton
SKU: 198543
Price: 221.42 USD
Availability: InStock



Category Signal Conditioners Brand Eaton Condition New

Specifications

Country of Origin	India
Brand	Eaton
Dimensions	105 x 90 x 12.6mm
Model	MTL7760AC/RS
Mount Type	DIN Rail
Series	MTL7700
Maximum Operating Temperature	65°C
Minimum Operating Temperature	-20°C
Terminal type	Screw
Number Of Channels	2
Supply Voltage	10V dc
Hazardous Area Certification	ATEX
Barrier Type	Zener Barrier
Safety Current Resistance	50Ω
Maximum Safety Current	200mA
Maximum Safety Voltage	6.7V dc
Pepperl + Fuchs 2 Channel Zener Barrier, ATEXBrand	Pepperl + Fuchs

Key Features

The device provides 2 channels for signal processing and safety isolation.
Equipped with screw terminal type for secure electrical connections.
Supports a supply voltage of 10V DC with maximum safety voltage of 6.7V DC.
Designed to handle maximum safety current of 200mA with 50Ω safety current resistance.
Operates reliably within a temperature range of -20°C to +65°C.
Mount type supports easy DIN rail installation for industrial environments.
Constructed for use in demanding industrial applications requiring intrinsic safety.

Product Description

Eaton MTL7760AC/RS 2 Channel Zener Barrier is an ATEX certified intrinsic safety device designed to protect control and process instrumentation in hazardous environments. This zener barrier prevents sparking and overheating, reducing risks of fire and electric shocks. Its DIN rail mounting feature offers simple installation and reliable earth connection in industrial settings.

The barrier features 2 channels with screw terminal connections and supports a supply voltage of 10V DC, handling a maximum safety current of 200mA and safety voltage up to 6.7V DC. The device maintains operational integrity over a wide temperature range from -20°C to +65°C, making it suitable for various industrial conditions.

The Eaton MTL7700 series, including the MTL7760AC/RS, uses zener diodes, resistors, and fuses to safely divert excess electrical energy to ground, preventing sparking or overheating of connected equipment within hazardous areas. This device’s removable terminals allow easy installation and maintenance, and angled wire entry assists wiring in limited space enclosures.

Widely utilized in industrial automation, electrical, process control, and hazardous area applications, this zener barrier meets rigorous safety demands and offers dependable intrinsic safety performance. Its robust construction and compliance with ATEX certification ensure operational safety and reliability.

The device provides 2 channels for signal processing and safety isolation. Equipped with screw terminal type for secure electrical connections. Supports a supply voltage of 10V DC with maximum safety voltage of 6.7V DC. Designed to handle maximum safety current of 200mA with 50Ω safety current resistance.

Operates reliably within a temperature range of -20°C to +65°C. Mount type supports easy DIN rail installation for industrial environments. Constructed for use in demanding industrial applications requiring intrinsic safety.

Model part of MTL7700 series ensuring high performance and safety compliance. Explore more signal conditioning and intrinsic safety equipment for industrial and hazardous area applications at EnvMart.
