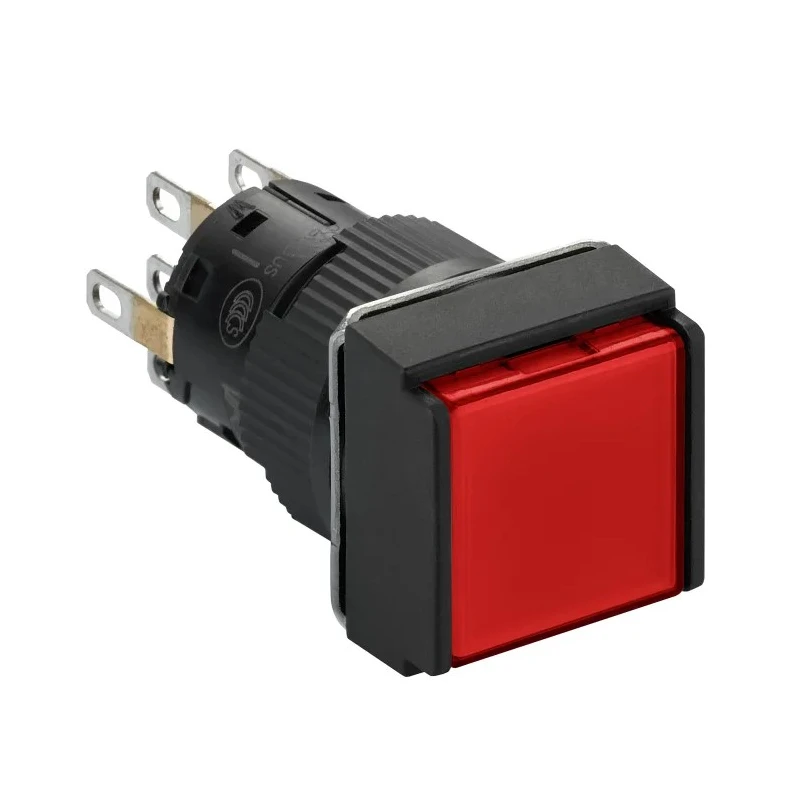

Schneider Electric Harmony XB6 Series Illuminated Push Button Switch, Latching, Panel Mount, 16 mm Cutout, DPDT XB6ECF4B2P
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 18mm |
| Length | 40mm |
| Model | XB6ECF4B2P |
| IP Rating | IP65 |
| Width | 18mm |
| Mount Type | Panel |
| Series | Harmony XB6 |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Quick Connect, Solder Tag |
| LED Colour | Red |
| Switch Operation | Latching |
| Actuator Colour | Red |
| Contact DC Voltage | 110V |
| Actuator Style | Square |
| Switch Contact Current | 1A |
| Contact AC Voltage | 250V |
| Legend | Blank |
Key Features
- Features a durable red LED illumination for clear visual indication.
- DPDT (Double Pole Double Throw) contact configuration supports versatile switching.
- Constructed for panel mounting with a square actuator style and size 16 mm cutout.
- IP65-rated protection ensures resistance against dust and water ingress.
- Operates reliably in temperatures from -25°C to 55°C.
- Quick connect and solder tag terminal types for easy installation.
- Supports contact voltages of 110 V DC and 250 V AC.
- Compact design with dimensions approximately 40 mm length × 18 mm width × 18 mm height.
Product Description
Schneider Electric XB6ECF4B2P Harmony XB6 Series illuminated push button switch is a latching type designed for panel mounting applications requiring a 16 mm cutout. It features a red LED illumination providing clear status indication, ideal for industrial, automation, and control panel uses.
The DPDT contact configuration allows versatile electrical control with double pole and double throw options, ensuring reliable switching performance with 1 A switch current rating. Suitable for DC operation up to 110 V and AC up to 250 V, it supports various industrial voltage requirements.
The actuator is square, flush, and robust for ergonomic operation. The Push Button Switch is rated IP65, offering protection against dust infiltration and water jets, ensuring durability in harsh environments.
Installation is simplified with quick connect and solder tag terminals and compact overall dimensions of 40 mm by 18 mm by 18 mm. Operating temperature ranges from -25°C to 55°C, allowing use in extreme ambient conditions.
This panel-mounted latching push button is ideal for industrial electrical control systems, automation panels, machinery control units, and other specialized equipment requiring reliable switching and visual confirmation via the red LED.
Features a durable red LED illumination for clear visual indication. DPDT (Double Pole Double Throw) contact configuration supports versatile switching. Constructed for panel mounting with a square actuator style and size 16 mm cutout.
IP65-rated protection ensures resistance against dust and water ingress. Operates reliably in temperatures from -25°C to 55°C. Quick connect and solder tag terminal types for easy installation. Supports contact voltages of 110 V DC and 250 V AC.
Compact design with dimensions approximately 40 mm length × 18 mm width × 18 mm height. Browse EnvMart's extensive range of industrial switches and electronic components for seamless integration into your control systems and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for versatile switching options.
The dimensions of this unit are approximately 40 mm in length, 18 mm in width, and 18 mm in height.
It operates reliably in temperatures ranging from -25°C to 55°C.
It supports quick connect and solder tag terminal types for easy installation.
This model has an IP65 rating, ensuring resistance against dust and water ingress.
It supports contact voltages of 110 V DC and 250 V AC, making it suitable for various industrial applications.
The actuator style is square, designed for ergonomic operation in panel mounting applications.
The LED illumination is red, providing clear visual indication of the switch status.
This unit features a latching operation type, allowing it to maintain its state until manually reset.
It is ideal for industrial electrical control systems, automation panels, and machinery control units.
The switch contact current rating is 1 A, suitable for various control applications.
The country of origin for this push button switch is China.
