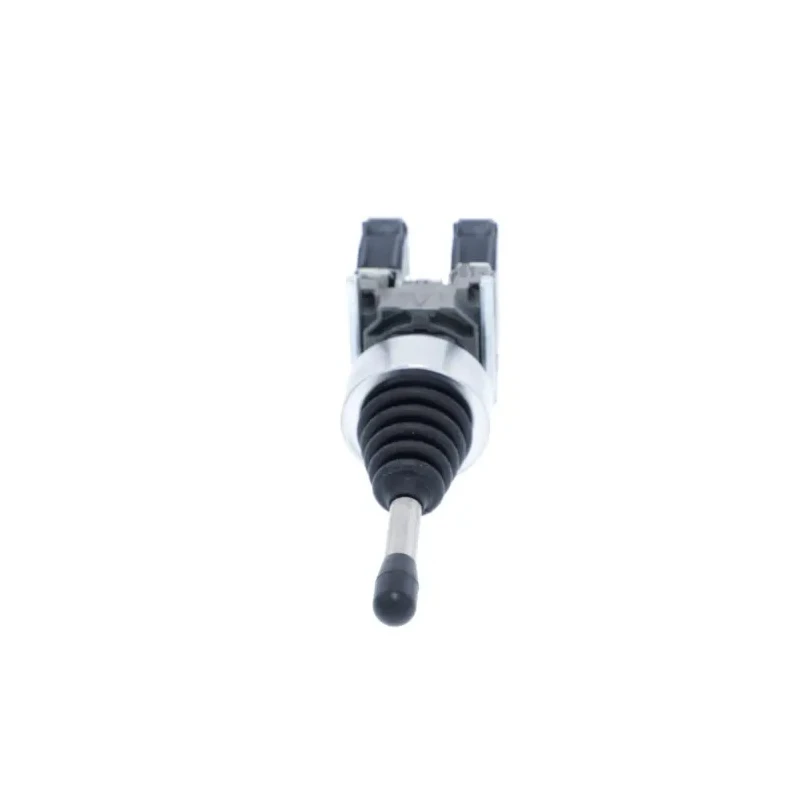

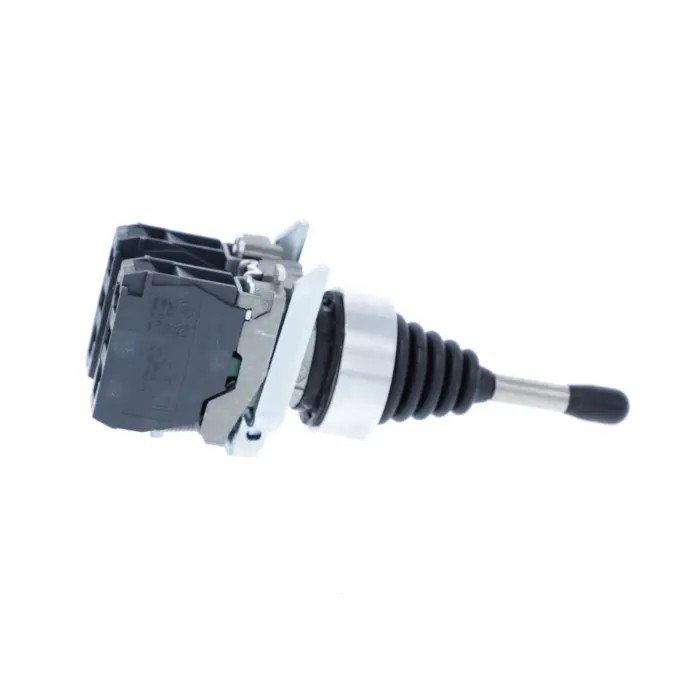

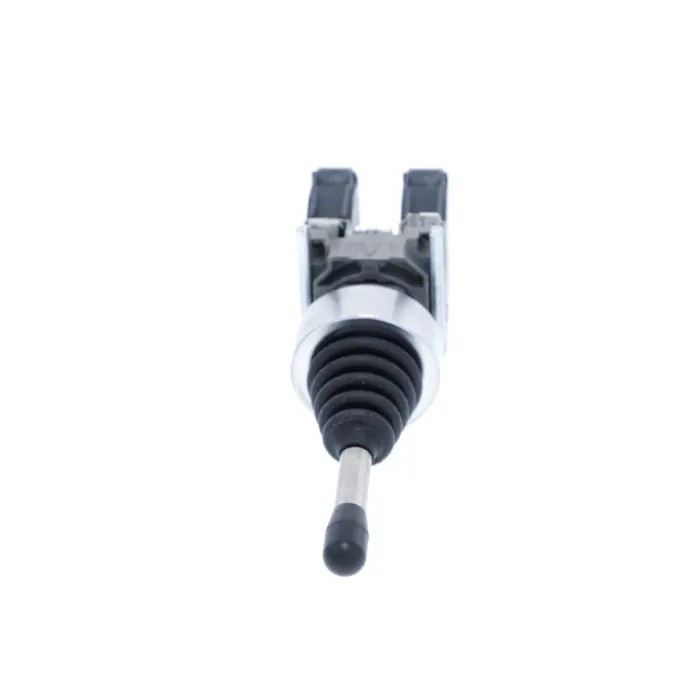

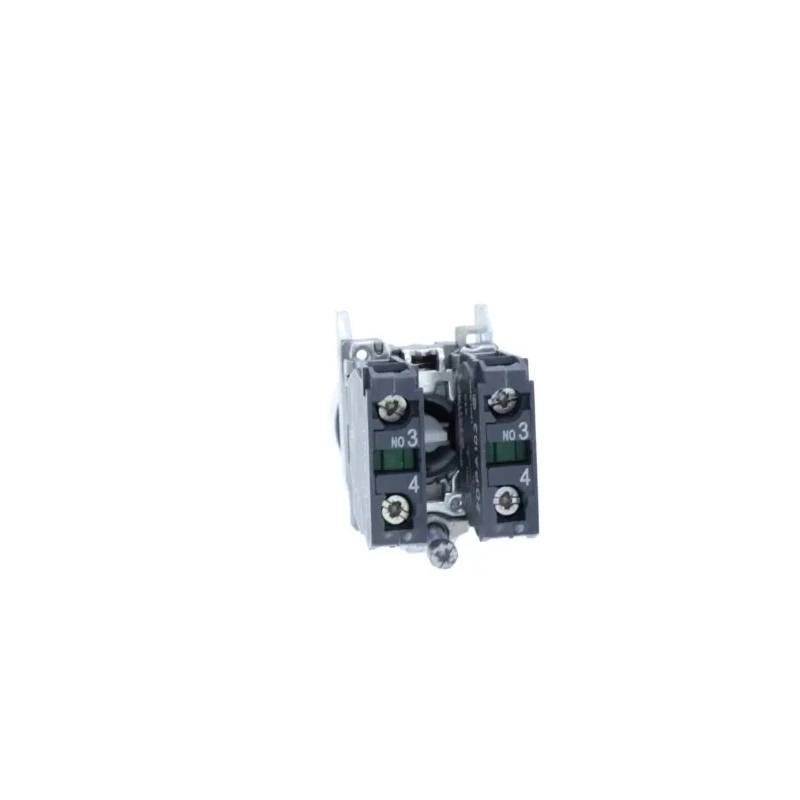

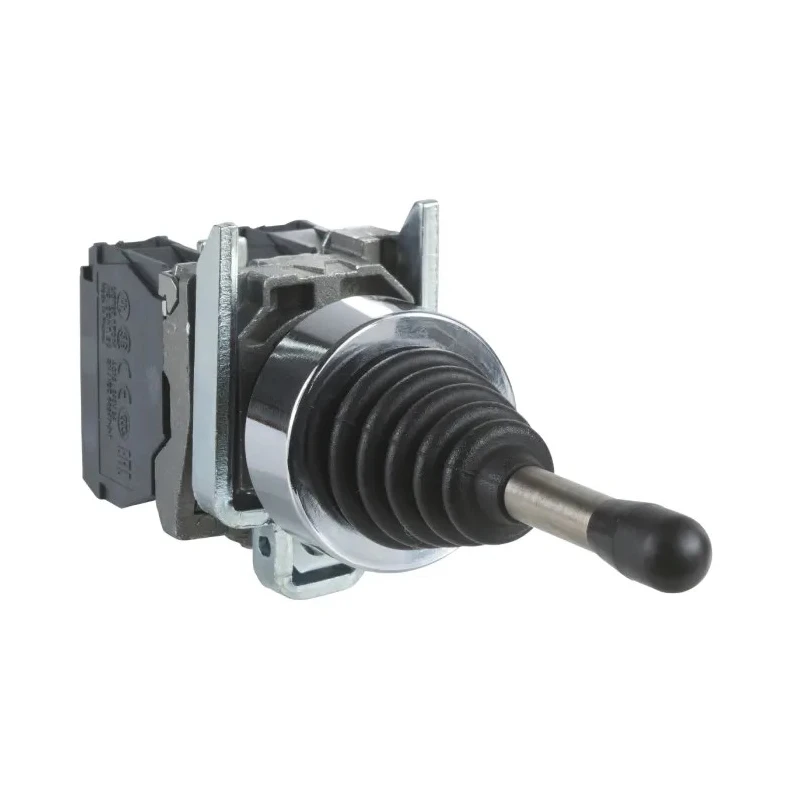

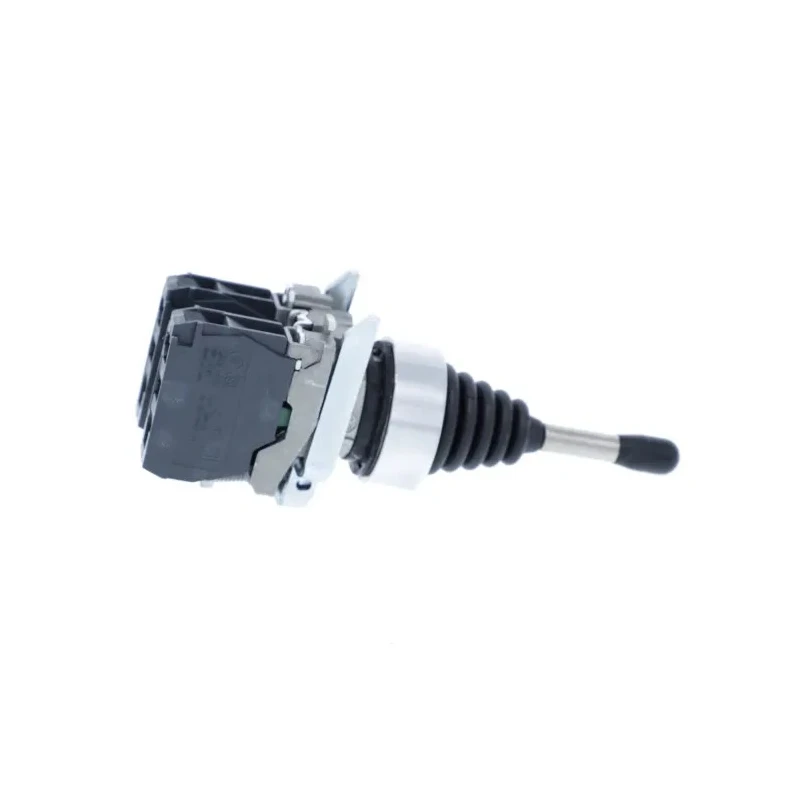

Schneider Electric Harmony XD4 2-Axis Joystick Lever Spring Return IP66 600V AC 220mA XD4PA22
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Model | XD4PA22 |
| IP Rating | IP66 |
| Handle Type | Lever |
| Contact Material | Silver Alloy |
| Series | Harmony XD4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Axes | 2 |
| Standards/Approvals | RoHS |
| Switch Contact Current | 220mA |
| Mechanical Life | 1000000Cycles |
| Contact AC Voltage | 600V ac |
| Better World Claim | Repairable by the End User |
| Switch Technology | Spring Return |
| 2 direction spring return joystickBrand | Telemecanique |
| Euchner 2-Axis Joystick Switch Lever, Spring Return, IP65 230 V ac, 24 V dcBrand | Euchner |
| Schneider Electric XD4 Series Legend Plate, SPST, IP66Brand | Schneider Electric |
Key Features
- Two-axis joystick lever enables intuitive directional control.
- Spring return mechanism automatically resets the lever to neutral position after use.
- High voltage rating of 600V AC with contact current of 220mA supports demanding electrical environments.
- Silver alloy contacts provide reliable electrical conductivity and durability.
- IP66 rating ensures resistance to dust and powerful water jets for outdoor and harsh conditions.
- Mechanical life rated at 1,000,000 cycles guarantees long-term operational reliability.
- Screw clamp terminals facilitate easy wiring and maintenance according to EN 60947-1 standards.
- Operates within temperature range of -25°C to 70°C for versatile industrial use.
Product Description
Schneider Electric XD4PA22 Harmony XD4 2-Axis Joystick Lever Spring Return is a robust and precise input device designed for automation and industrial control applications. Featuring a compact form factor with a 22mm mounting diameter, this joystick utilizes a spring return mechanism that reliably returns the lever to the neutral position immediately after operation, enhancing user safety and control accuracy.
The joystick is rated for 600V AC and 220mA contact current using silver alloy contacts, which ensure exceptional conductivity and longevity. The IP66 enclosure rating protects the device from dust ingress and powerful water jets, making it suitable for use in harsh indoor and outdoor industrial environments.
This device offers a mechanical life expectancy of one million cycles, underscoring its durability in demanding applications. The screw clamp terminals provide straightforward installation and secure wire connections, meeting the EN 60947-1 standards. Operating across a temperature span from -25°C to +70°C, it adapts well to various climatic conditions.
Designed to withstand high-pressure washdowns up to 7,000,000 Pa at 55°C, the joystick maintains full functionality even in environments requiring rigorous cleaning protocols. It is widely employed in machinery control panels, industrial automation, robotics for position feedback, and other applications demanding reliable joystick input.
Two-axis operation delivers precise directional control and user input. Spring return mechanism ensures immediate and automatic reset to neutral position. Robust silver alloy contacts guarantee long-lasting electrical performance.
IP66 rated housing offers outstanding protection against dust and water jets. Screw clamp terminals simplify wiring and maintenance tasks. Mechanical life of 1,000,000 cycles ensures durability in industrial usage. Wide temperature range compliance from -25°C to 70°C suits diverse environments.
High-pressure washdown capability up to 7,000,000 Pa at 55°C for hygienic industrial settings. Ideal for automation, machinery control, robotic feedback, and industrial process panels.
This joystick switch from Schneider Electric’s Harmony XD4 series combines precision, durability, and environmental resistance. It supports industrial engineers and automation professionals in achieving reliable and efficient control systems. Explore more in the Joysticks category at EnvMart for comprehensive industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The joystick is rated for a maximum operating voltage of 600V AC.
It has a mechanical life rated at 1,000,000 cycles, ensuring long-term operational reliability.
This joystick has an IP66 rating, providing resistance to dust and powerful water jets.
It operates within a temperature range of -25°C to +70°C, making it suitable for various industrial environments.
The joystick features screw clamp terminals, which facilitate easy wiring and maintenance.
This model is a two-axis joystick, allowing for intuitive directional control.
The contacts are made of silver alloy, which ensures reliable electrical conductivity and durability.
It complies with RoHS standards, ensuring it meets environmental and safety requirements.
It is widely employed in machinery control panels, industrial automation, and robotics for position feedback.
The switch contact current is rated at 220mA, suitable for demanding electrical environments.
The joystick features a spring return mechanism that automatically resets the lever to the neutral position after use, enhancing control accuracy.
The joystick is manufactured in France, reflecting its origin in European engineering standards.
