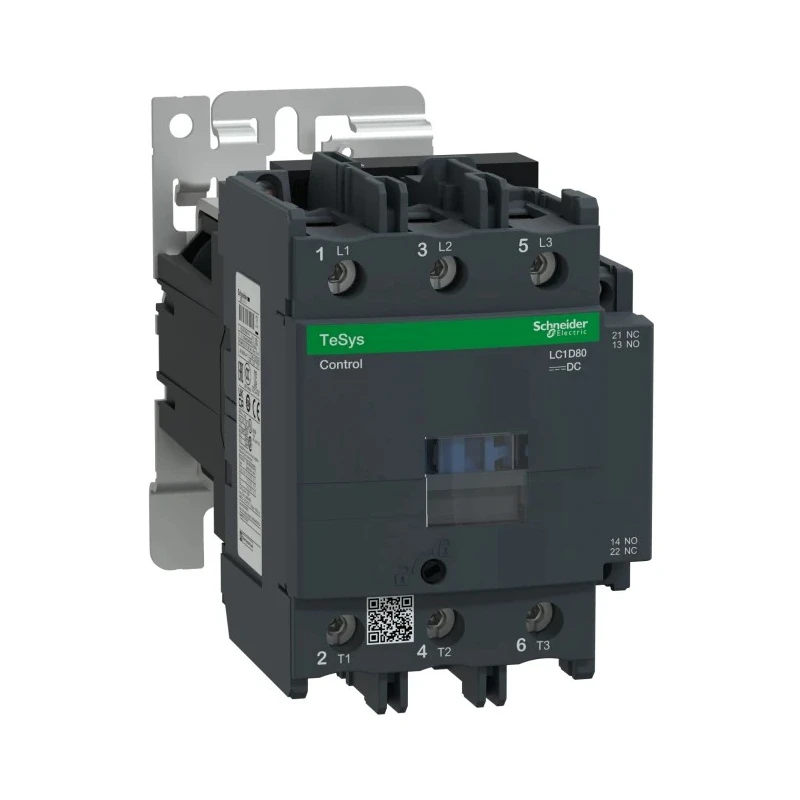

Schneider Electric LC1D Contactor, 24V DC Coil, 3-Pole, 80A, 45 kW, 3 NO Auxiliary Contacts, 1kV AC LC1D80BD

Schneider Electric LC1D80BD is a high-performance TeSys Deca contactor designed for motor control and resistive load applications. Featuring a 24V DC coil with a 3-pole configuration and a maximum current rating of 80A, this contactor suits industrial environments demanding efficiency and durability.

Its robust motor control capabilities include a 45 kW power rating, making it suitable for use with motors up to 1000V AC-3 and AC-3e standards. The device incorporates 3 normally open contacts alongside 2 built-in auxiliary contacts configured as 1 normally open and 1 normally closed, the latter being mirror certified to ensure safety compliance.

The LC1D80BD contactor is engineered for versatile mounting, supporting DIN-rail installations and screw fixing. It uses screw clamp terminals, providing secure connections for power and control circuits. The compact design occupies an 85mm width on the DIN rail, with a length of 127mm and depth of 181mm, facilitating space-efficient panel assembly.

Engineered for harsh industrial conditions, the contactor operates reliably within a temperature range from -40°C to 60°C and supports high operational rates up to 3600 cycles per hour. Mechanical endurance is rated at an exceptional 30 million cycles to meet long-term usage requirements.

Compliant with UL, IEC, CSA, CCC, EAC, and Marine certifications, and adhering to RoHS and REACh environmental standards, the LC1D80BD ensures reliable and eco-friendly operation. Its designed-for-disassembly feature underscores Schneider Electric's commitment to sustainability and ease of maintenance.

This contactor is ideal for use in industrial automation, manufacturing, HVAC systems, water treatment, and commercial motor control applications where robust and safe switching is critical.

Equipped with 3 normally open poles and 2 auxiliary contacts (1 NO and 1 NC) for versatile control. Rated power of 45 kW suitable for demanding motor control tasks up to 1kV AC. Durable DIN rail mounting design with secure screw terminals for easy installation.

Operates reliably within a temperature range of -40°C to 60°C, ideal for harsh environments. Compact dimensions: 127mm length, 85mm width, and 181mm depth, optimizing panel space. Complies with multiple international standards including UL, IEC, CSA, CCC, EAC, and RoHS.

Mechanical service life rated at 30 million cycles ensuring long-term reliability. Designed for disassembly, supporting sustainability goals with a Green Premium product certification. Manufactured in the Czech Republic with industry-grade quality assurance.
