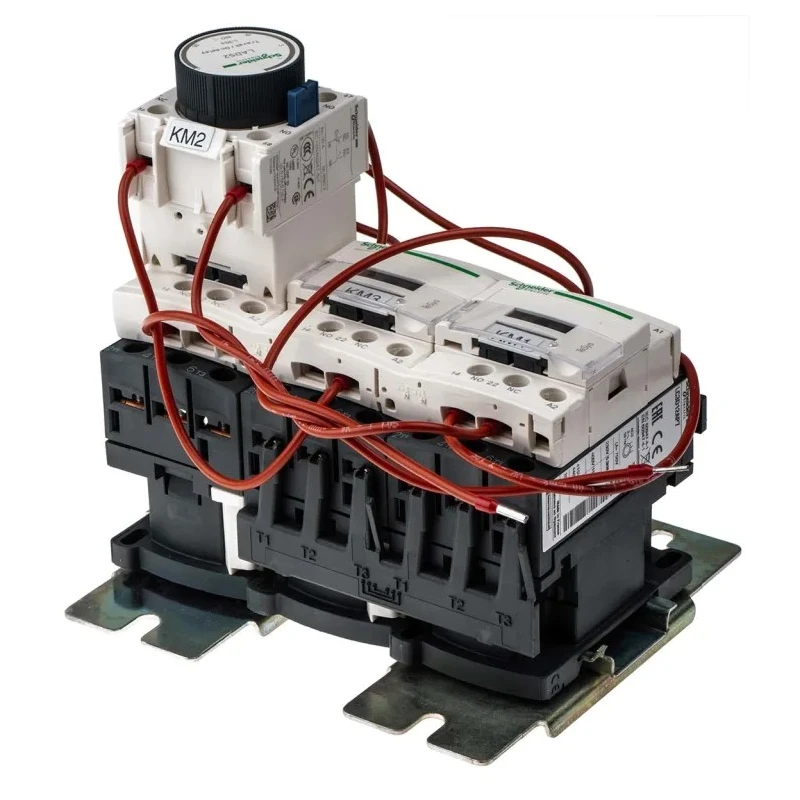

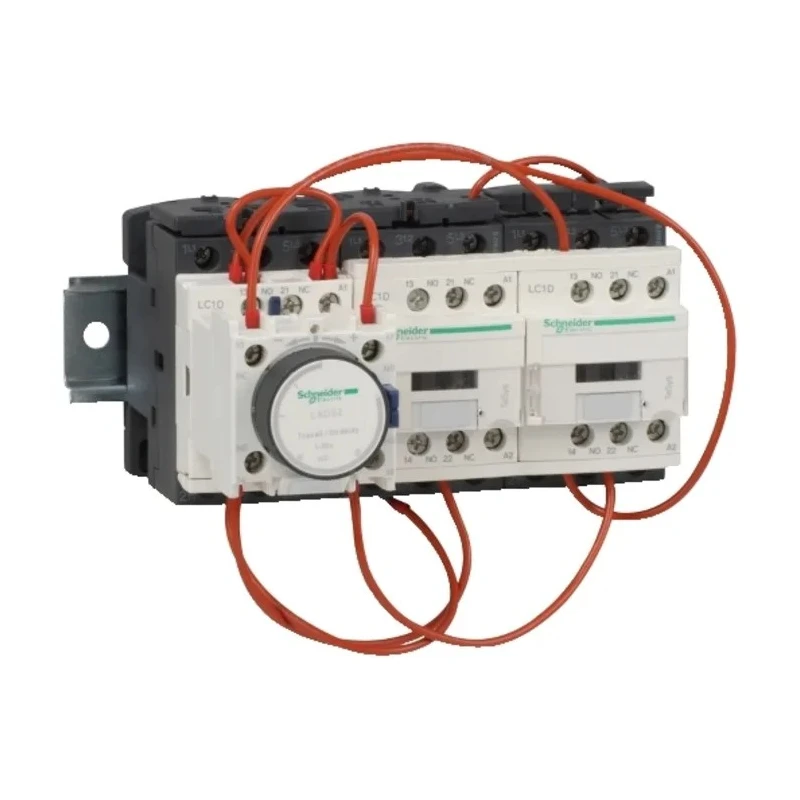

Schneider Electric TeSyS D Star Delta Starter, Star Delta, 440V AC, 11 kW, 3 Phase, IP20 LC3D12AP7

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric TeSyS D Star Delta Starter, Star Delta, 440V AC, 11 kW, 3 Phase, IP20 LC3D12AP7

Name: Schneider Electric TeSyS D Star Delta Starter, Star Delta, 440V AC, 11 kW, 3 Phase, IP20 LC3D12AP7
Brand: Schneider Electric
SKU: 198148
Price: 679.52 USD
Availability: InStock



Category Motor Starters Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Model	LC3D12AP7
IP Rating	IP20
Mount Type	Surface
Overall Length	124mm
Current Rating	12A
Series	TeSys D
Overall Width	143mm
Power Rating	11kW
Sub Type	Star Delta
Number of Phases	3
Maximum Voltage	440V ac
Number of Poles	3
Standards/Approvals	CCC, CE, CSA, GOST, UL
Overall Depth	139mm
Better World Claim	Designed for Disassembly
ABB Star Delta Starter, Star Delta, 240 V ac, IP00Brand	ABB

Key Features

Suitable for low-voltage systems with 3 phase, 440V AC operation.
Provides safe motor starting with star-connected and delta-connected stator windings.
Compact dimensions of 124mm length, 143mm width, and 139mm depth allow installation in limited spaces.
Lightweight design at 1.53 kg for easy handling during installation.
Integrated mechanical interlock prevents arcing and enhances safety during operation.
IP20 rated thermoplastic housing offers impact protection and electrical insulation.
Mounting plate included for quick and simple installation.
Applications include bucket lifts, air-conditioning units, and industrial conveyors.

Product Description

Schneider Electric LC3D12AP7 Star Delta Starter is a robust and safe solution for controlling three-phase squirrel-cage motors with a power rating of 11 kW at 440V AC in industrial environments. Featuring the TeSyS D series design, it uses star-connected stator windings for no-load motor start and switches to delta-connected windings once the motor reaches a set speed or time.

The starter supports 3-phase operation with an IP20 rating for protection against solid objects larger than 12 mm and offers a thermoplastic housing providing both impact resistance and insulation against electric shock, ensuring safe handling during installation and operation.

The compact size measuring 124 mm in length, 143 mm in width, and 139 mm in depth makes this starter suitable for setups with limited space. Weighing only 1.53 kilograms, it facilitates easy installation. An integrated mechanical interlock is included to prevent arcing between contacts, contributing to enhanced operational safety.

This unit is designed for surface mounting and complies with multiple certifications including CCC, CE, CSA, GOST, and UL. As part of Schneider Electric's Better World initiative, it is designed for disassembly to support sustainability efforts.

Typical applications include industrial equipment such as bucket lifts, air-conditioning units, and conveyor systems. Compared to Direct-On-Line starters, the star delta starter offers reduced voltage starting, minimizing electrical and mechanical stress on motors.

Suitable for motors up to 11 kW power rating at 440V AC. Compact and lightweight for space-saving and ease of installation. Mechanical interlock enhances operational safety by preventing arcing. Thermoplastic housing provides robust protection and electric insulation.

Compliant with international standards CCC, CE, CSA, GOST, and UL. Designed for surface mounting with included mounting plate. Part of Schneider Electric's sustainable Better World product line. Ideal for use in industrial conveyor systems, bucket lifts, and HVAC units.
