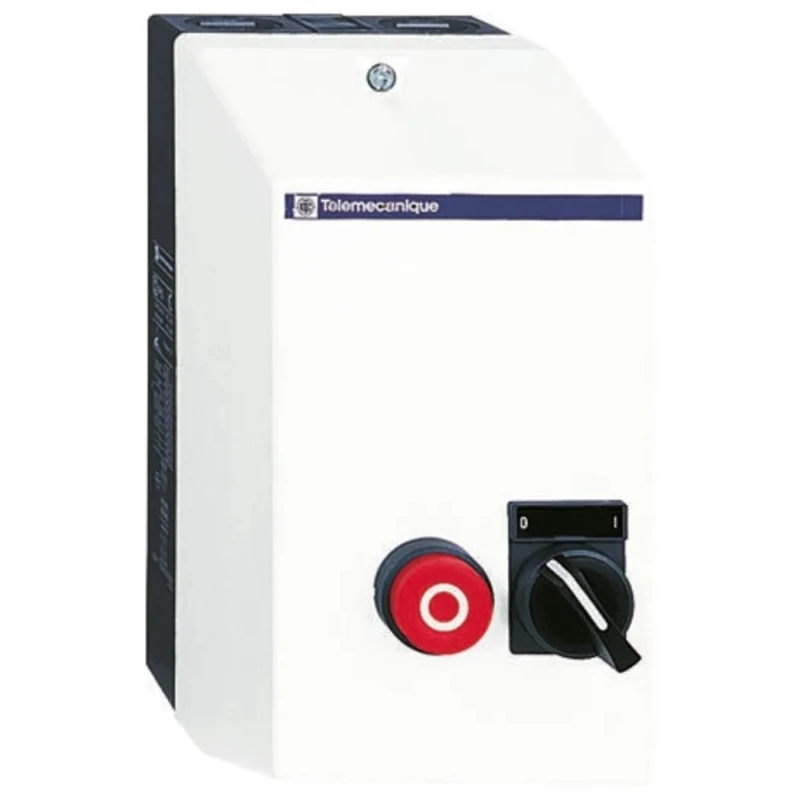

Schneider Electric DOL Starter 690 V AC, 5.5 kW, 9A, 3 Phase, IP65 Schneider Electric TeSyS LE GV2 LC LE2D09V7

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric DOL Starter 690 V AC, 5.5 kW, 9A, 3 Phase, IP65 Schneider Electric TeSyS LE GV2 LC LE2D09V7

Name: Schneider Electric DOL Starter 690 V AC, 5.5 kW, 9A, 3 Phase, IP65 Schneider Electric TeSyS LE GV2 LC LE2D09V7
Brand: Schneider Electric
SKU: 198143
Price: 570.95 USD
Availability: InStock



Category Motor Starters Brand Schneider Electric Condition New

Specifications

Country of Origin	France
Brand	Schneider Electric
Model	LE2D09V7
IP Rating	IP657
Mount Type	Surface
Overall Length	201mm
Current Rating	9A
Series	TeSyS LE - GV2 - LC
Overall Width	101mm
Power Rating	5.5kW
Sub Type	DOL
Number of Phases	3
Maximum Voltage	690V ac
Number of Poles	3
Standards/Approvals	VDE, IEC, EN
Overall Depth	160mm

Key Features

Designed for surface mounting with removable steel base plates.
Reversing DOL starter configuration with three poles for robust motor control.
IP65 rated enclosure with impact resistant polycarbonate front cover.
Complies with VDE, IEC, and EN standards for industrial applications.
Suitable for controlling 3-phase motors up to 5.5 kW power rating.
Plastic and metal combination housing for enhanced durability.
Requires Telemechanique 'K' range overload relay for operation.

Product Description

Schneider Electric LE2D09V7 is a Direct On Line (DOL) Starter from the TeSyS LE - GV2 - LC series designed for industrial motor control applications. It supports a maximum voltage of 690 V AC and a power rating of 5.5 kW for three-phase motors at a current rating of 9A. The device is engineered for surface mounting with a sturdy removable steel base plate to facilitate installation on uneven surfaces and provide earthing convenience.

The starter features an impact resistant polycarbonate front cover, which is adaptable to fitting additional components without drilling, enhancing flexibility during assembly. Its enclosure complies with IP65 protection standards, offering robust resistance to dust and water ingress, suitable for harsh industrial environments. This DOL starter carries certifications under VDE, IEC, and EN standards, ensuring it meets stringent safety and performance criteria.

With three poles and overall compact dimensions of 201 mm length, 101 mm width, and 160 mm depth, it is optimized for efficient space utilization in motor control panels. The product is constructed with a combination of plastic and metal housing materials for durability and reliability under industrial usage conditions.

Note that an overload relay, recommended from the Telemechanique 'K' range, must be installed for the starter to function correctly, providing motor protection against overload conditions.

Designed for surface mounting with removable steel base plates. Reversing DOL starter configuration with three poles for robust motor control. IP65 rated enclosure with impact resistant polycarbonate front cover. Complies with VDE, IEC, and EN standards for industrial applications.

Suitable for controlling 3-phase motors up to 5.5 kW power rating. Compact dimensions for easy panel integration: 201 x 101 x 160 mm. Plastic and metal combination housing for enhanced durability. Requires Telemechanique 'K' range overload relay for operation.

Ideal for industrial automation, electrical motor control, and manufacturing environments. Discover more Schneider Electric Automation & Control Gear products on EnvMart.
