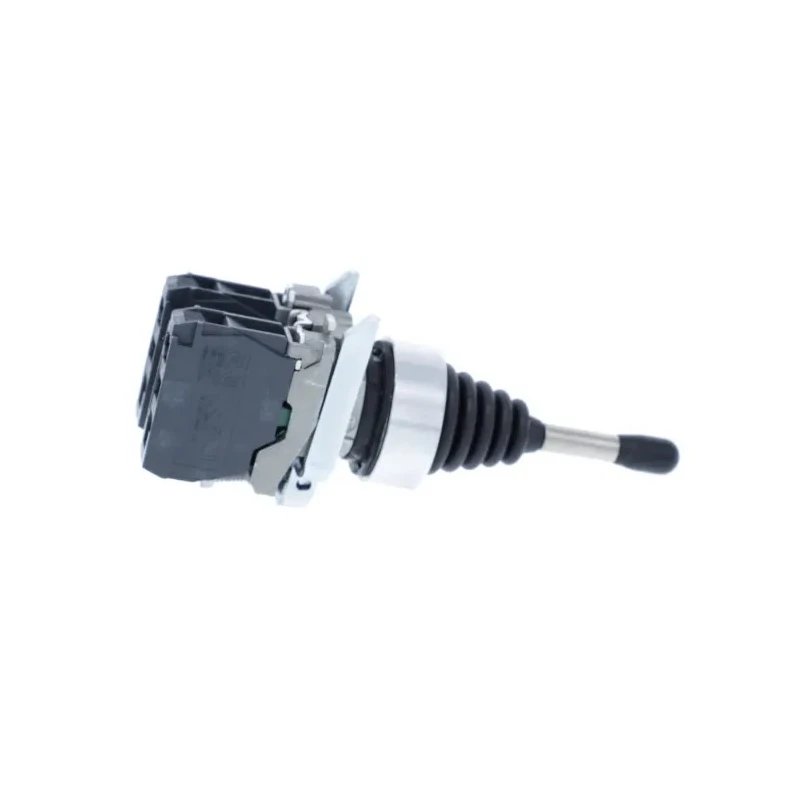

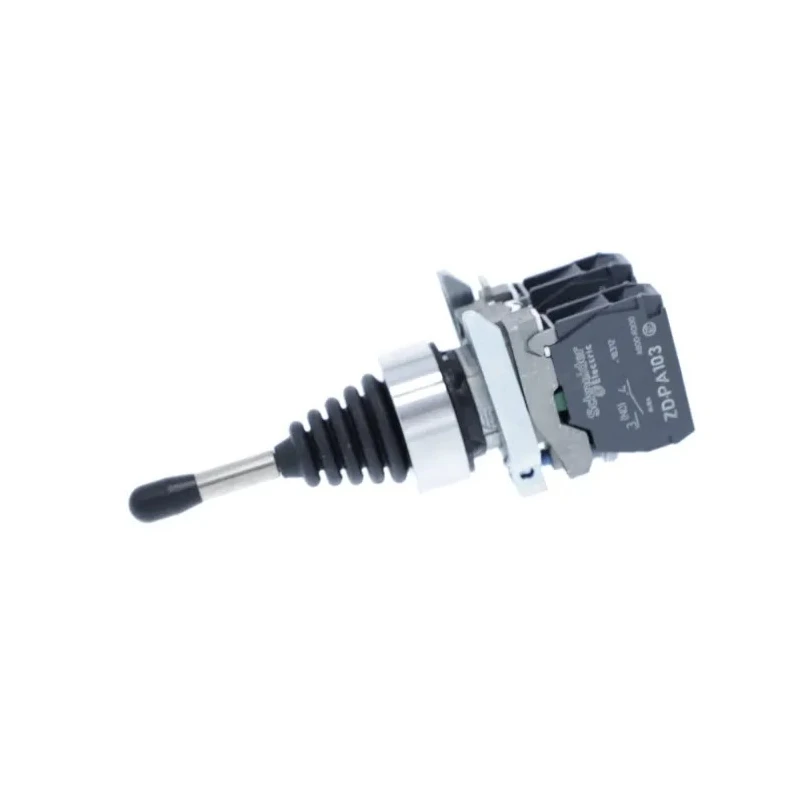

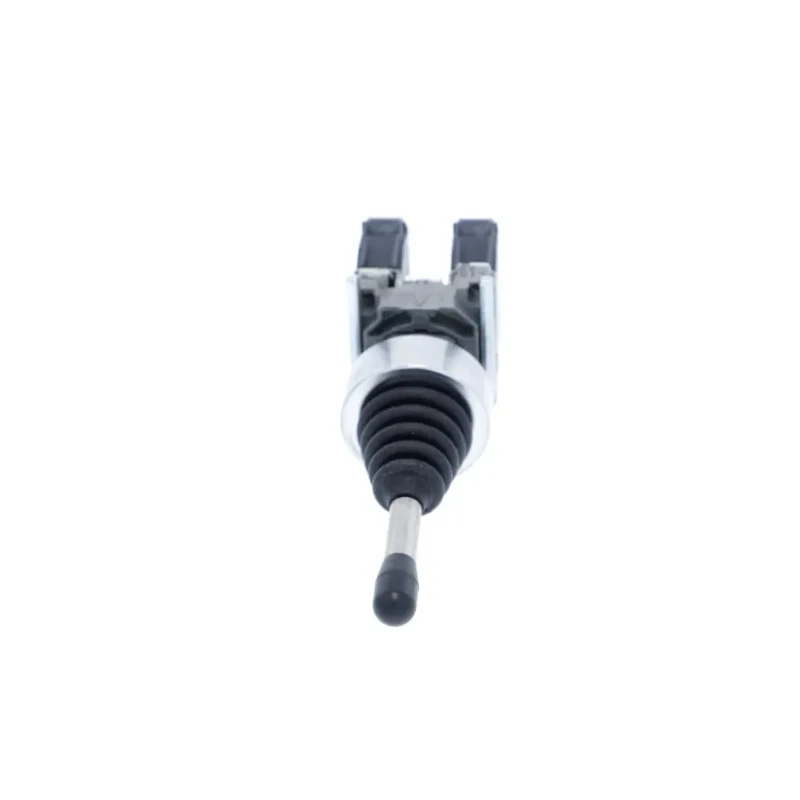

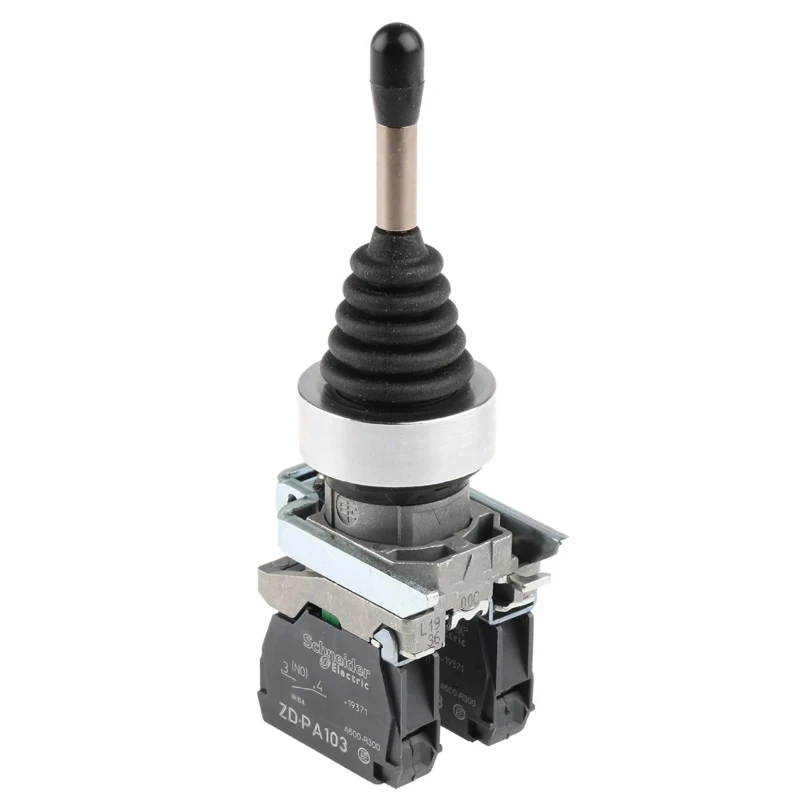

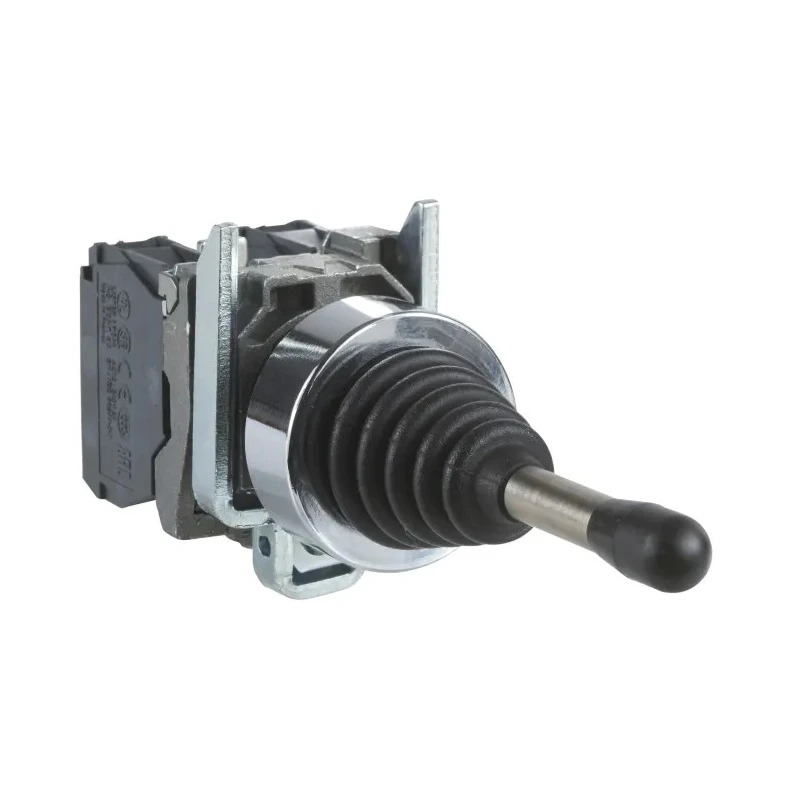

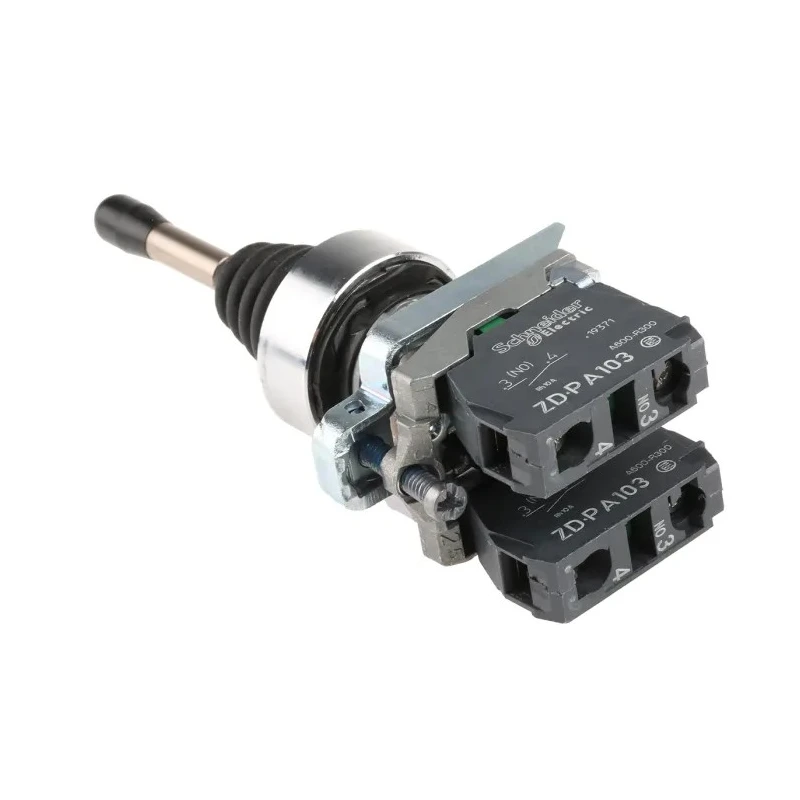

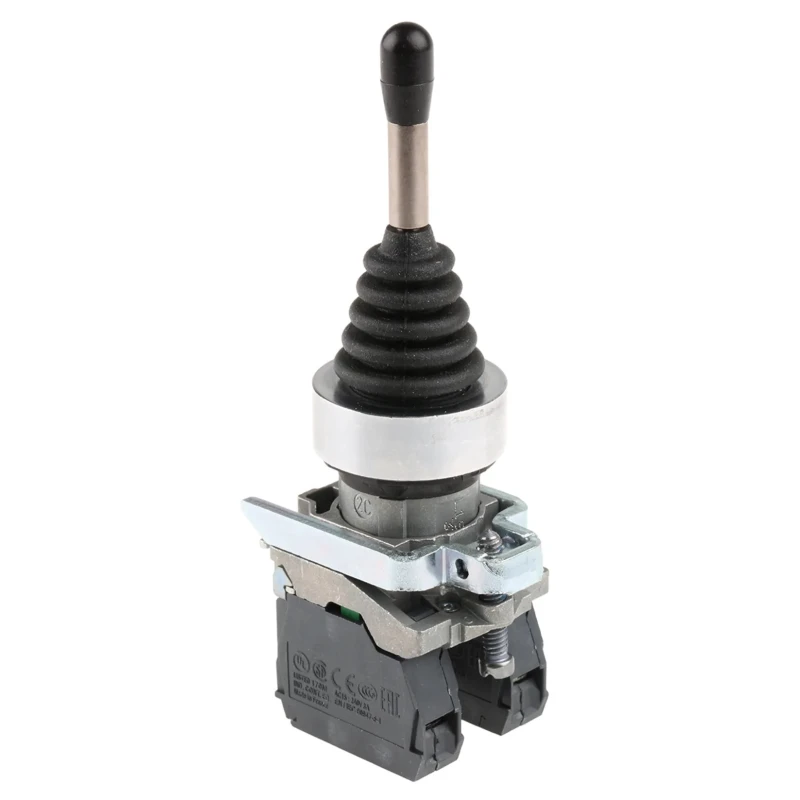

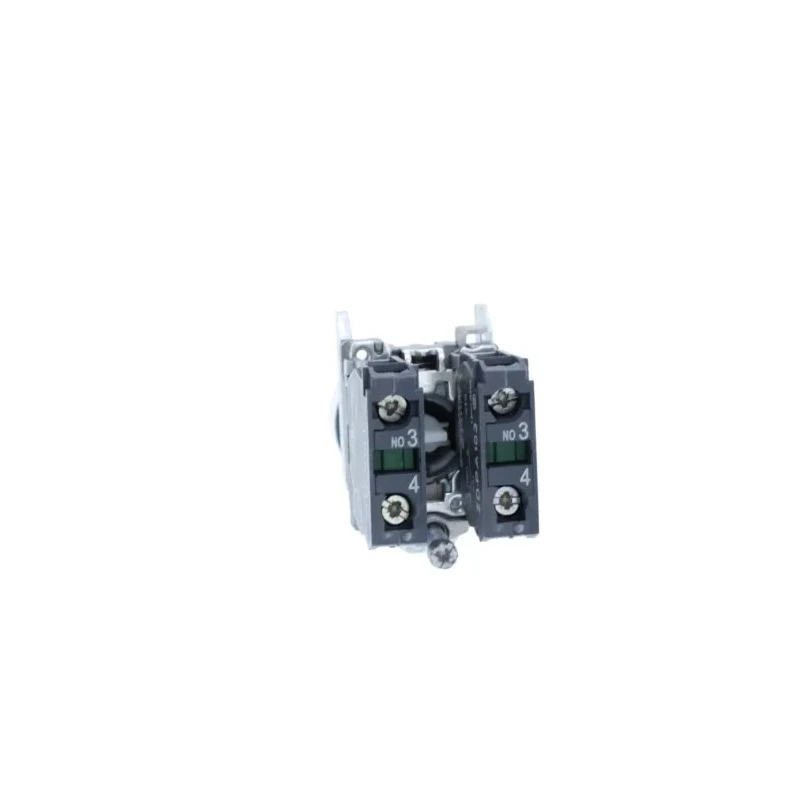

Schneider Electric Harmony XD4 2-Axis Joystick Lever Stay Put IP66 600V AC 220mA XD4PA12
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Model | XD4PA12 |
| IP Rating | IP66 |
| Handle Type | Lever |
| Contact Material | Silver Nickel Alloy |
| Series | Harmony XD4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Axes | 2 |
| Standards/Approvals | RoHS |
| Switch Contact Current | 220mA |
| Mechanical Life | 1000000Cycles |
| Contact AC Voltage | 600V ac |
| Better World Claim | Repairable by the End User |
| Switch Technology | Stay Put |
| 2 direction stay put joystick controllerBrand | Telemecanique |
| Euchner 2-Axis Joystick Switch Lever, Stay Put, IP65 230 V ac, 24 V dcBrand | Euchner |
Key Features
- The joystick features a lever handle for precise control in two axes.
- Designed to stay put in the set position until intentionally moved.
- Rated for AC voltage up to 600 V and switch contact current of 220 mA.
- Equipped with corrosion-resistant silver nickel alloy contacts for durability.
- Mechanical service life of 1,000,000 operation cycles ensures long-term reliability.
- IP66 rating provides excellent protection against dust and powerful water jets.
- Operating temperature range from -25°C to +70°C for use in harsh industrial environments.
- Zamak fixing collar ensures secure mounting in standard 22mm panel openings.
Product Description
Schneider Electric XD4PA12 2-Axis Joystick lever switch with Stay Put technology is designed for robust industrial control systems requiring precise and stable joystick positioning. With an IP66 rating, it is protected against dust and harsh water jets, making it suitable for challenging industrial environments.
The lever handle allows intuitive operation across two axes, maintaining position until deliberately moved by the user. It supports AC voltages up to 600 V and a switch contact current rating of 220 mA, equipped with high-quality silver nickel alloy contacts to withstand corrosion and ensure longevity.
Featuring a durable metal body plated with chromium, this joystick provides mechanical reliability rated at one million cycles of operation. Its operating temperature range extends from -25°C to +70°C, making it versatile for diverse climate conditions in industrial, construction, seaport, airport, and medical technology applications.
Installation is straightforward with a Zamak fixing collar that secures the joystick easily into industry-standard 22 mm diameter panel cutouts. The terminal connections utilize screw clamp terminals for reliable electrical attachment without need for special tools.
The joystick features a lever handle allowing two-axis control with stay put positioning. Rated IP66 for protection against dust ingress and powerful water jets. Corrosion-resistant silver nickel alloy contacts ensure durability and reliable electrical performance.
Mechanical life extends to 1,000,000 operational cycles for long service. Wide operating temperature range from -25°C to +70°C for use in harsh conditions. Secure panel mounting using Zamak fixing collar and standard 22 mm panel hole.
Suitable for industrial control in construction, seaport, airport, and medical equipment.
For professionals requiring a reliable joystick switch that balances precision, durability, and environmental resistance, the Schneider Electric Harmony XD4 series with model XD4PA12 is an ideal choice. Its compliance with RoHS and repairable by end user makes it a sustainable and practical solution in industrial automation systems.
Explore more high-quality industrial controls and components in the Electronics & Electricals category at EnvMart.
Explore more products in our Joysticks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 70°C.
This joystick has an IP66 rating, providing excellent protection against dust and powerful water jets.
It features a lever handle that allows for precise control in two axes.
The joystick is equipped with silver nickel alloy contacts, which are corrosion-resistant.
The switch contact current rating is 220 mA.
It has a mechanical life rated for 1,000,000 operational cycles.
The joystick utilizes screw clamp terminals for reliable electrical attachment.
The minimum operating temperature is -25°C.
It employs Stay Put technology, allowing the lever to maintain its position until intentionally moved.
The joystick is manufactured in France.
It is designed for standard 22 mm panel openings, secured by a Zamak fixing collar.
This model complies with RoHS standards.
