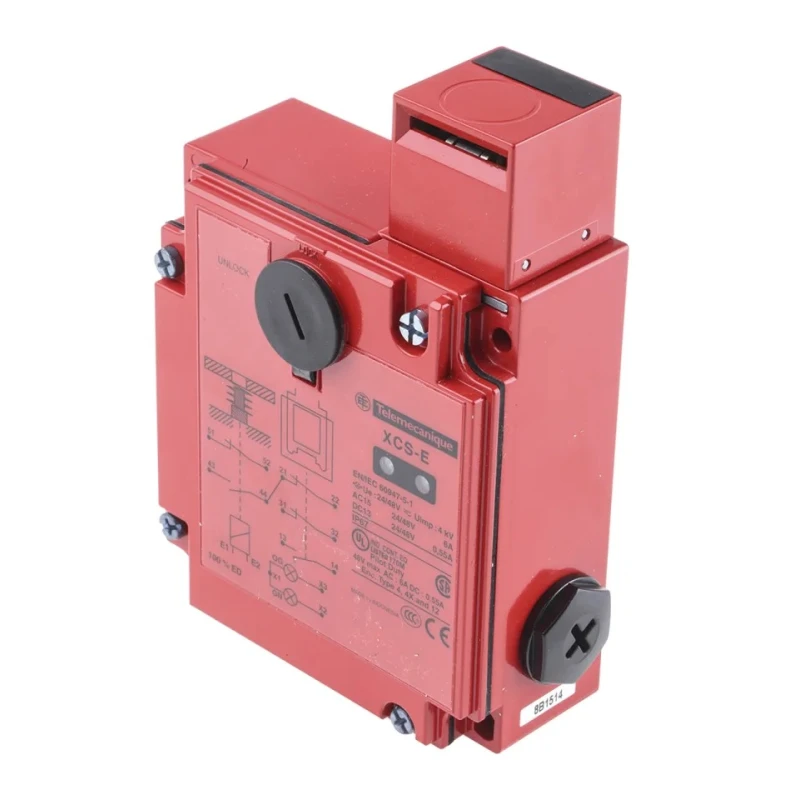

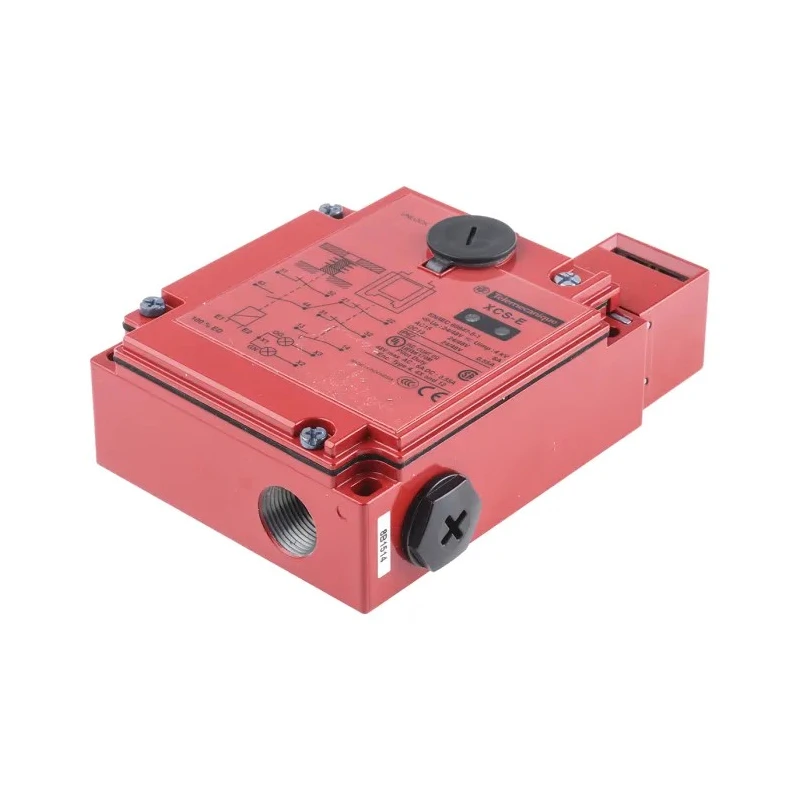

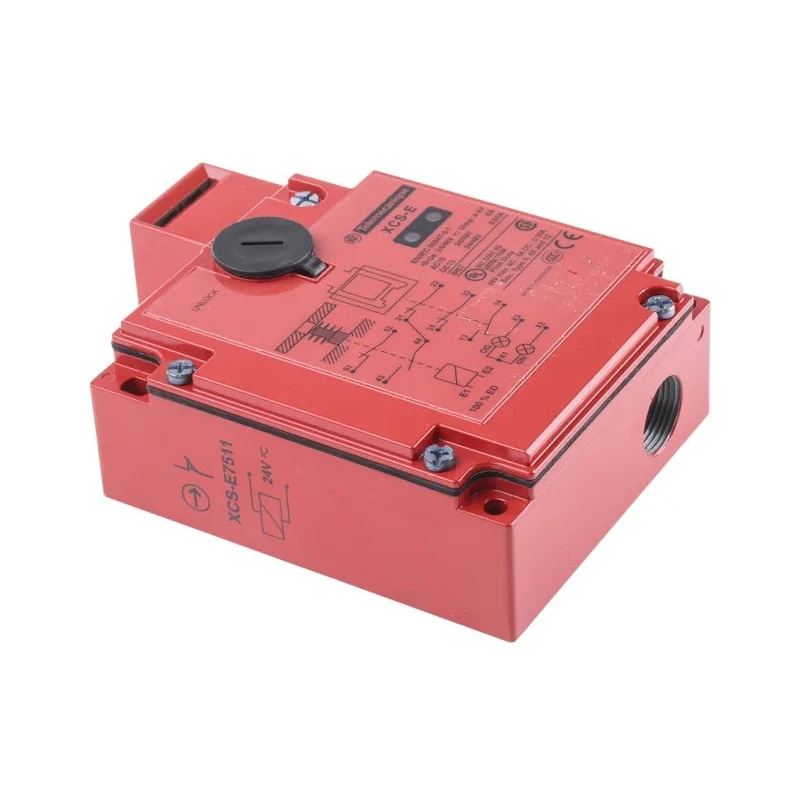

Telemecanique Sensors XCS-B Series Solenoid Interlock Switch 24V AC/DC Power to Lock Actuator Included XCSE7511

Telemecanique Sensors XCSE7511 is a solenoid interlock safety switch from the XCS-B Series designed for industrial machinery requiring robust safety interlocks. Operating at 24 V AC/DC, this solenoid interlock switch provides power to lock functionality with the actuator included, helping to secure guards or doors during machine operation.

The switch features a rectangular design with a durable Zamak metal housing that ensures mechanical reliability and resistance to harsh industrial environments. The unit incorporates a key-operated turret head with 2 Normally Closed and 1 Normally Open safety contacts for safe slow break operation.

With an IP67 rating, it offers high protection against ingress of dust and water, making it suitable for demanding factory conditions. The switch includes screw terminal clamping and dual PG13.5 conduit entries compatible with cable diameters of 9 to 12 mm, facilitating secure and easy wiring.

This solenoid interlock switch is certified to international standards including CSA, UL, IEC, and EN, ensuring performance and safety compliance. It boasts a mechanical life of 1,000,000 cycles and an operating temperature range from -25°C to 40°C.

The XCSE7511 switch can be integrated into safety systems to achieve up to category 4 safety level with appropriate monitoring and wiring, compliant with EN/ISO 13849-1, and can reach Performance Level e and SIL 3 depending on system design.

The switch operates at 24V AC/DC supply voltage ensuring compatibility with common industrial power systems. Features solenoid locking for safety ensuring machinery stops when guards or doors are opened. Constructed with durable Zamak metal housing for reliable protection and longevity.

Includes safety contacts: 2 Normally Closed (NC) and 1 Normally Open (NO) with slow break for safe switching. Rated IP67 for excellent protection against dust and water ingress in industrial environments. Equipped with screw terminals and two PG13.5 conduit entries supporting cable diameters of 9 to 12 mm.

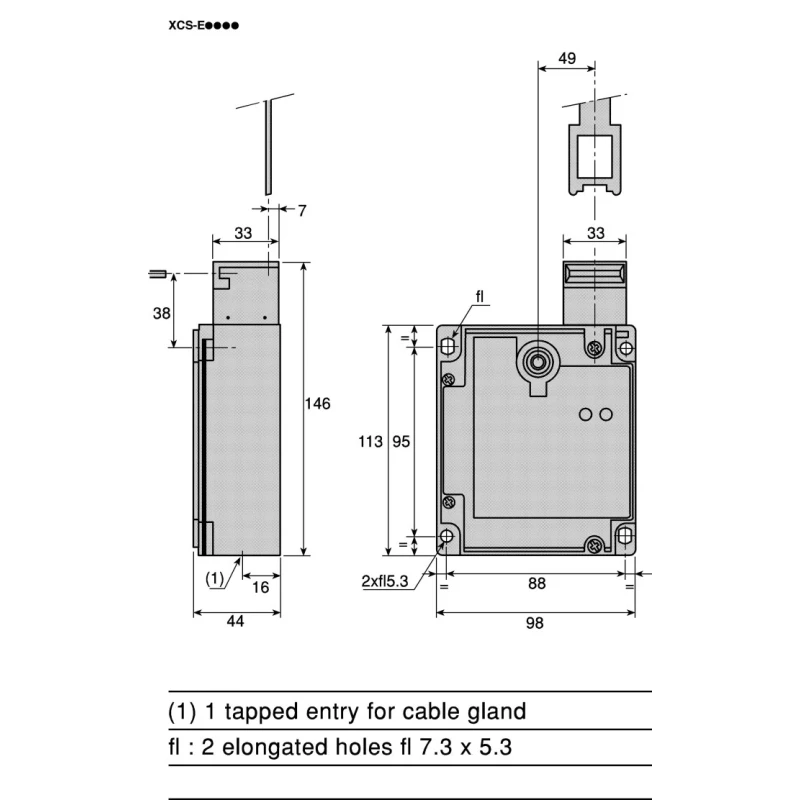

Compact dimensions of 146 mm depth, 98 mm length, and 44 mm width for versatile installation. Certified to CSA, UL, IEC, and EN standards, ensuring compliance with global safety regulations. Mechanical life rated for 1,000,000 cycles, suitable for demanding applications.

Operating temperature range from -25°C to 40°C supports varied industrial climates.

This Solenoid Interlock Switch is ideal for industrial, manufacturing, automation, and machinery safety applications where access to hazardous areas must be controlled. It can be used in heavy duty machines requiring locking and interlocking functions to protect operators and equipment.
