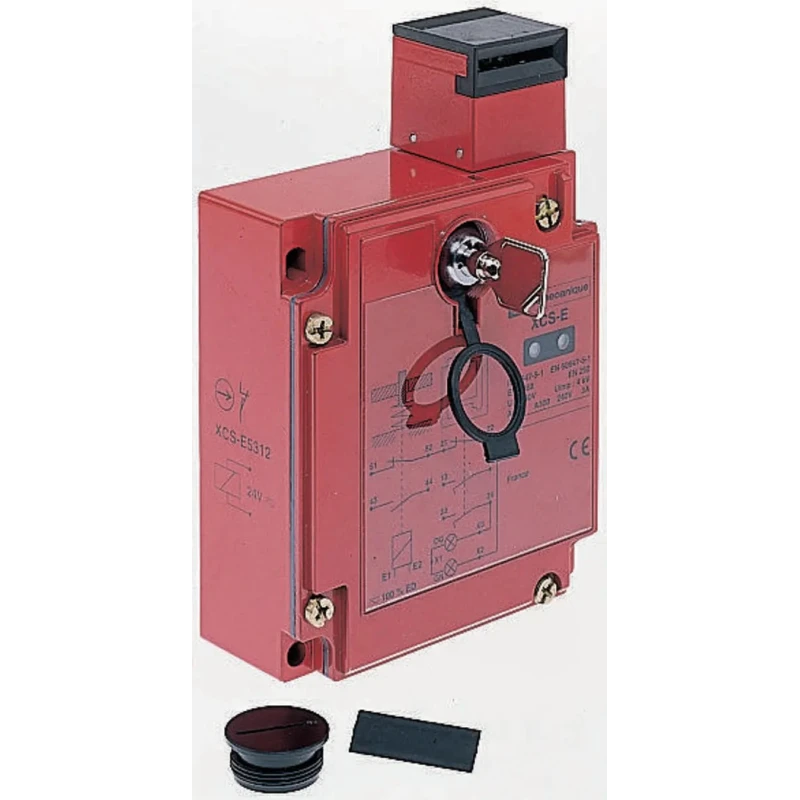

Telemecanique Sensors Solenoid Interlock Switch with Power to Unlock Actuator Included 110, 120V AC XCSE5331

Telemecanique Sensors XCSE5331 Solenoid Interlock Switch is a high-quality safety device designed for industrial automation systems. It operates at 110 to 120V AC supply voltage and consumes 10 VA power, suitable for heavy machinery requiring guarded operation safety. The metal housing ensures robustness and protection with an IP67 rating.

This safety interlock switch incorporates a key-operated lock mechanism to allow authorized override, supplied with the key. Visibility of guard and lock status is provided via dual LED indicators, orange and green respectively, enhancing operational safety cues.

The device includes a single Normally Closed (NC) safety contact rated for 0.27A contact current and 250V AC voltage, ensuring reliable switch operation within specified limits. The switch features a screw terminal type and conduit entry of size M20, facilitating secure wiring and mounting.

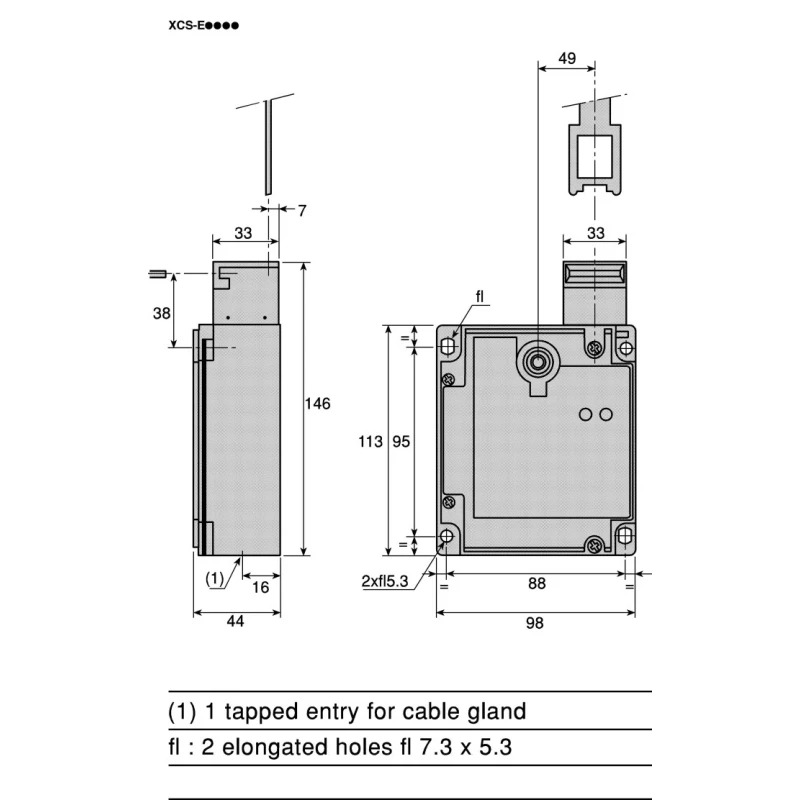

Its turret heads are adjustable, allowing rotation through 360 degrees in 90-degree steps to provide versatile installation options. The compact size with dimensions 98mm length, 44mm width, and 146mm depth allows for space-efficient integration.

Certified to meet rigorous standards including UL, CSA, IEC, and EN, this Solenoid Interlock Switch meets industrial safety and quality requirements. The product is especially suited for industrial, manufacturing, and automation applications where guarding and operator protection is critical.

The power to unlock actuator is included with the unit, providing a complete safety interlock solution. Use cases extend to construction machinery, production lines, and other heavy duty automated equipment.

The switch includes a key-operated lock allowing authorised override. It features two LED indicators for guard status and lock position. Constructed with heavy duty metal housing rated IP67 for durability. Turret heads are rotatable through 360° in 90° increments for flexible installation.

Contact rating supports 250V AC voltage with 0.27A current. Supplies voltage at 110V or 120V AC and consumes 10VA power. Designed for safety with one Normally Closed (NC) contact and screw terminal type. Compact dimensions with length 98mm, width 44mm, and depth 146mm.

Certified to standards UL, CSA, IEC, and EN for reliable industrial use. Ideal for use in heavy duty industrial machines to protect operators by interrupting equipment when guards open. Explore more industrial sensors and interlock switches at EnvMart for comprehensive automation safety solutions.
