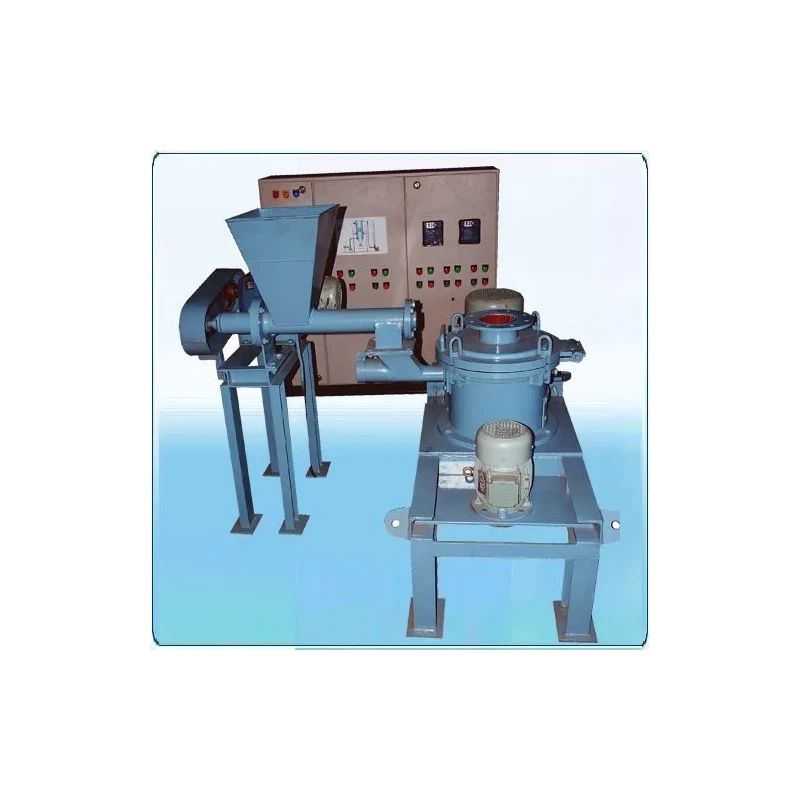

Air Classifying Mill Machine ACM-30
Specifications
| Country of Origin | India |
|---|---|
| Frequency | 50 Hz |
| Capacity | 100-2000 KG PER HOUR |
| Automation Grade | Semi-Automatic |
| Material | ss or Ms |
| Applications | Industrial |
| Voltage (V) | 415-440 |
| Type of Machine | Air Classifiers |
| MOTOR FOR MILL | 22 KW |
| MOTOR FOR CLASSIFIER | 4 KW |
| SPEED OF MILL (Max.) | 4500 RPM |
| SPEED OF CLASSIFIER (Max.) | 4000 RPM |
| Capacity Factor | 2.7 |
Key Features
- Material is ground by pressure & friction between stationary bull ring and the rotating rollers, which swing outwards due to the centrifugal force
- High performance
- Air Classifying Mill is used to ground and classify the materials like Phenolic Resin, Sulpher, Ammonium Phosphate, Epoxy/Polyester resin, Fish Meal, Iron Oxide, Lead Oxide, Carbon, Lime Stone, Melamine Resin, Organic Pigment, Sorbitol, Sulpher, PVC, Talcum, etc.
Product Description
Air Classifying Mill Machine ACM-30, Material To Be Ground Is Fed To The Grinding Chamber Through Star Feeder. The Positioning Of The Ploughs Ensures That The Material Continuously Passes Between The Rotating Rollers And The Stationary Bull Ring And As Such This Brings About Grinding Process. The Ground Material Is Swept By The Ascending Stream Of Air And Carried To The Classifier. Over Sized Particles Are Returned By The Classifier To The Grinding Chamber For Regrinding. The Desired Product Is Carried To The Cyclone. The Final Product Is Collected At The Bottom Of The Cyclone While The Air Having Fine Dust Is Discharged From The Top Of The Cyclone And The Dust Laden Air Goes To The Dust Collection Unit Where The Dust Is Separated And Clean Air Is Discharged In The Atmosphere
