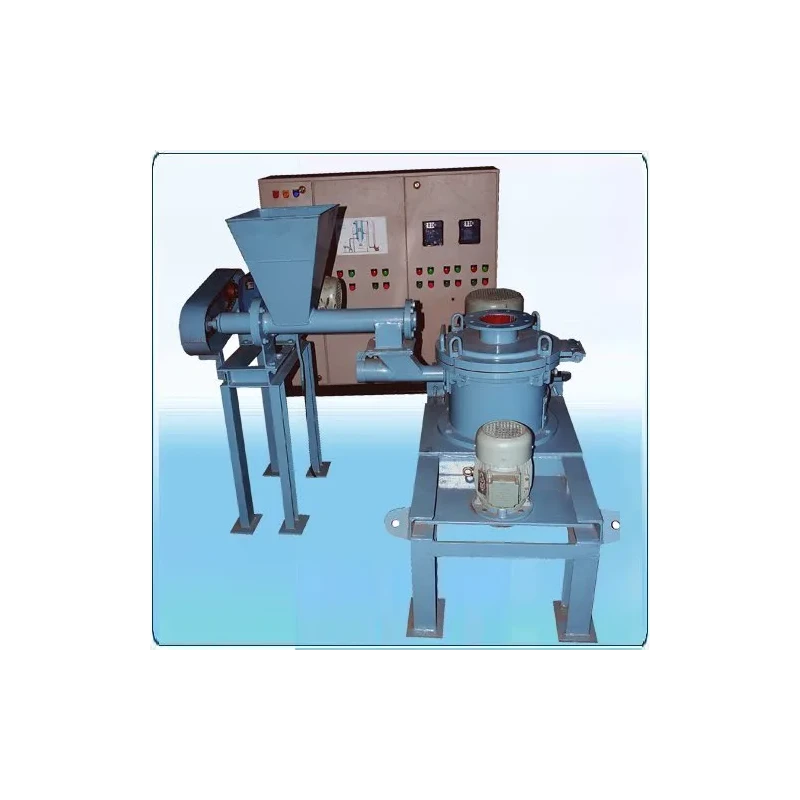

Air Classifying Mill Machine ACM-20
Specifications
| Country of Origin | India |
|---|---|
| Frequency | 50 Hz |
| Capacity | 100-2000 KG PER HOUR |
| Automation Grade | Semi-Automatic |
| Material | ss or Ms |
| Applications | Industrial |
| Voltage (V) | 415-440 |
| Type of Machine | Air Classifiers |
| MOTOR FOR MILL | 15KW |
| MOTOR FOR CLASSIFIER | 2.2KW |
| SPEED OF MILL (Max.) | 6000 RPM |
| SPEED OF CLASSIFIER (Max.) | 6000 RPM |
| Capacity Factor | 1.8 |
Key Features
- Material is ground by pressure & friction between stationary bull ring and the rotating rollers, which swing outwards due to the centrifugal force
- High performance
- Air Classifying Mill is used to ground and classify the materials like Phenolic Resin, Sulpher, Ammonium Phosphate, Epoxy/Polyester resin, Fish Meal, Iron Oxide, Lead Oxide, Carbon, Lime Stone, Melamine Resin, Organic Pigment, Sorbitol, Sulpher, PVC, Talcum, etc.
Product Description
Air Classifying Mill Machine ACM-20, Material To Be Ground Is Fed To The Grinding Chamber Through Star Feeder. The Positioning Of The Ploughs Ensures That The Material Continuously Passes Between The Rotating Rollers And The Stationary Bull Ring And As Such This Brings About Grinding Process. The Ground Material Is Swept By The Ascending Stream Of Air And Carried To The Classifier. Over Sized Particles Are Returned By The Classifier To The Grinding Chamber For Regrinding. The Desired Product Is Carried To The Cyclone. The Final Product Is Collected At The Bottom Of The Cyclone While The Air Having Fine Dust Is Discharged From The Top Of The Cyclone And The Dust Laden Air Goes To The Dust Collection Unit Where The Dust Is Separated And Clean Air Is Discharged In The Atmosphere
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ACM-20 has a grinding capacity ranging from 100 to 2000 kg per hour.
This model can grind and classify materials such as Phenolic Resin, Sulphur, Ammonium Phosphate, Epoxy/Polyester resin, and various other substances including organic pigments and talcum.
The ACM-20 operates on a voltage range of 415 to 440 volts.
Both the mill and classifier can operate at a maximum speed of 6000 RPM.
The ACM-20 is classified as a semi-automatic machine.
The ACM-20 is manufactured in India.
The machine can be constructed from stainless steel (SS) or mild steel (MS).
This model is suitable for industrial applications, particularly in waste management and recycling processes.
The capacity factor for this model is 1.8.
The ACM-20 operates at a frequency of 50 Hz.
