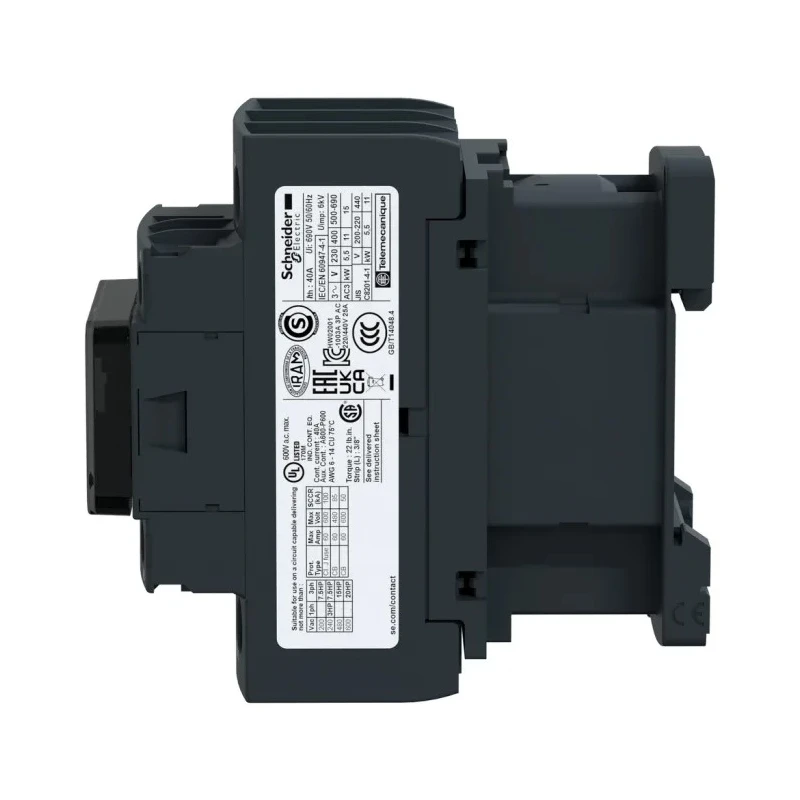

Schneider Electric Contactor 3-Pole 32 A 15 kW 690V AC, 220V AC Coil LC1D32M7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 85mm |
| Model | LC1D32M7 |
| Depth | 90mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 15kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 220V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 220V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Compact design with dimensions of 85mm x 45mm x 90mm for space-saving installation.
- Rated for a power load of 15 kW at 220V AC and operational current of 32 A.
- Equipped with 3 normally open contacts (3 NO) and 2 auxiliary contacts (1 NO and 1 NC) with mirror certification.
- Supports mounting on DIN Rail with screw clamp terminals for secure connections.
- Wide operating temperature range from -5°C to 60°C ensuring reliable operation in diverse environments.
- Meets multiple international standards including CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, and UL certifications.
- Suitable for motor control, resistive load switching, HVAC systems, and lighting control applications.
- Designed for high cycle rates up to 3600 cycles/hour with robust reliability and durability.
Product Description
Schneider Electric LC1D32M7 is a high-performance 3-pole contactor engineered for motor control tasks and industrial automation. It features a 220V AC coil and is capable of handling contact voltages up to 690V AC with a contact current rating of 32A. The contactor is compact with dimensions of 85mm in length, 45mm in width, and 90mm in depth, making it suitable for DIN rail mounting or screw fixing in control panels.
This contactor supports a power rating of 15 kW at 220V AC and includes 3 normally open contacts along with 2 auxiliary contacts configured as 1 NO and 1 NC (mirror certified for safety). Its screw clamp terminals facilitate secure electrical connections, ensuring reliable operation in resistive load and motor control applications.
Built for durability and efficiency, the LC1D32M7 can operate reliably within a temperature range of -5°C to 60°C and withstands up to 3600 operating cycles per hour. It carries multiple international certifications including CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, and UL, confirming its compliance with rigorous industrial standards.
The contactor is ideal in various industrial and commercial settings such as manufacturing, HVAC systems, motor starters, and lighting control, providing high safety and power handling capabilities. Its Green Premium status highlights commitment to environmental responsibility through designed for disassembly and RoHS compliance.
Compact 3-pole contactor for versatile motor control applications. Screw clamp terminals provide easy and secure wiring. Wide temperature tolerance ensures performance in diverse environments. Designed for high operational cycles per hour ensuring durability.
Meets multiple international safety and performance standards. Suitable for HVAC, motor control, and lighting applications. Green Premium product with sustainability compliance. DIN rail or screw mounting options for flexible installation.
