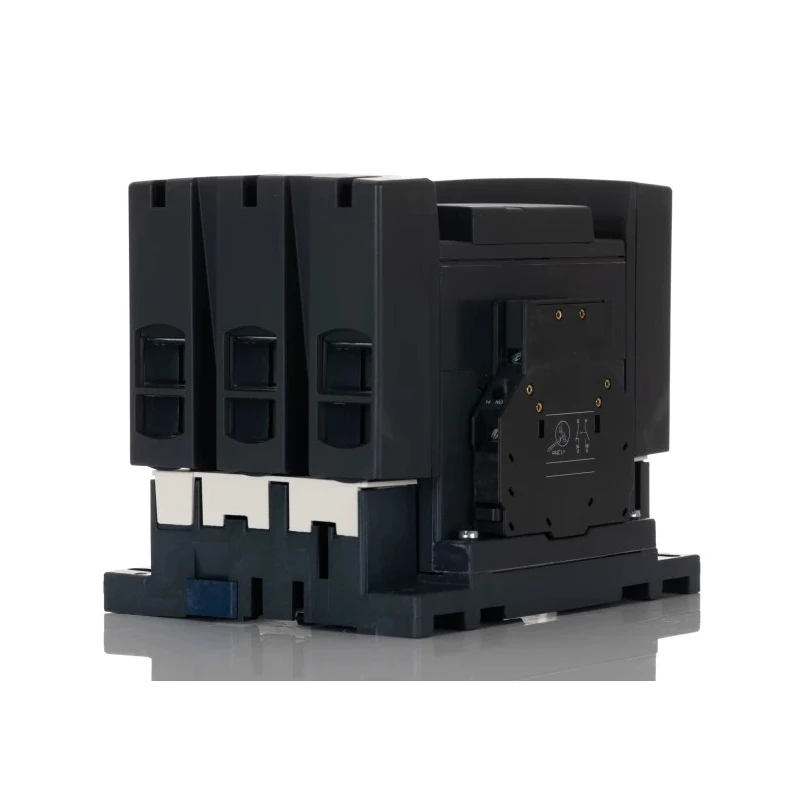

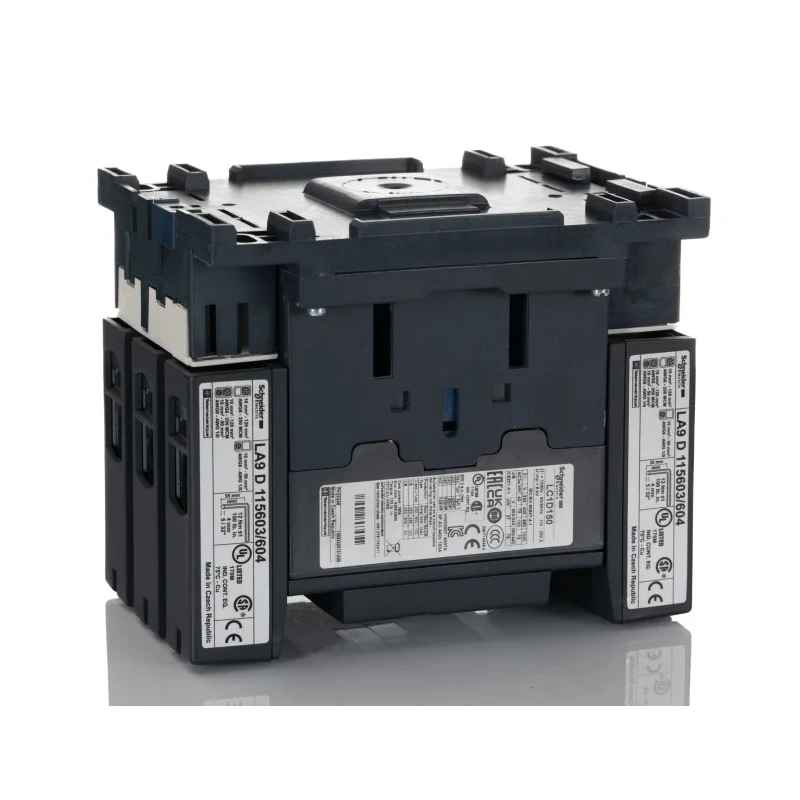

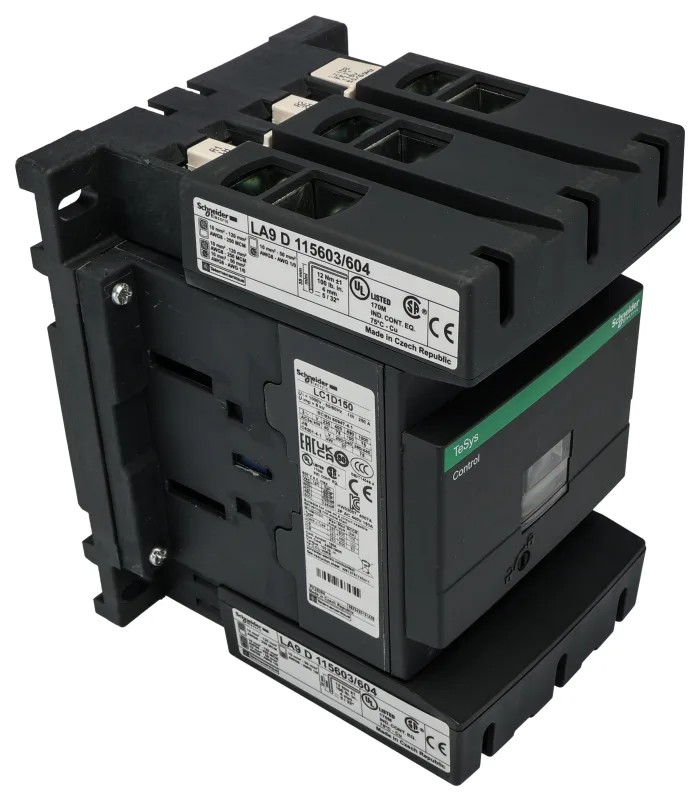

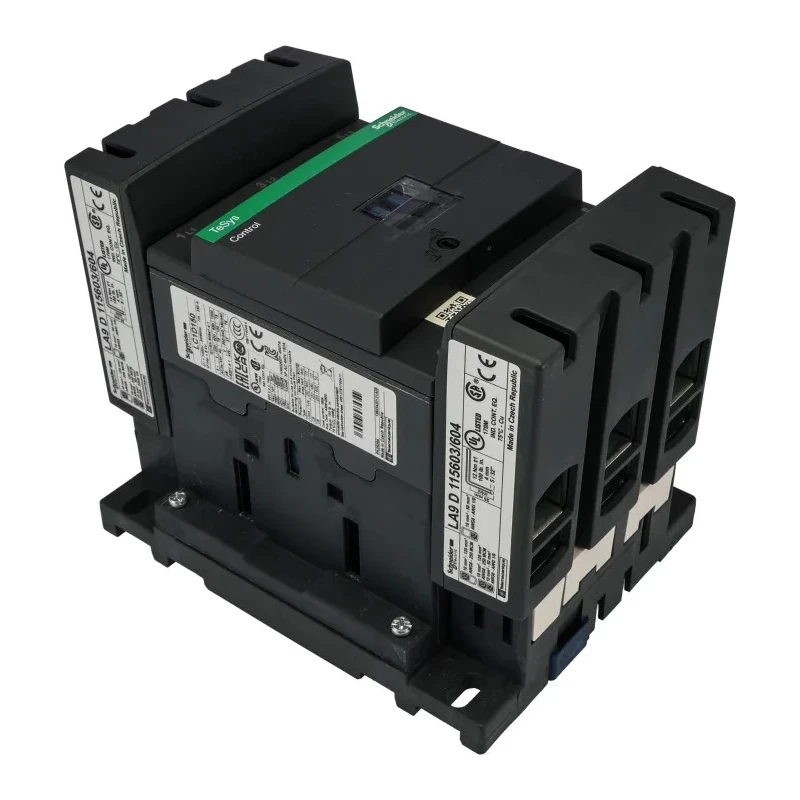

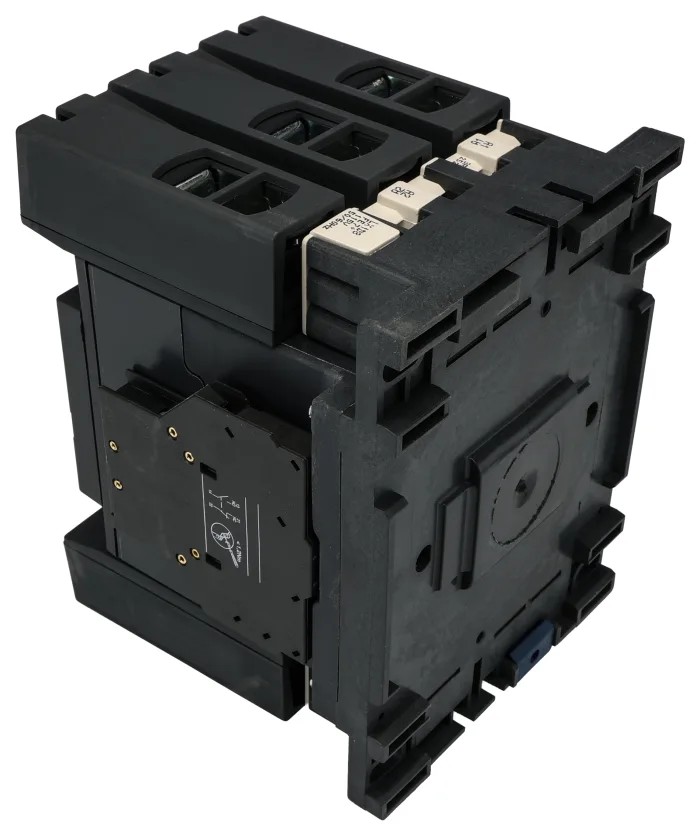

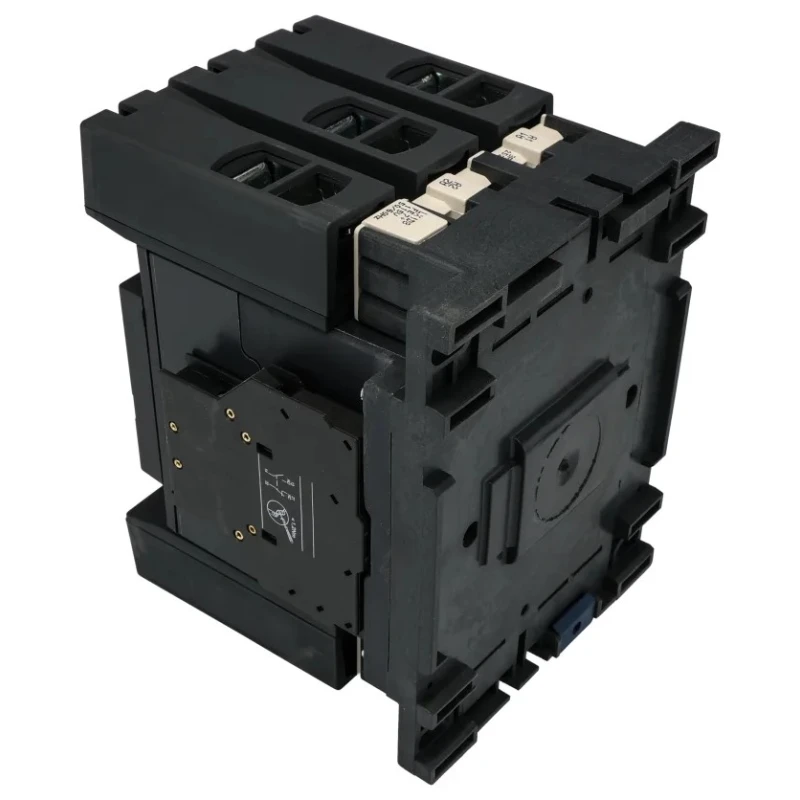

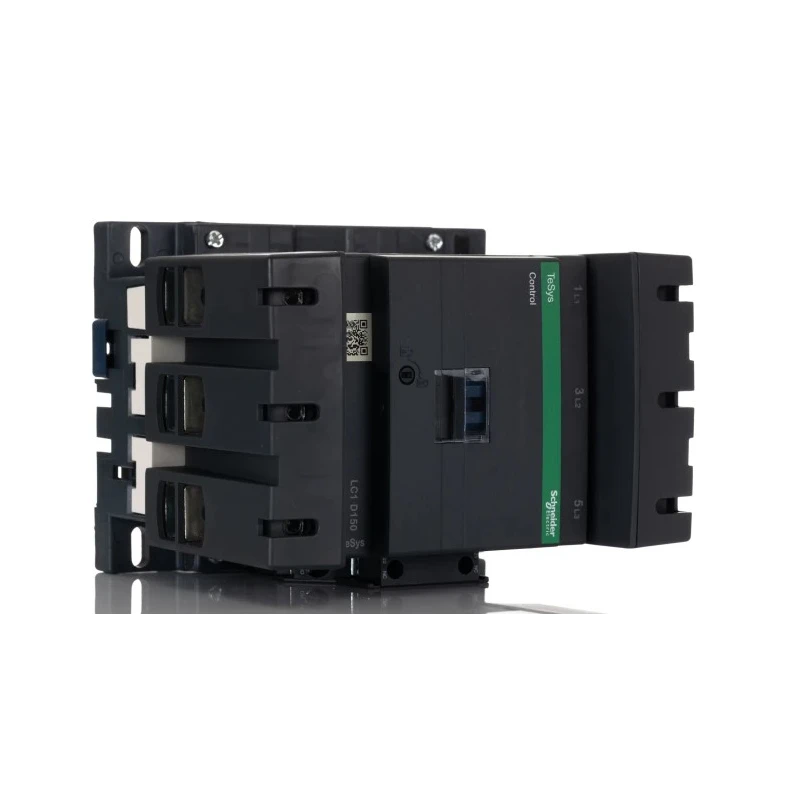

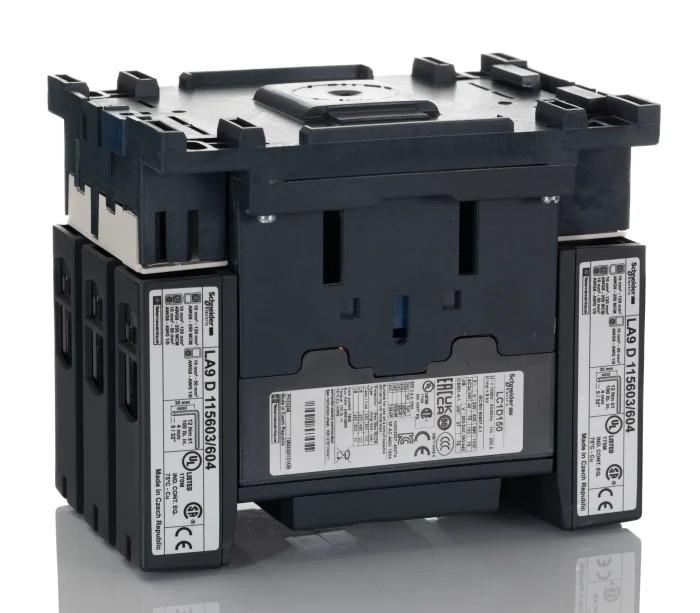

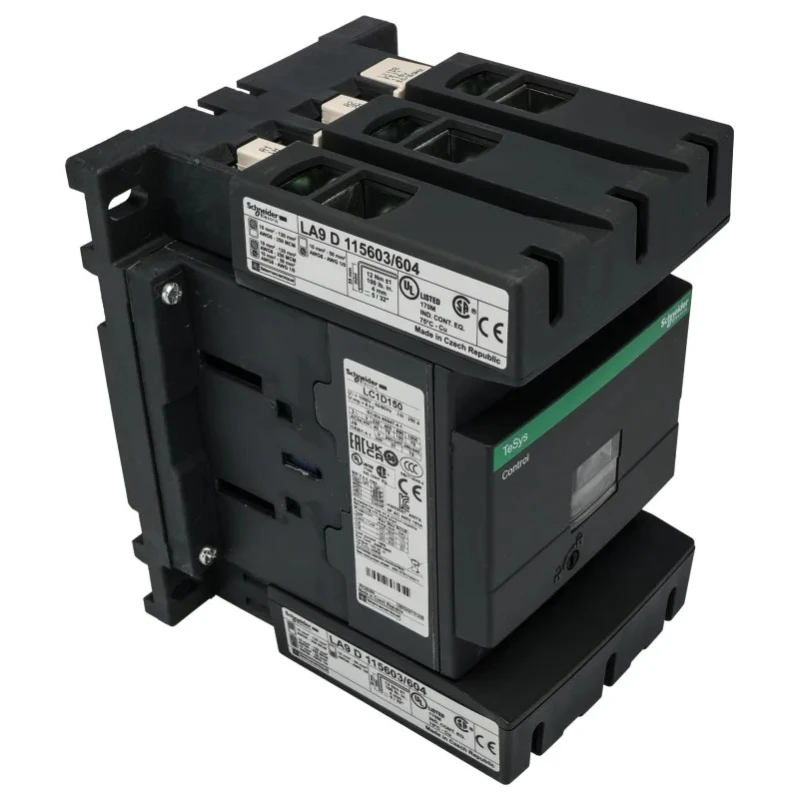

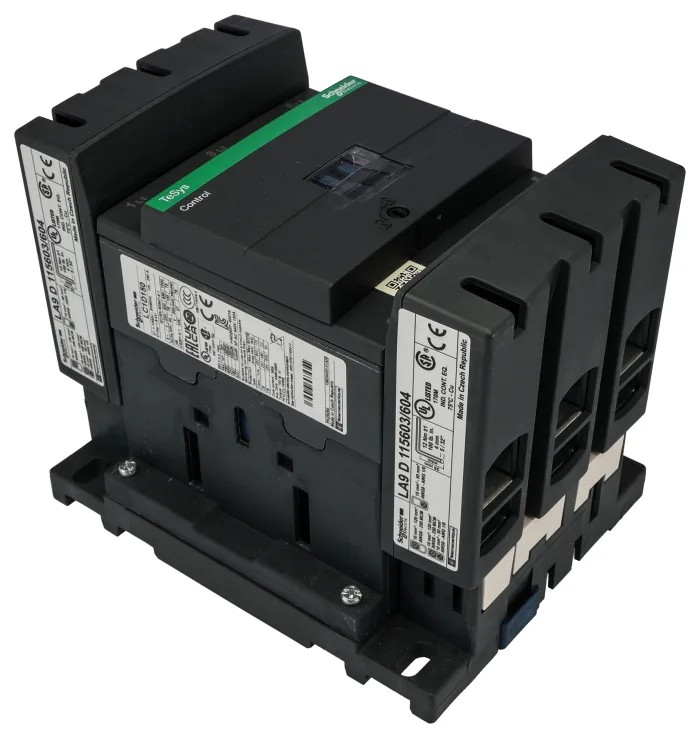

Schneider Electric LC1D300V Contactor 115V AC Coil, 3-Pole, 150 A, 80 kW Power Rating LC1D150FE7
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D150FE7 |
| Depth | 132mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 80kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, UL |
| Contact Voltage | 1kV ac |
| Coil Voltage | 115V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 150A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 150A |
| Control Circuit Voltage Uc | 115V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 115V AC coil and 3 NO main contacts.
- Supports contact voltage of 1 kV AC and operational current of 150 A.
- Includes 2 auxiliary contacts with 1 NO and 1 NC configuration.
- Built with IP20 finger-safe screw terminals and DIN rail mount option.
- Operates reliably within a temperature range of -5°C to 60°C.
- Complies with international standards including CCC, CSA, EAC, EN, IEC, RoHS, and UL.
- Offers fast switching performance with opening time of 40 - 75 ms and closing time of 20 - 35 ms.
- Designed with an impressive 8 kV impulse withstand voltage for surge protection.
Product Description
Schneider Electric LC1D150FE7 Contactor features a robust design with 115V AC coil voltage, 3-pole configuration, and a power rating of 80 kW. It is engineered for motor control and resistive load applications, providing reliable operation within -5°C to 60°C temperature range.
This contactor supports a contact voltage rating of 1 kV AC and a current of 150 A, making it suitable for demanding industrial environments. The three main contacts are normally open (3 NO), complemented by 2 auxiliary contacts configured as 1 NO and 1 NC.
Constructed for enhanced safety, the contactor includes IP20 rated finger-safe screw terminals with North American and international terminal markings. It mounts easily on DIN rails, enabling quick installation and integration into control systems. The device is capable of fast switching with opening times between 40 to 75 milliseconds and closing times between 20 to 35 milliseconds, supporting utilisation categories up to AC-4.
Its 8 kV impulse withstand voltage provides protection against electrical surges, safeguarding equipment and personnel. The contactor is compliant with multiple international standards such as CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, and UL, assuring quality and safety.
This Schneider Electric LC1D150FE7 is widely used in applications including factory automation, furnace control, mechanical engineering, motor starters, compressors, pumps, lifts, escalators, conveyors, mixers, and air conditioning units.
Features a 115V AC coil with 3-pole, 3 NO contacts for reliable circuit control. Includes 2 auxiliary contacts in 1 NO / 1 NC configuration for supplementary switching. Mounts easily on DIN rail with IP20 finger-safe screw terminals.
Designed for operation from -5°C to +60°C, suitable for harsh environments. Provides 8 kV impulse withstand voltage to handle electrical surges. Conforms to international safety and quality standards. Ideal for use in heavy-duty industrial motor control and resistive load applications.
Explore the wide range of Schneider Electric Contactors and automation products on EnvMart for reliable industrial electrical solutions.
