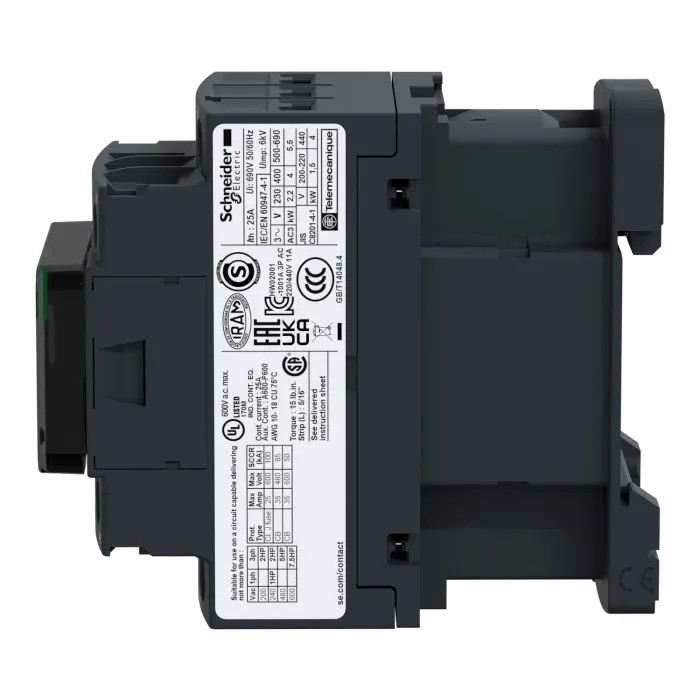

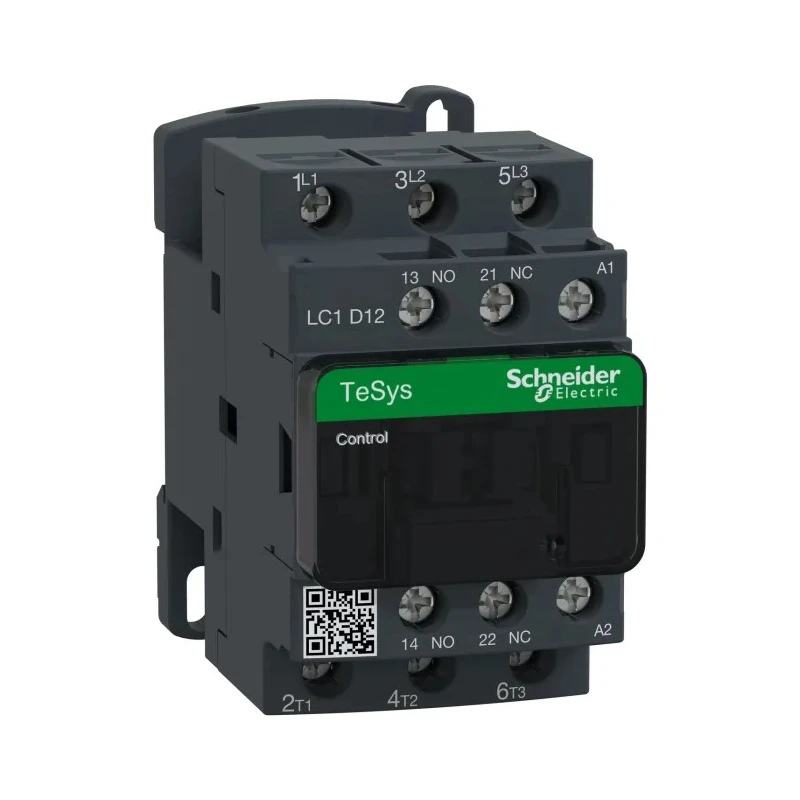

Schneider Electric Reversing Contactor 48V AC Coil, 3-Pole, 12A Current, 5.5 kW Power, 690V AC Contact Voltage LC1D
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Reversing |
| Length | 45mm |
| Model | LC1D |
| Depth | 84mm |
| Width | 77mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 48V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 48V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
Key Features
- Designed for robust motor control and resistive load operations.
- Features a 3-pole configuration with 3 normally open contacts.
- Reversing function enhances application flexibility.
- Screw terminal type ensures secure and easy installation.
- Operates effectively within a temperature range of -5°C to 60°C.
- Supports a maximum contact voltage of 690V AC for diverse power circuits.
- Includes 2 auxiliary contacts configured as 1 NO and 1 NC for additional control functions.
- Complies with multiple standards including CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, and UL.
Product Description
Schneider Electric LC1D12E7 reversing contactor is engineered for industrial automation and motor control systems. Featuring a 48V AC coil and a current rating of 12A, this device suits varied resistive and inductive load applications. The 3-pole design with 3 normally open contacts delivers reliable switching performance at contact voltages up to 690V AC.
Its robust construction allows operation in ambient temperatures ranging from -5°C to 60°C, while screw terminals facilitate straightforward wiring and maintenance. The contactor is designed for DIN rail mounting, optimizing space utilization in electrical control panels.
Auxiliary contacts (1 NO and 1 NC) provide enhanced functionality suitable for interlocking and monitoring circuits. With electrical durability rated at 2 million cycles under 12A AC-3 loads, it promises long service life and reduced downtime.
This contactor complies with key international standards including CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, and UL, reflecting its superior quality and safety credentials. Dimensions are compact at 45mm (length) x 77mm (width) x 84mm (depth), facilitating integration into various control setups.
Ideal for motor control in automation systems, this contactor efficiently manages reversing functions, making it suitable for industrial machinery, manufacturing processes, and HVAC equipment. Manufactured in France, the LC1D12E7 ensures both performance and reliability for demanding environments.
Designed for motor control and resistive load management. 3-pole reversing configuration with 3 normally open contacts. 48V AC coil voltage for consistent operation. 12A contact current rating supporting 5.5kW power loads.
Operation temperature range from -5°C to +60°C. Includes 2 auxiliary contacts with 1 NO and 1 NC configuration. Screw terminal connection type for ease of installation. DIN rail mountable for efficient panel space usage.
Meets multiple international standards for compliance. Explore further categories and Schneider Electric products at EnvMart for comprehensive industrial electrical solutions.
