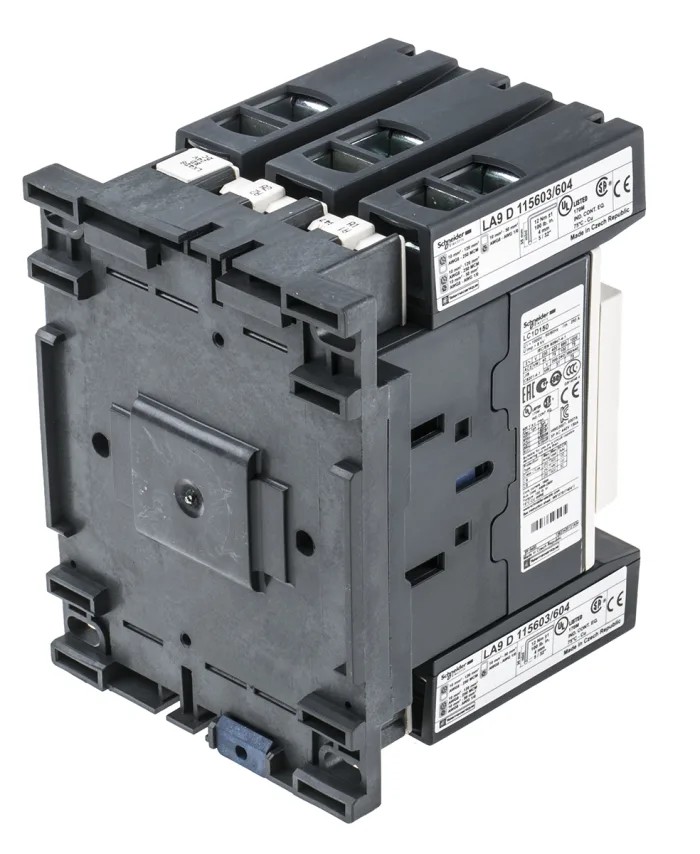

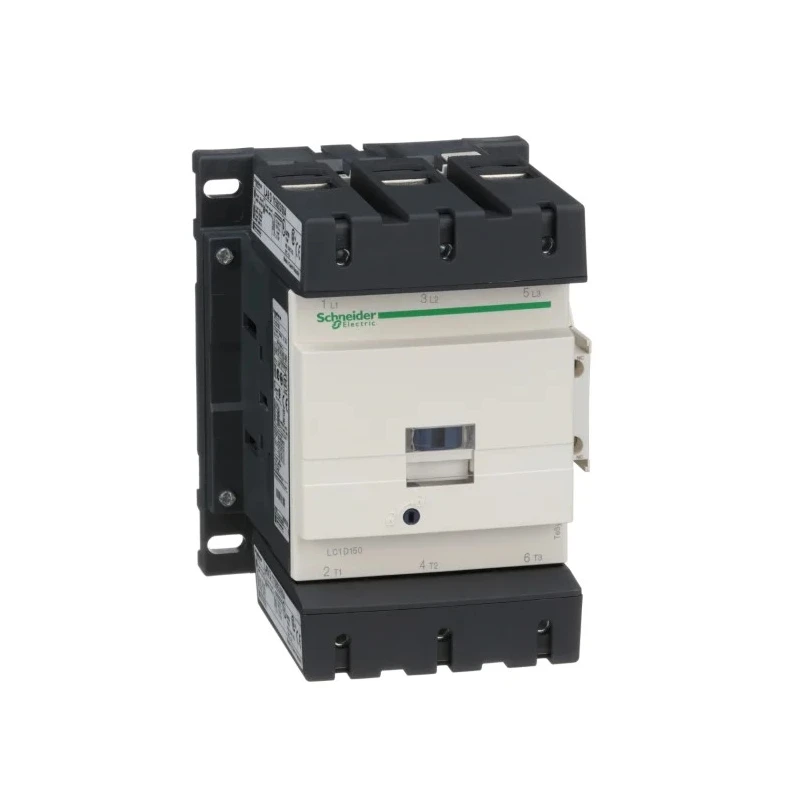

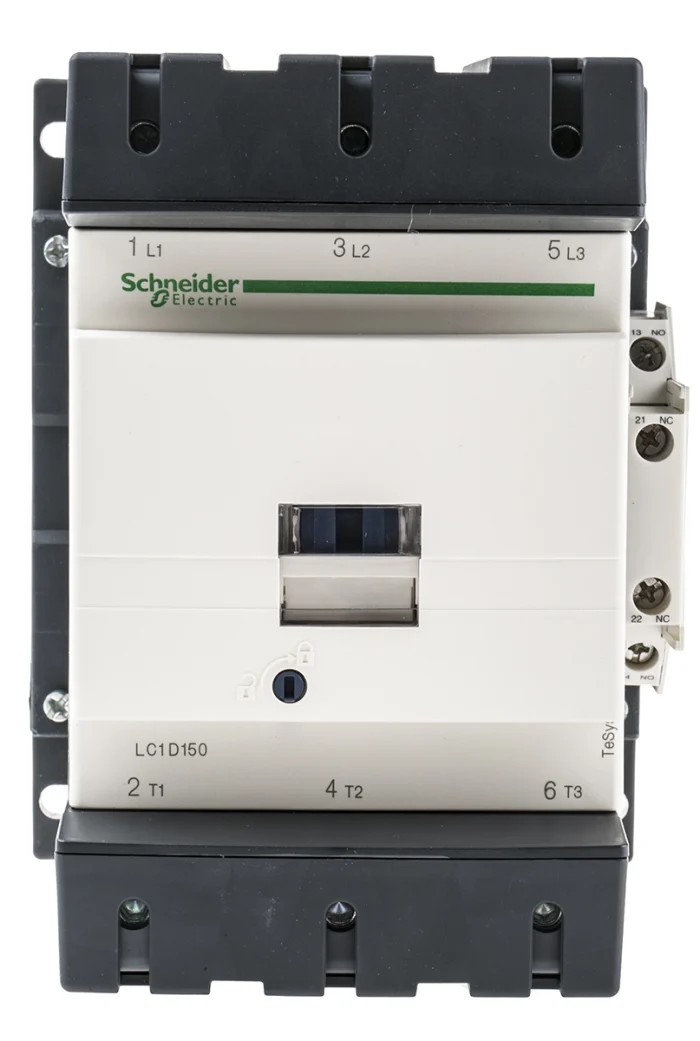

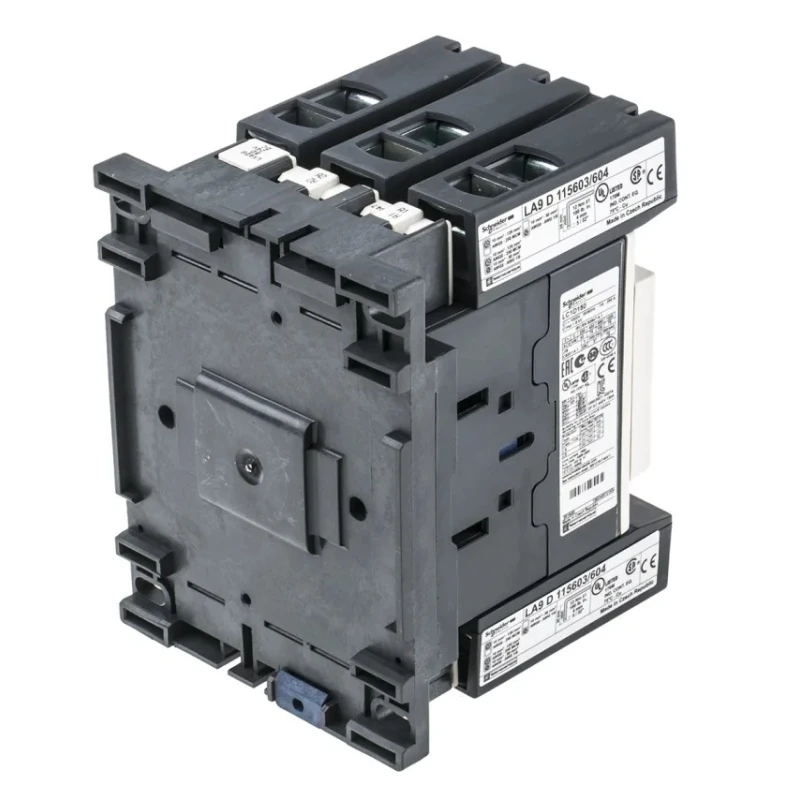

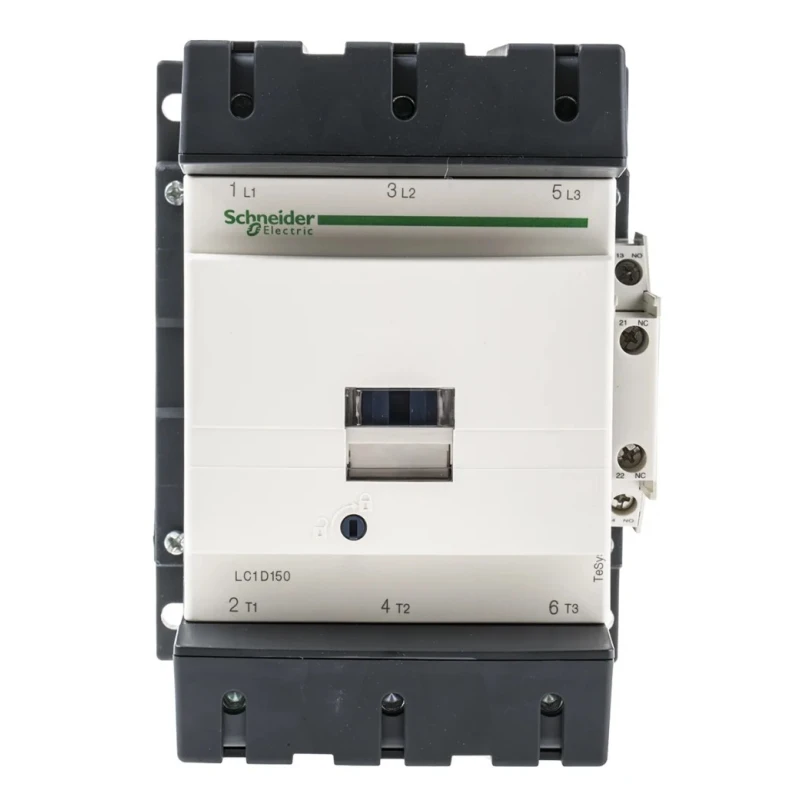

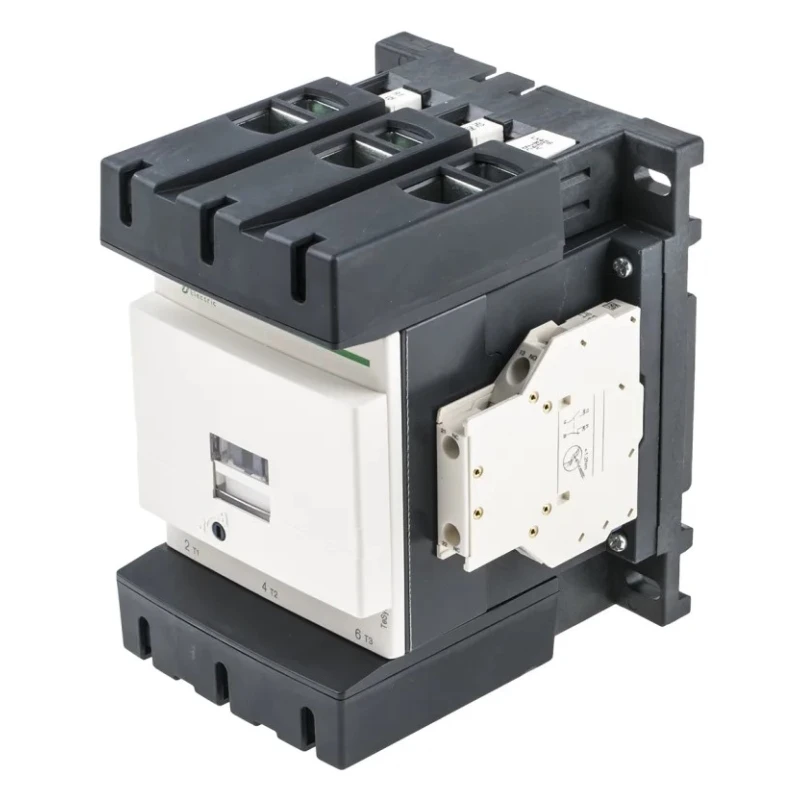

Schneider Electric LC1D Contactor, 24V DC Coil, 3-Pole, 150 A, 80 kW Power Rating, 3 NO Contact Configuration, 1kV LC1D150BD

Name: Schneider Electric LC1D Contactor, 24V DC Coil, 3-Pole, 150 A, 80 kW Power Rating, 3 NO Contact Configuration, 1kV LC1D150BD
Brand: Schneider Electric
SKU: 197831
Price: 960.06 USD
Availability: InStock



Category Contactors Brand Schneider Electric Condition New

Specifications

Country of Origin	Czech Republic
Brand	Schneider Electric
Function	Motor Control, Resistive Load
Length	158mm
Model	LC1D150BD
Depth	132mm
Width	120mm
Mount Type	DIN Rail
Series	LC1D
Power Rating	80kW
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-40°C
Terminal type	Screw
Number of Poles	3
Standards/Approvals	UL, RoHS, IEC, EN 60947-5-1, EAC, CSA, CCC
Contact Voltage	1kV ac
Coil Voltage	24V dc
Normal State Configuration	3 NO
Contact Current	150A
Number of Auxiliary Contacts	2
Auxiliary Contact Configuration	1 NO/1 NC
Operational Current Ie	150A
Control Circuit Voltage Uc	24V dc
Contactor Application	Resistive Load, Motor Control
Pole and Throw Configuration	3

Key Features

Operates with a coil voltage of 24V DC.
Equipped with 3 normally open (NO) contacts for reliable switching.
Designed for contact current up to 150 amperes.
Supports control circuit voltage of 24V DC with screw terminal connections.
Mounting type is DIN Rail for easy installation.
Suitable for resistive load and motor control functions.
Operates within a temperature range of -40°C to +60°C for demanding environments.
Compact dimensions of 158mm length, 120mm width, and 132mm depth.

Product Description

Schneider Electric LC1D150BD contactor is engineered for robust motor control and resistive load applications, featuring a 24V DC coil voltage and 3-pole configuration capable of handling 150A current and 80kW power.

This contactor is part of the LC1D series and presents a compact design with dimensions of 158mm length, 120mm width, and 132mm depth, facilitating space-saving installation on DIN rail mounts.

Designed to operate reliably within a wide temperature range of -40°C to 60°C, it withstands harsh industrial conditions such as automation processes, elevator conveying systems, and industrial heating and cooling applications.

The device includes 3 normally open (NO) contacts and 2 auxiliary contacts configured as 1 NO and 1 NC, providing flexible control options. Screw type terminals ensure secure electrical connections, and an integral suppression device protects the coil against surges, enhancing longevity.

The LC1D150BD offers operational stability with opening and closing times unaffected by voltage fluctuations, ensuring reliable switching between 20ms and 75ms. It complies with major standards including UL, RoHS, IEC, EN 60947-5-1, EAC, CSA, and CCC, affirming its quality and safety for industrial usage.

Operates with a coil voltage of 24V DC. Equipped with 3 normally open (NO) contacts for reliable switching. Designed for contact current up to 150 amperes. Supports control circuit voltage of 24V DC with screw terminal connections.

Mounting type is DIN Rail for easy installation. Suitable for resistive load and motor control functions. Operates within a temperature range of -40°C to +60°C for demanding environments. Compact dimensions of 158mm length, 120mm width, and 132mm depth.

Complies with UL, RoHS, IEC, EN 60947-5-1, EAC, CSA, and CCC standards.

The Schneider Electric LC1D150BD is an ideal choice for industrial automation and control tasks, offering durability, energy efficiency, and compliance with environmental safety standards. Explore more products within the Automation & Control Gear category on EnvMart.
