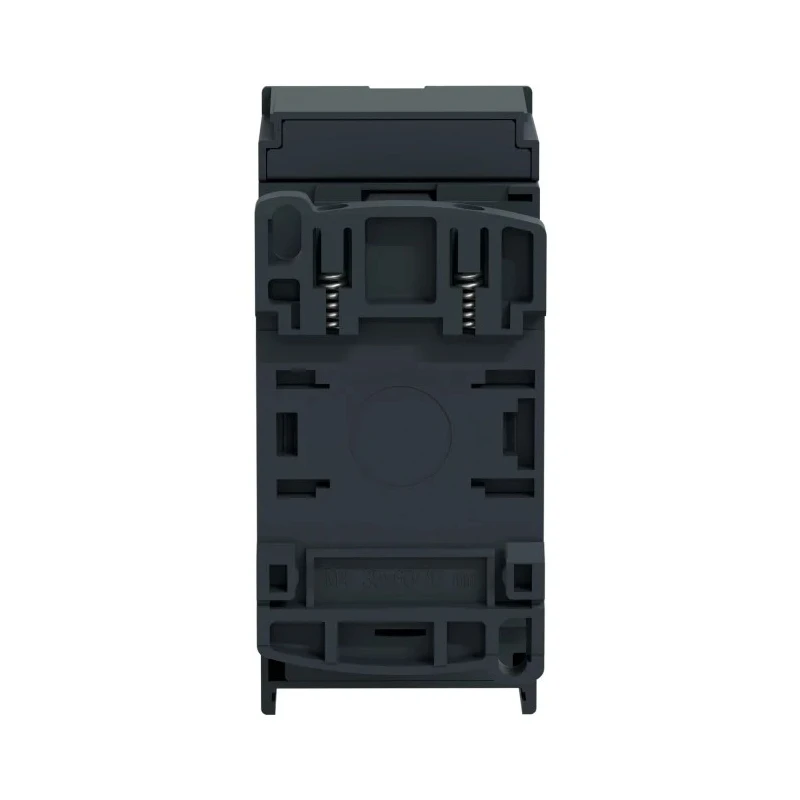

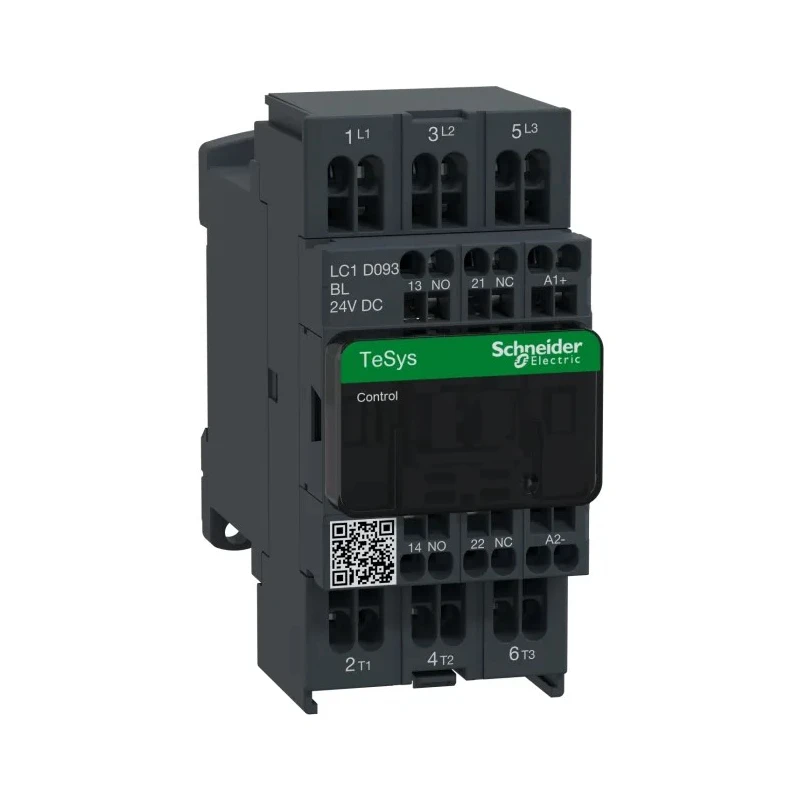

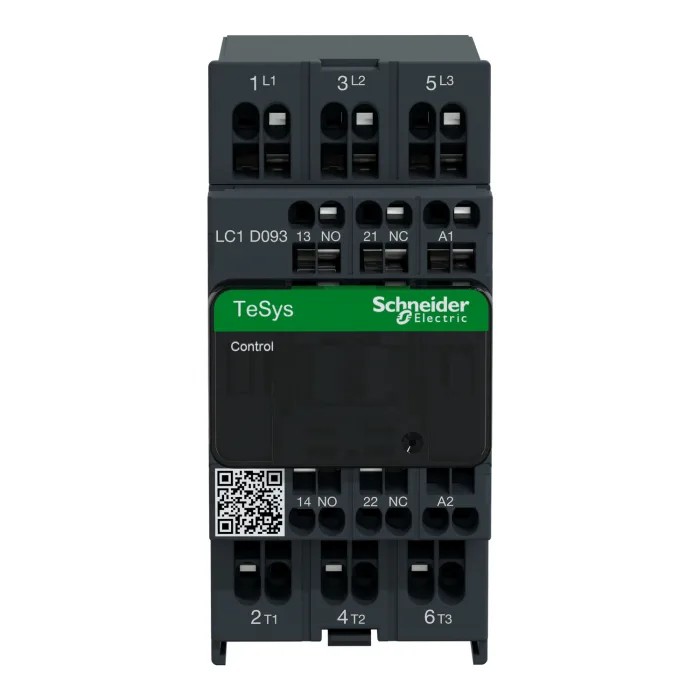

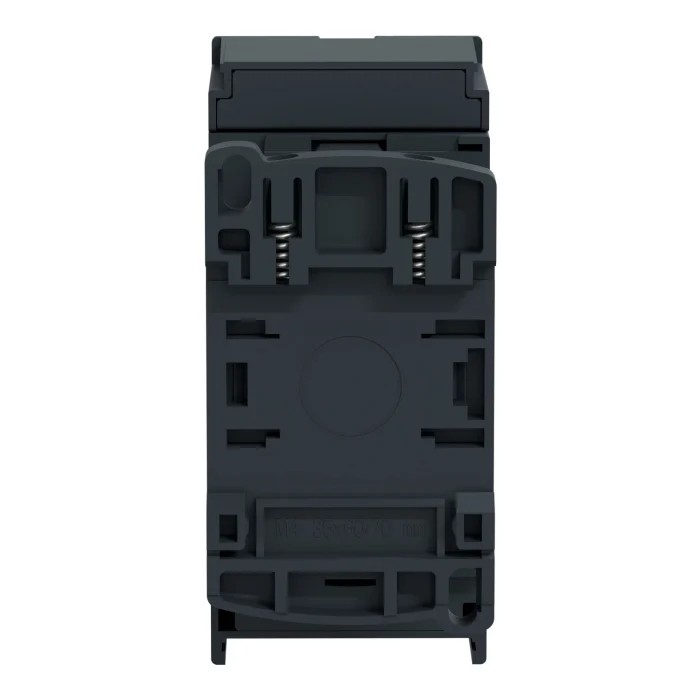

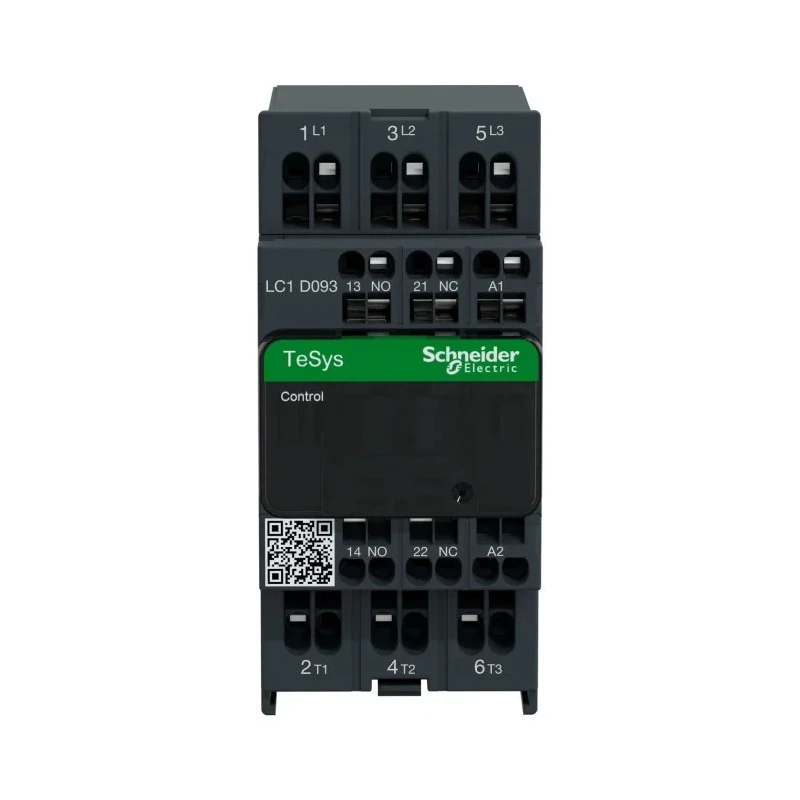

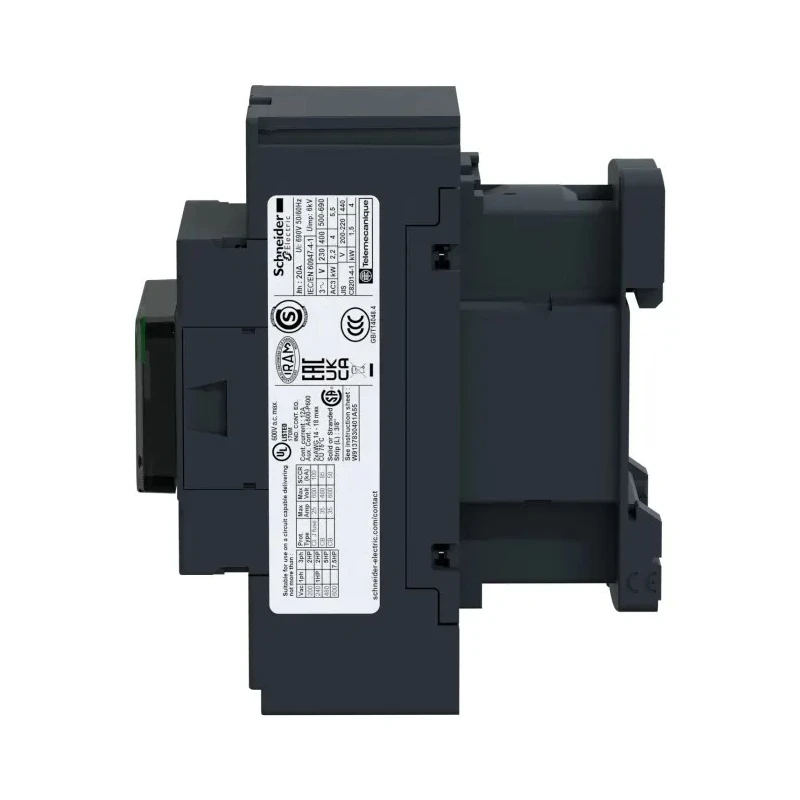

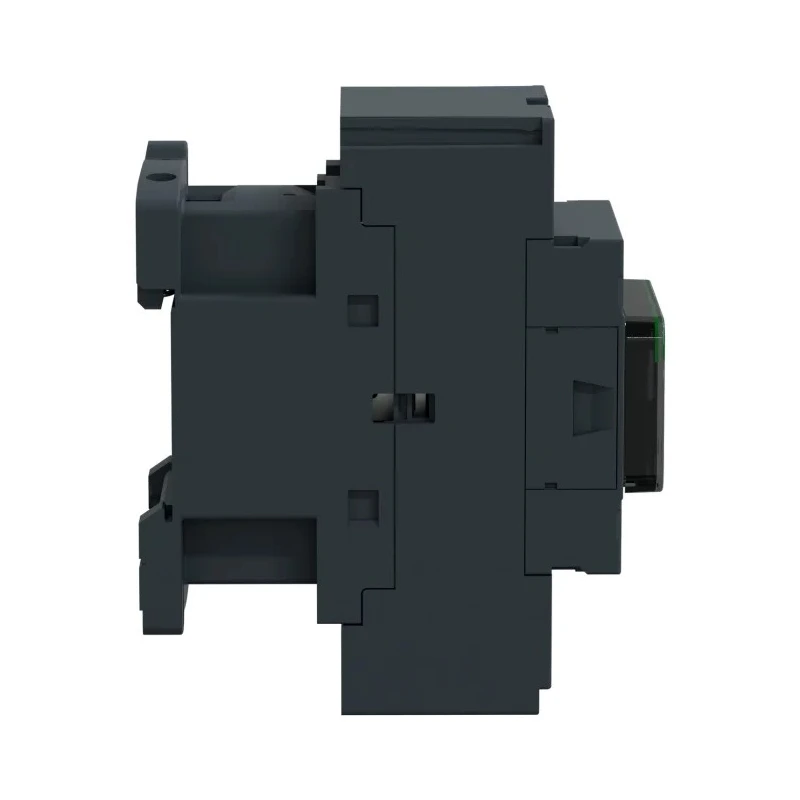

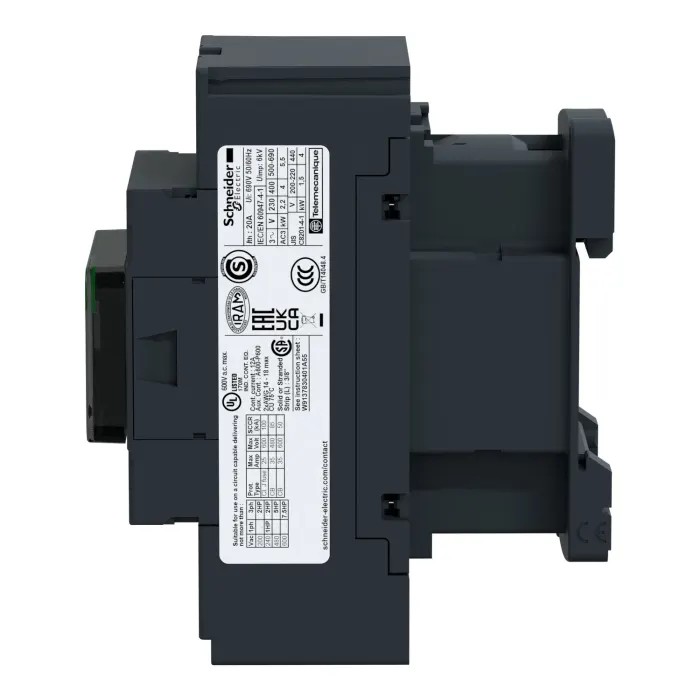

Schneider Electric Reversing Contactor 24V DC Coil, 3-Pole, 9A, 4kW Power Rating LC1D
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Reversing |
| Length | 45mm |
| Model | LC1D |
| Depth | 84mm |
| Width | 99mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Cage Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, EN 60947-5-1, IEC, UL, RoHS |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
Key Features
- Equipped with a 24V DC low consumption coil for efficient operation.
- Rated contact current of 9A and power rating of 4kW.
- Designed for DIN rail mounting for easy installation.
- Includes two auxiliary contacts configured as 1 NO and 1 NC for versatile circuitry.
- Operates reliably with contact voltage up to 690V AC.
- Triple pole design ensures enhanced operational reliability.
- Built-in peak limiting diode increases durability.
- Functions efficiently in the temperature range from -5°C to 60°C.
Product Description
Schneider Electric LC1D093BL reversing contactor featuring a 24V DC coil voltage and a 3-pole configuration designed for reliable motor control and resistive load management. This contactor is rated for a contact current of 9 amperes and a power rating of 4 kilowatts, making it ideal for a broad range of electrical installations requiring efficient and robust switching capabilities.
The device is engineered for easy installation with a DIN rail mount type and incorporates two auxiliary contacts (1 normally open and 1 normally closed) enabling flexible circuit configurations for various industrial automation requirements. A built-in peak limiting diode enhances the operational durability of the contactor, ensuring consistent performance.
It supports contact voltages up to 690 volts AC and operates within a temperature range from -5°C to +60°C, ensuring adaptability across different environmental conditions. Compact in size - measuring 45mm in length, 99mm in width, and 84mm in depth - this contactor facilitates space-saving installations in control panels.
Applications include motor switching, resistive load control, industrial automation systems, and building management control systems. Its triple pole design boosts operational reliability and durability, suitable for demanding industrial and commercial environments.
Equipped with a 24V DC low power coil for efficient energy consumption. Reversing function suitable for diverse control gear needs. Two auxiliary contacts for circuit flexibility. Designed for DIN rail mounting to simplify panel integration.
Robust construction with compliance to international standards including CCC, CSA, EAC, EN 60947-5-1, IEC, UL, and RoHS. Compact form factor aids in optimized control cabinet space usage.
Schneider Electric products are designed to deliver efficiency, sustainability, and advanced control, making this contactor an essential component in automated electrical systems. Explore further Schneider Electric solutions in the Automation & Control Gear category for enhanced industrial performance on EnvMart.
Explore more products in our Contactors category.
