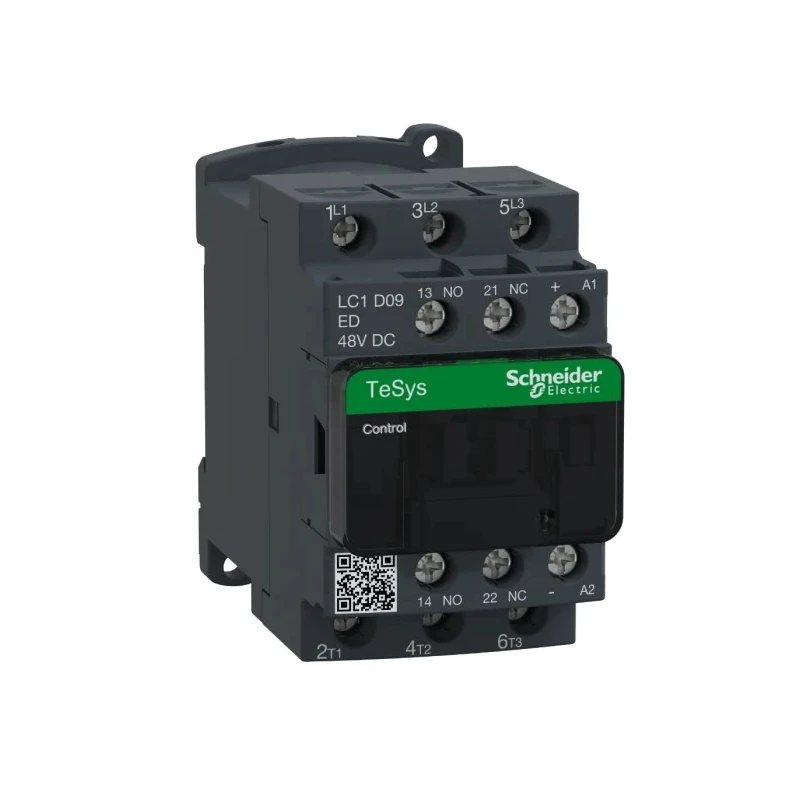

Schneider Electric LC1D Contactor 3-Pole, 48V DC Coil, 9A, 4 kW, 690V AC LC1D09ED
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D09ED |
| Depth | 93mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, RoHS, IEC, EN 60947-5-1, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 48V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 48V dc |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 48V DC coil for efficient operation.
- Features 3 poles with a contact voltage of 690V AC.
- Supports a contact current of 9 amperes and power rating of 4 kilowatts.
- Supplied with 1 normally open (NO) and 1 normally closed (NC) auxiliary contact configuration.
- Mounts easily on DIN rails using screw terminals.
- Operates reliably within a temperature range of -5°C to 60°C.
- Designed for use in motor control and resistive load applications.
- Complies with UL, RoHS, IEC, EN 60947-5-1, EAC, CSA, and CCC standards.
Product Description
Schneider Electric LC1D09ED Contactor is a high-quality, reliable 3-pole contactor with a 48V DC coil, designed for motor control and resistive load switching. It supports a contact voltage of 690V AC and a contact current of 9A, with a power rating of 4kW, suitable for various industrial and automation applications.
The device features one normally open (NO) and one normally closed (NC) auxiliary contact, providing flexible control options. It is mounted on DIN rails using screw terminals for quick and secure installation. The contactor operates efficiently within a temperature range from -5°C to 60°C, ensuring stability under diverse environmental conditions.
This Contactor complies with multiple international standards including UL, RoHS, IEC, EN 60947-5-1, EAC, CSA, and CCC, highlighting its safety and environmental conformity. Schneider Electric has designed the LC1D range for long mechanical and electrical life, delivering dependable performance in demanding industrial environments.
It is commonly applied in motor control circuits and resistive load switching setups in industrial automation, manufacturing plants, HVAC systems, and electrical installations. The compact size (45mm width, 77mm length, 93mm depth) allows easy panel integration while ensuring robust operation.
Equipped with a 48V DC coil delivering efficient electrical control. 3 NO poles ensure reliable switching of phase currents. Includes 1 NO and 1 NC auxiliary contact for versatile control circuitry. Compliant with several international standards for safety and quality.
Suitable for resistive loads and motor control applications. Compact DIN rail mount design with screw terminals simplifies installation. Operates reliably across a wide temperature range of -5°C to 60°C. Designed with sustainability in mind, featuring Easy Disassembly for recycling.
Manufactured in France, ensuring European quality standards. Explore Schneider Electric products with assured quality and efficiency in the Automation & Control Gear category through EnvMart.
