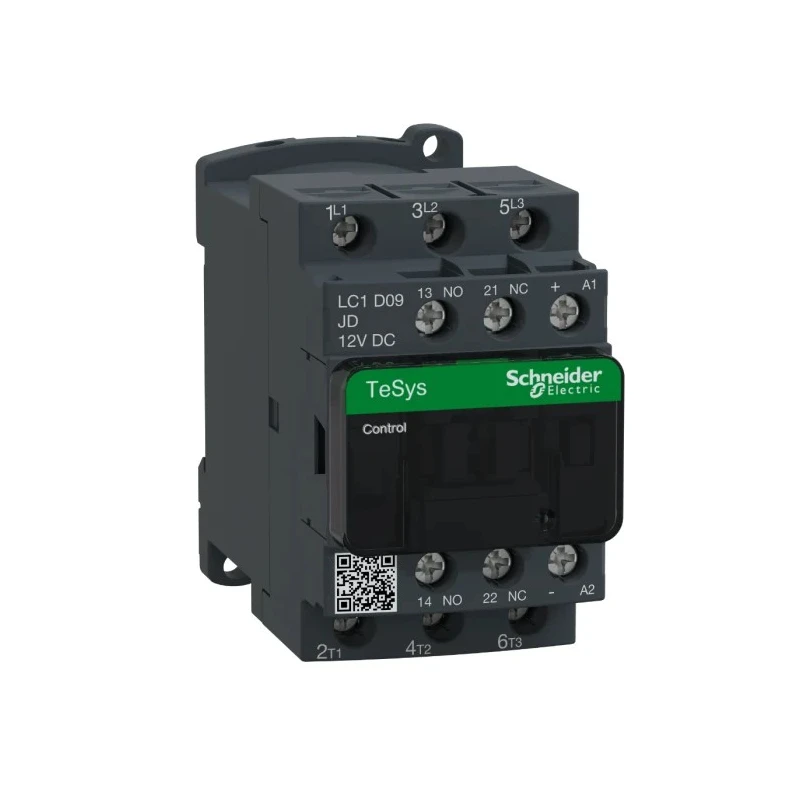

Schneider Electric LC1D 3-Pole Contactor, 12V DC Coil, 9A, 4 kW, 3 NO, 690V AC LC1D09JD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D09JD |
| Depth | 93mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, RoHS, IEC, EN 60947-5-1, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 12V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 12V dc |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive load applications.
- Equipped with 3 normally open (NO) poles for reliable switching.
- Includes 1 normally open and 1 normally closed auxiliary contact configuration.
- Compact DIN rail mount for easy installation.
- Suitable for operating temperatures ranging from -5°C to 60°C.
- High operational current rating of 9A ensures durability and performance.
- Constructed to meet international standards including UL, RoHS, IEC, EN 60947-5-1, EAC, CSA, and CCC.
- Includes screw-type terminals for secure wiring connections.
Product Description
Schneider Electric LC1D09JD is a 3-pole contactor designed with a 12V DC coil, supporting 9A contact current and 4 kW power ratings at 690V AC. This contactor is suitable for motor control and resistive load applications, offering excellent mechanical and electrical reliability, ensuring long service life.
It features three normally open (NO) poles, accompanied by an auxiliary contact configuration of 1 NO and 1 NC contact, enhancing its functional versatility for complex control circuits. The device is mounted easily on DIN rails, allowing swift installation and integration into industrial control panels.
Constructed to operate efficiently across a temperature range from -5°C to 60°C, this contactor complies with multiple global certifications and standards including UL, RoHS, IEC, EN 60947-5-1, EAC, CSA, and CCC, affirming its quality and safety benchmarks.
Dimensions in millimeters are 77 (length) x 45 (width) x 93 (depth), making the unit compact for varied industrial setups. The screw terminal design facilitates reliable and secure electrical connections.
This Schneider Electric contactor is part of the LC1D series, designed for applications involving motor control and resistive loading, supporting operational currents up to 9A and a control coil voltage of 12V DC. Its robust construction and conformity to international standards make it suitable for industrial, manufacturing, HVAC, and electrical automation applications.
Designed for motor control and resistive load applications. Three normally open contact poles ensure reliable circuit switching. Auxiliary contacts with 1 NO and 1 NC configuration for versatile control options. Compact and robust DIN rail mounting for industrial environments.
Wide operational temperature range from -5°C to 60°C. Certified to UL, RoHS, IEC, EN 60947-5-1, EAC, CSA, and CCC standards. Screw terminal connections facilitate secure wiring. Compact dimensions support efficient space use in control panels.
